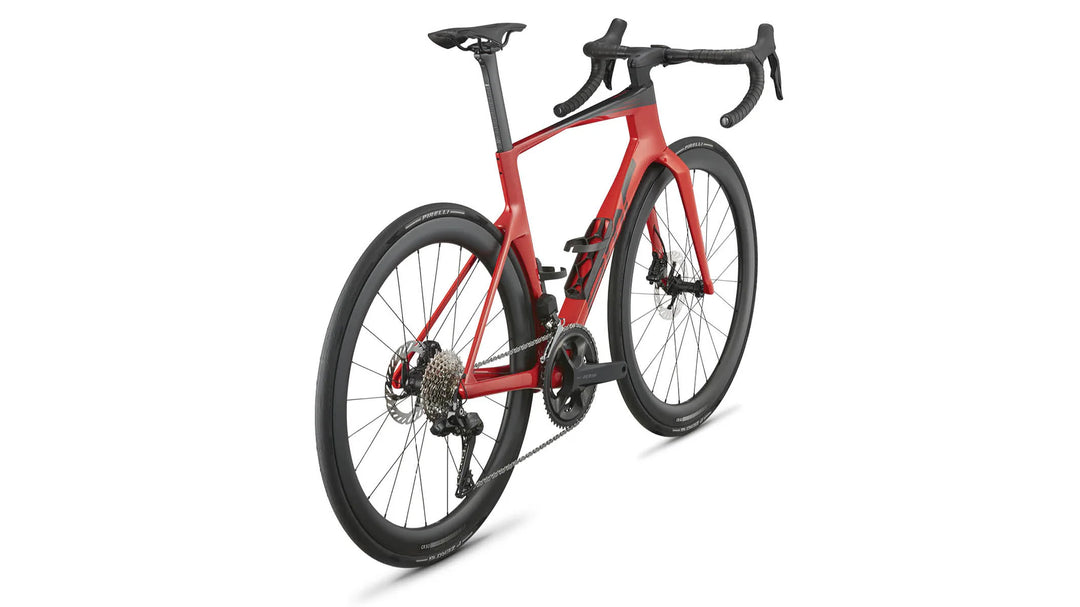

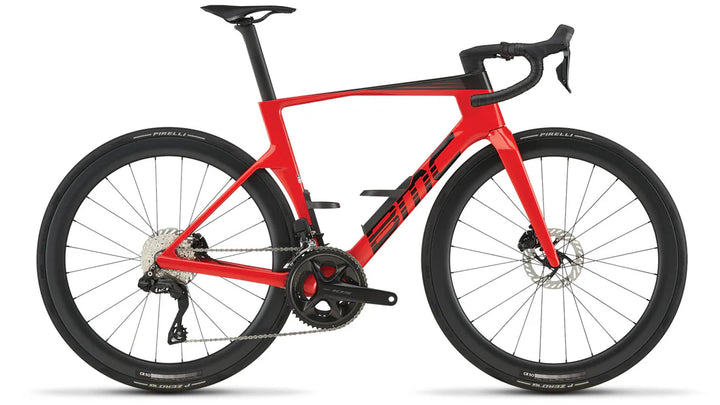

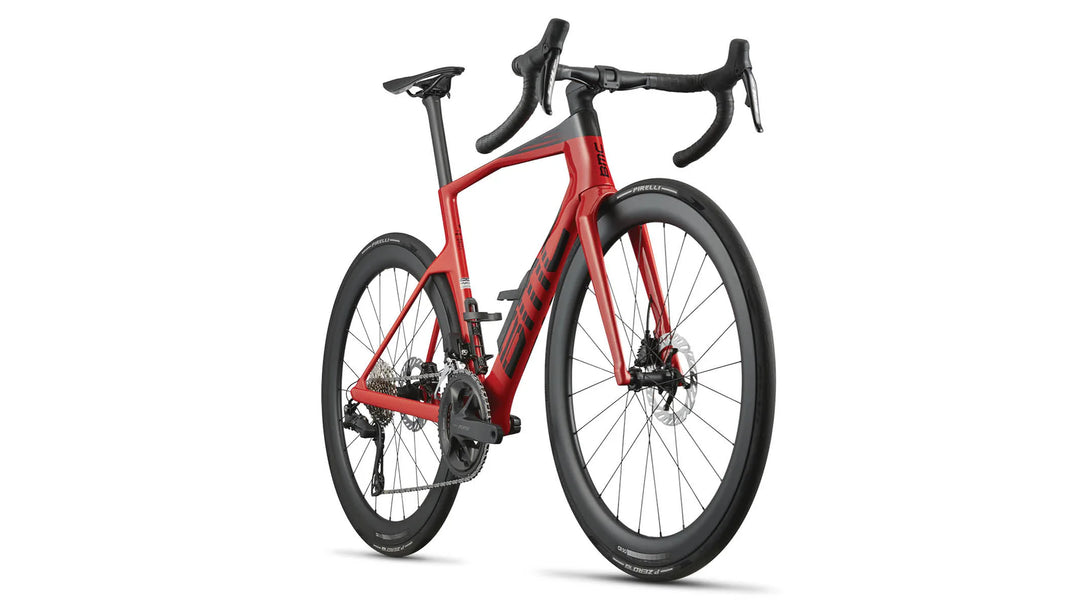

BMC Teammachine R 01 FIVE Road Build
The Teammachine R 01 FIVE is an elite platform designed with Red Bull Advanced Technologies that redefines racing.

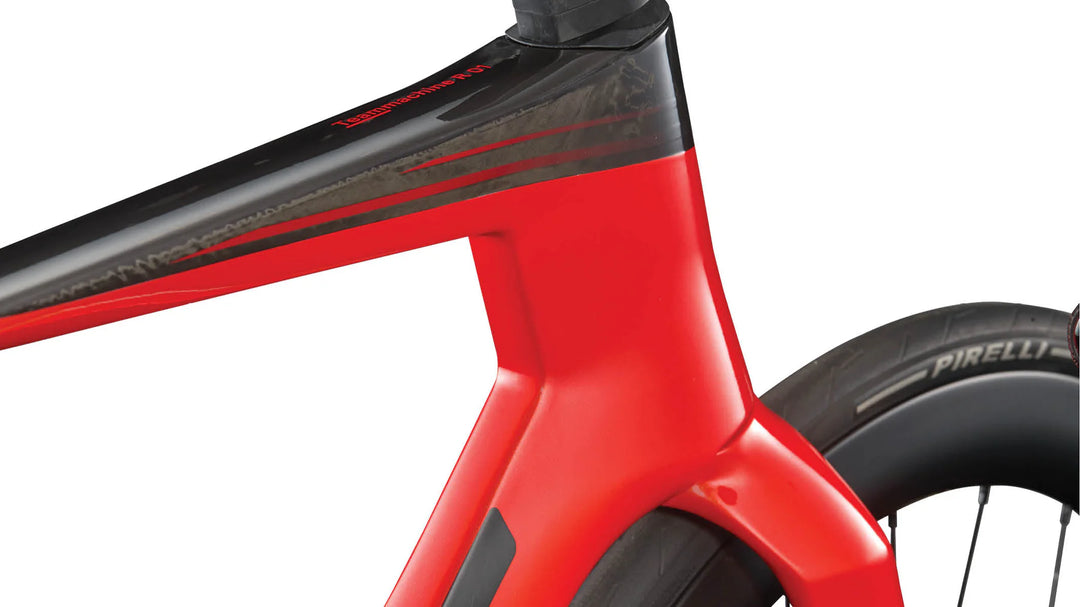

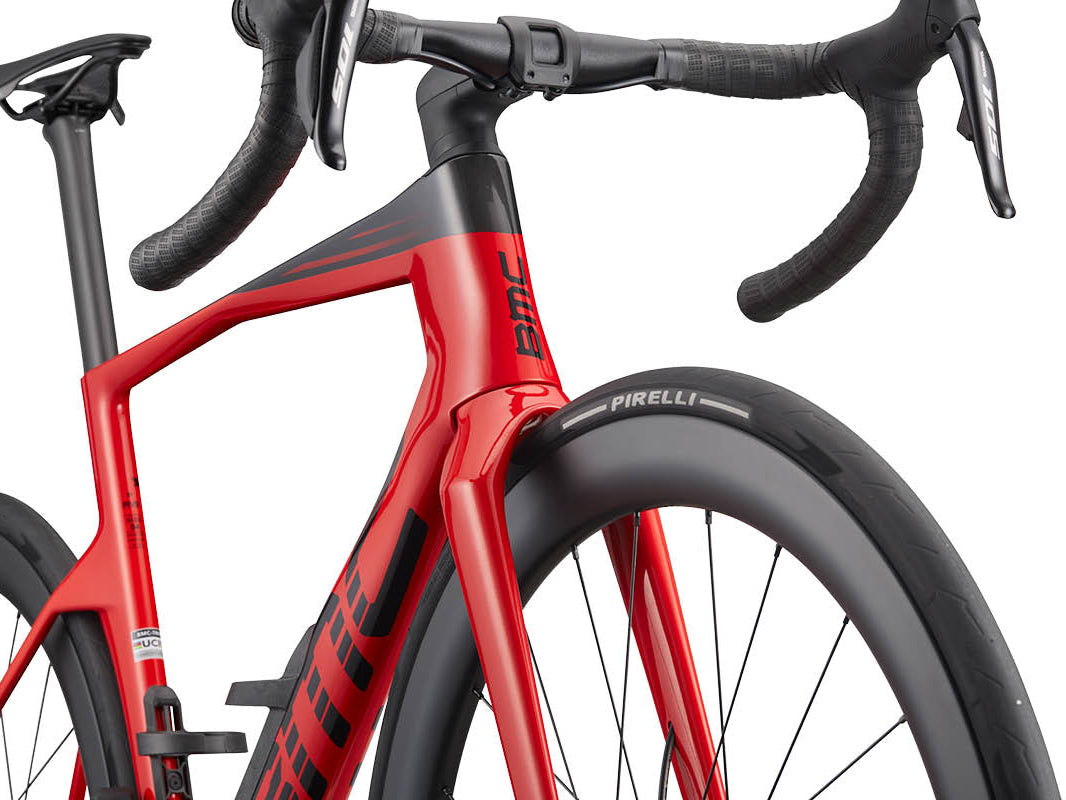

Elite race engineering? The Halo fork? 01 Premium Carbon? The Teammachine R 01 FIVE has it all. Developed in collaboration with Red Bull Advanced Technologies, it’s the fastest road bike to come out of BMC to date and exists to give you the same aerodynamic advantage our pros rely on – every time you ride. Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. Reliable shifting and braking come from Shimano’s 105 Di2 groupset. The ICS 2 stem and HB D4 bars, which form an adjustable, integrated cockpit join the CR 50 Carbon tubeless-ready wheels to complete a system designed to hold speed when it matters most. And then there’s the front end. The wide-stance fork isn’t just fast – it’s unmistakable. By calming turbulence and stabilizing airflow around the wheel, it gives your Teammachine R 01 FIVE an aerodynamic advantage visible from a distance and undeniable on the road.
Frameset
Frame:

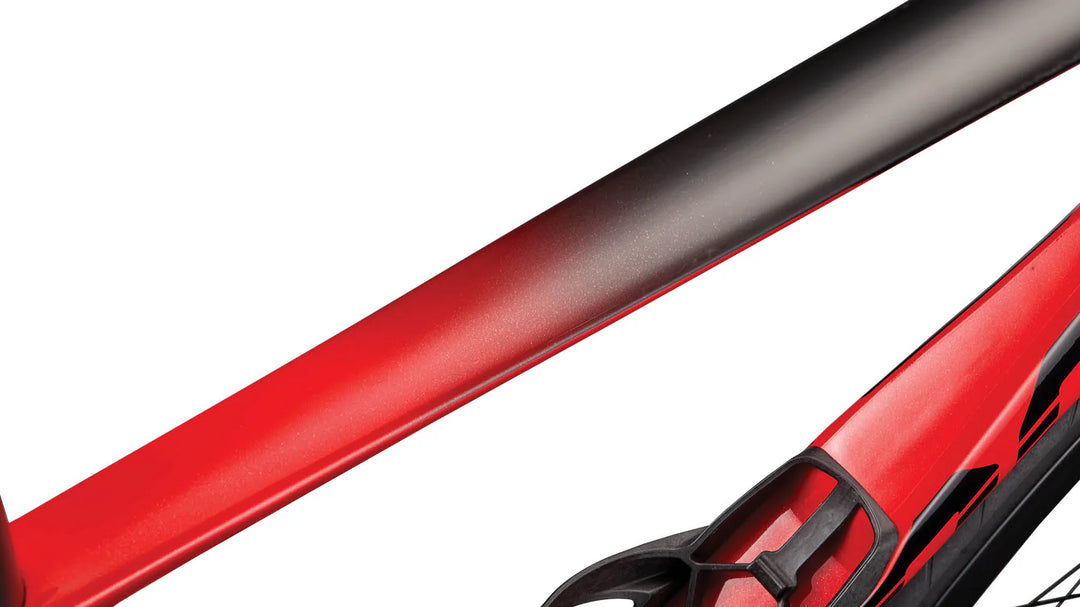

Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:

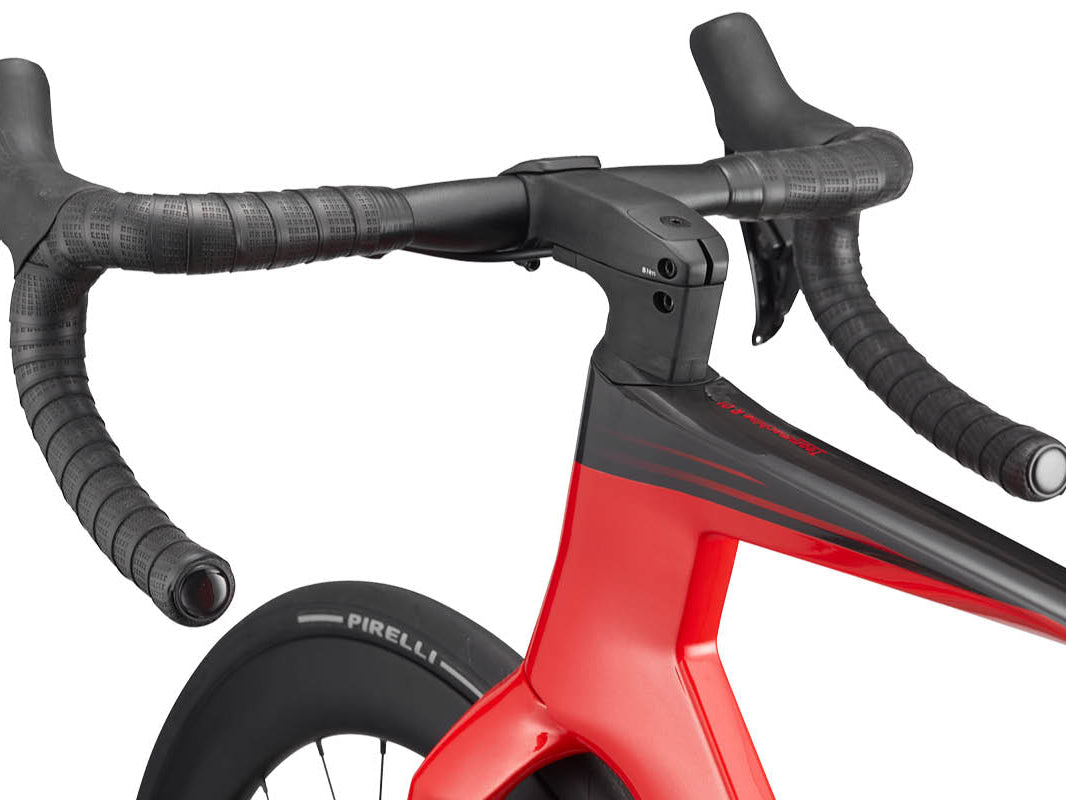

BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:

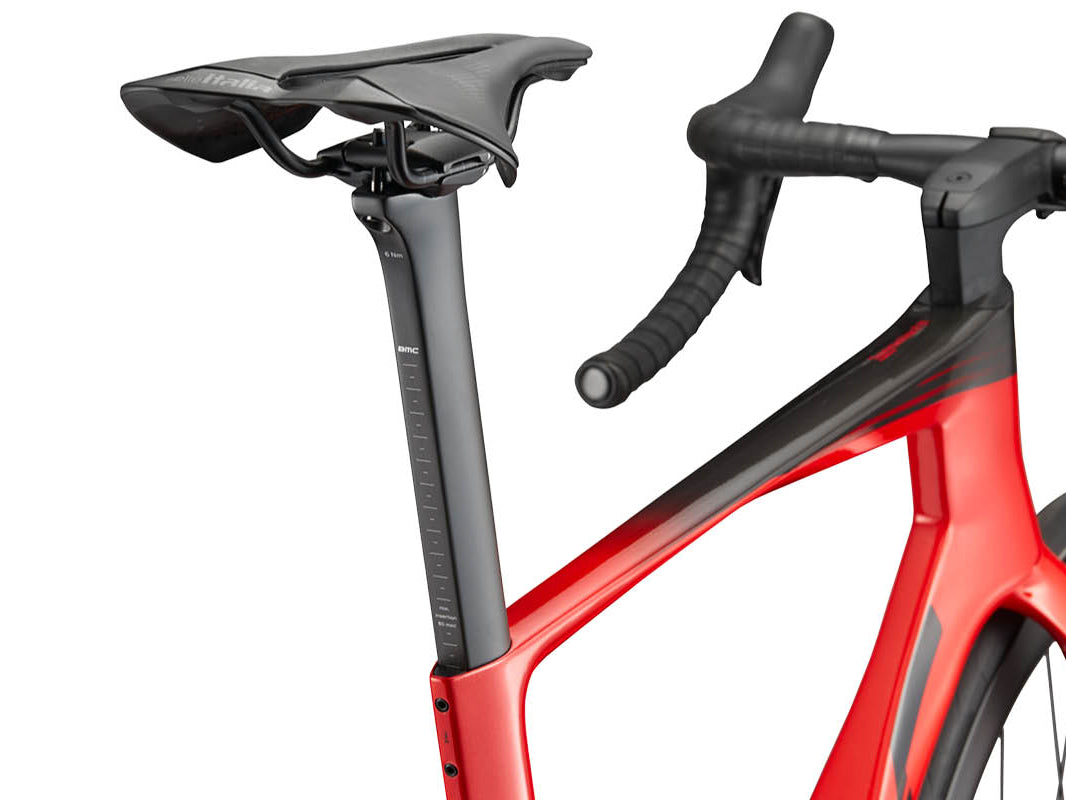

Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Selle Italia SLR Advan | Tubular Steel Rails | 145mm
Drivetrain
Crankset:
SHIMANO 105 (FC-R7100)
Chainrings:
52-36T
Cassette:
SHIMANO (CS-HG710)
Cassette Size:
11-36T
Chain:
SHIMANO CN-M6100
Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)
Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)
Shifters:
SHIMANO 105 Di2 (ST-R7170)
Gears:
2 x 12

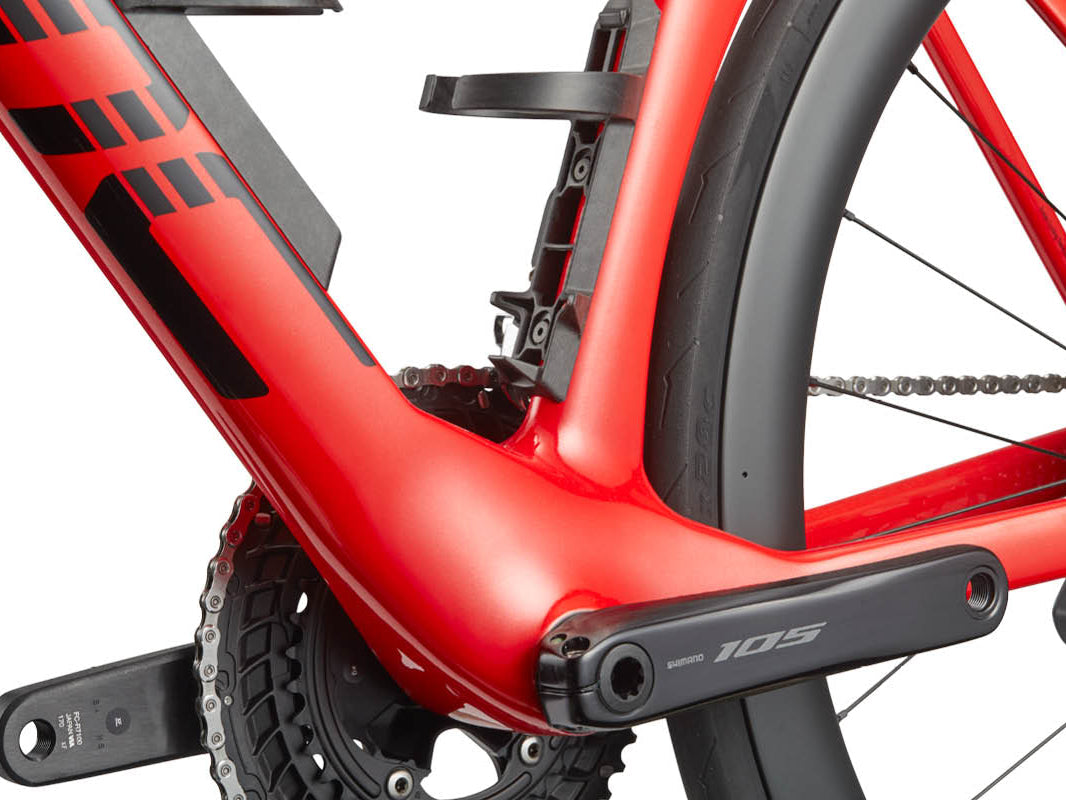

Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)
Rotors:
SHIMANO 105 (RT-CL700)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 50 Carbon | Tubeless Ready | 50mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
8.0kg | Size 54 as pictured with all accessories
System Weight Limit:
110kg
Sizes and fit
Frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. Seatpost offset varies with frame size: 0mm offset on sizes 47-51 and 10mm offset on sizes 54-61.
Colours
Available in 2027 Metallic Red / Carbon.
Materials and construction
- Frame: Teammachine R 01 in 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle.
- Fork: Teammachine R 01 in 01 Premium Carbon, flat mount disc, 12 x 100mm thru-axle.
- Cockpit: BMC ICS2 stem with BMC HB D4 03 alloy 6061 handlebar (135mm drop, 70mm reach, 6° flare).
- Seatpost: Teammachine R 01 01 Premium Carbon; Selle Italia SLR Advan saddle on tubular steel rails, 145mm.
- Groupset: Shimano 105 Di2, 2 x 12 speed, 52-36T chainrings and 11-36T cassette.
- Wheelset: CR 50 Carbon tubeless-ready rims, 50mm depth, with Pirelli P Zero Race TLR 28mm tubeless tyres.
- Tyre clearance 30mm measured tyre; system weight limit 110kg.
- Claimed weight 8.0kg without pedals, size 54 as pictured with all accessories.
- In the box: Aerocore bottle cages, high and low ICS top cones, 3x10mm spacers, 2x3mm spacers.
