BMC Teammachine SLR 01 FOUR Road Build
Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo R5 | 140mm
Drivetrain
Crankset:
SHIMANO Dura Ace (FC-R9200)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Dura Ace (CS-R9200)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M9100
Front Derailleur:
SHIMANO Dura Ace Di2 (FD-R9250)
Rear Derailleur:
SHIMANO Dura Ace Di2 (RD-R9250)
Shifters:
SHIMANO Dura Ace Di2 (ST-R9270)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Dura Ace (BR-R9270)
Rotors:
SHIMANO Dura Ace (RT-CL900)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 40 SL Carbon | Tubeless Ready | 40mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:

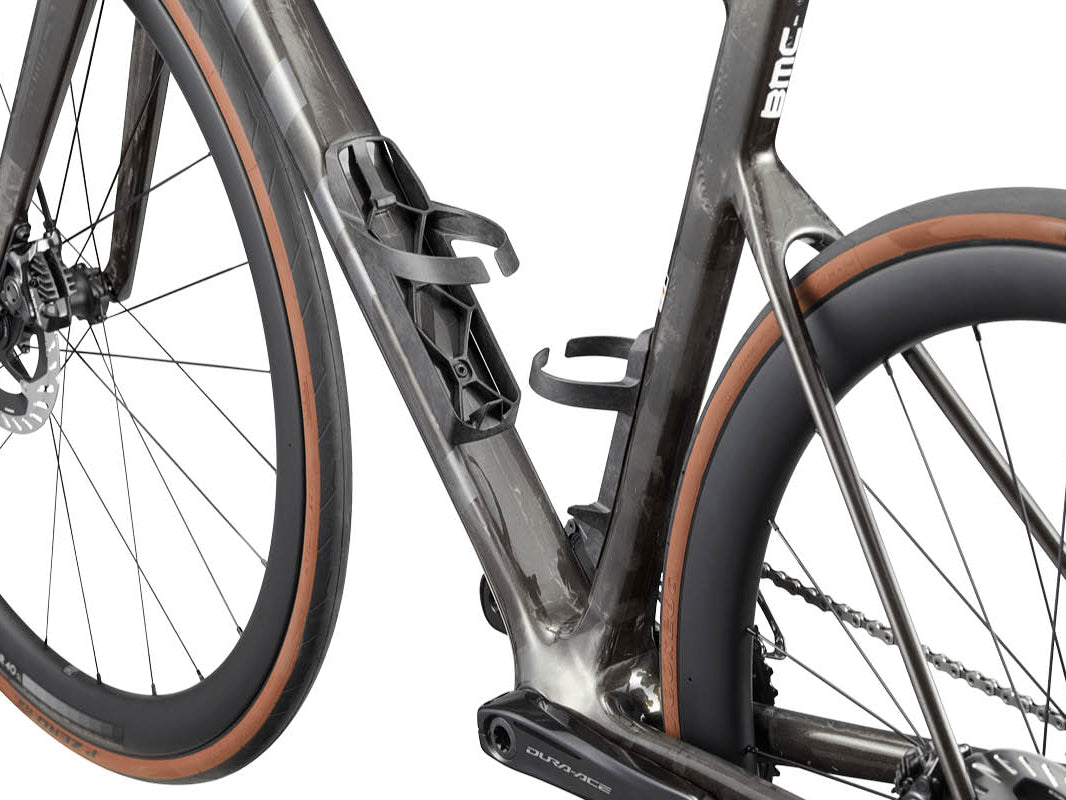

Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:

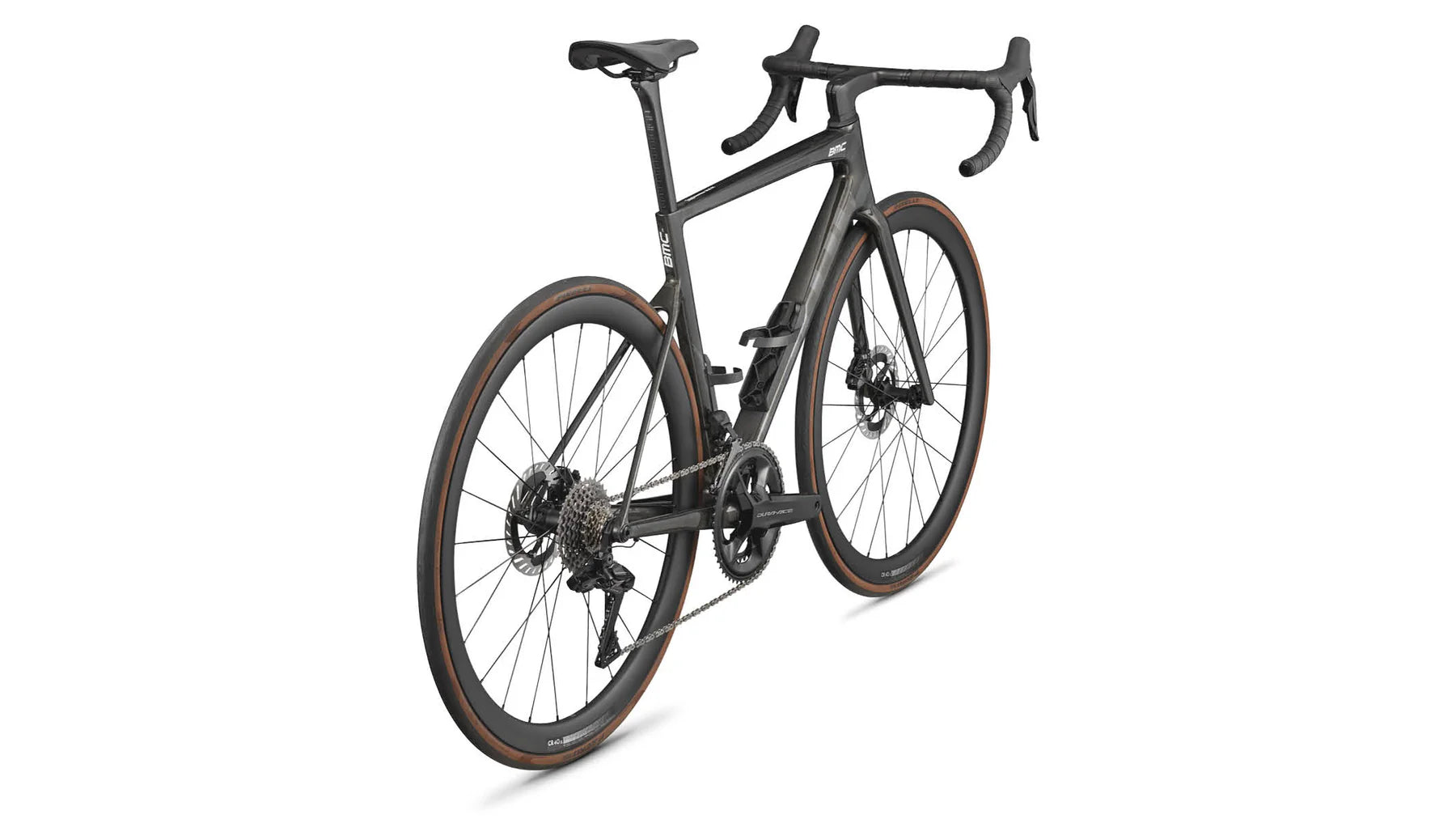

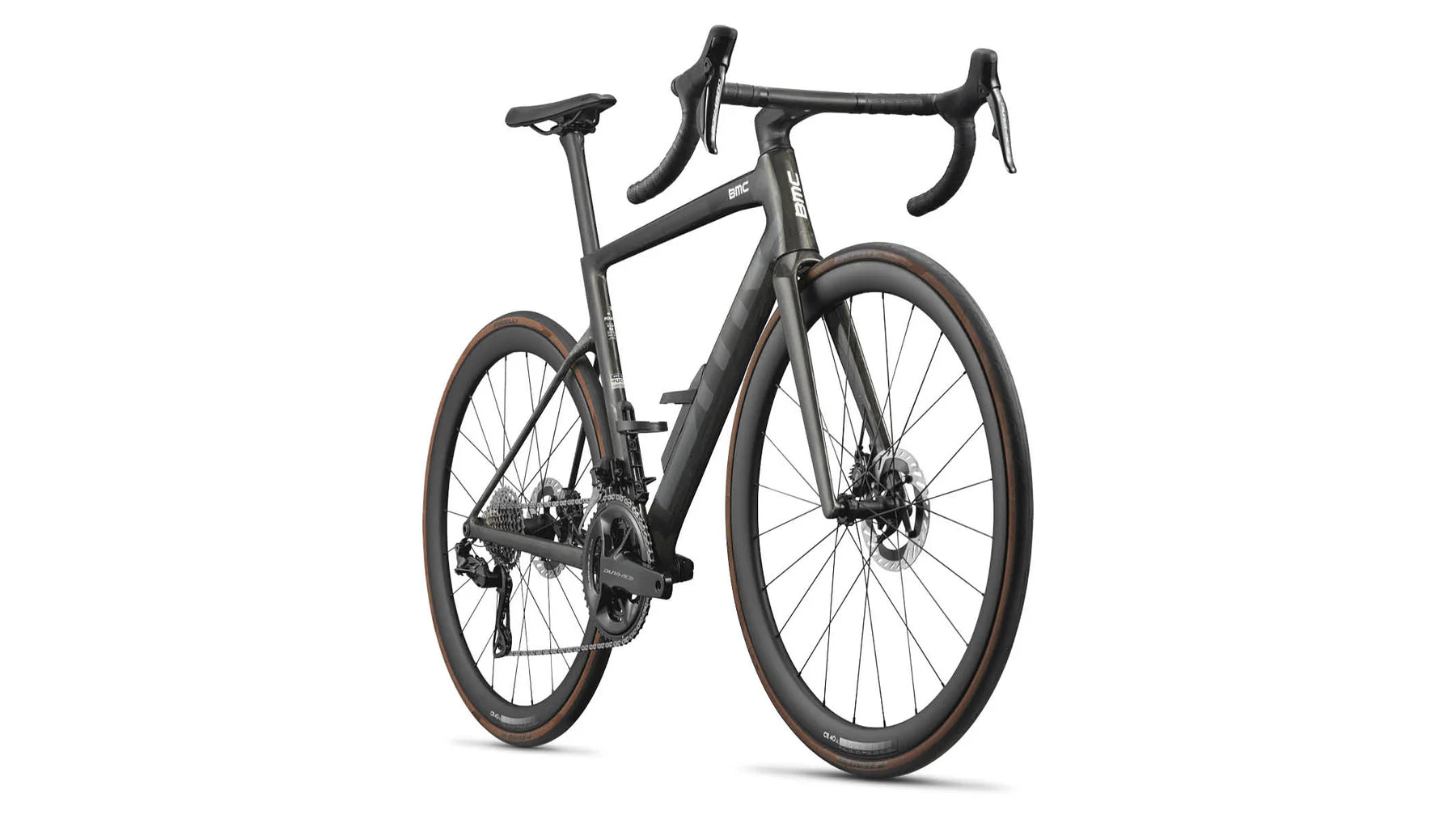

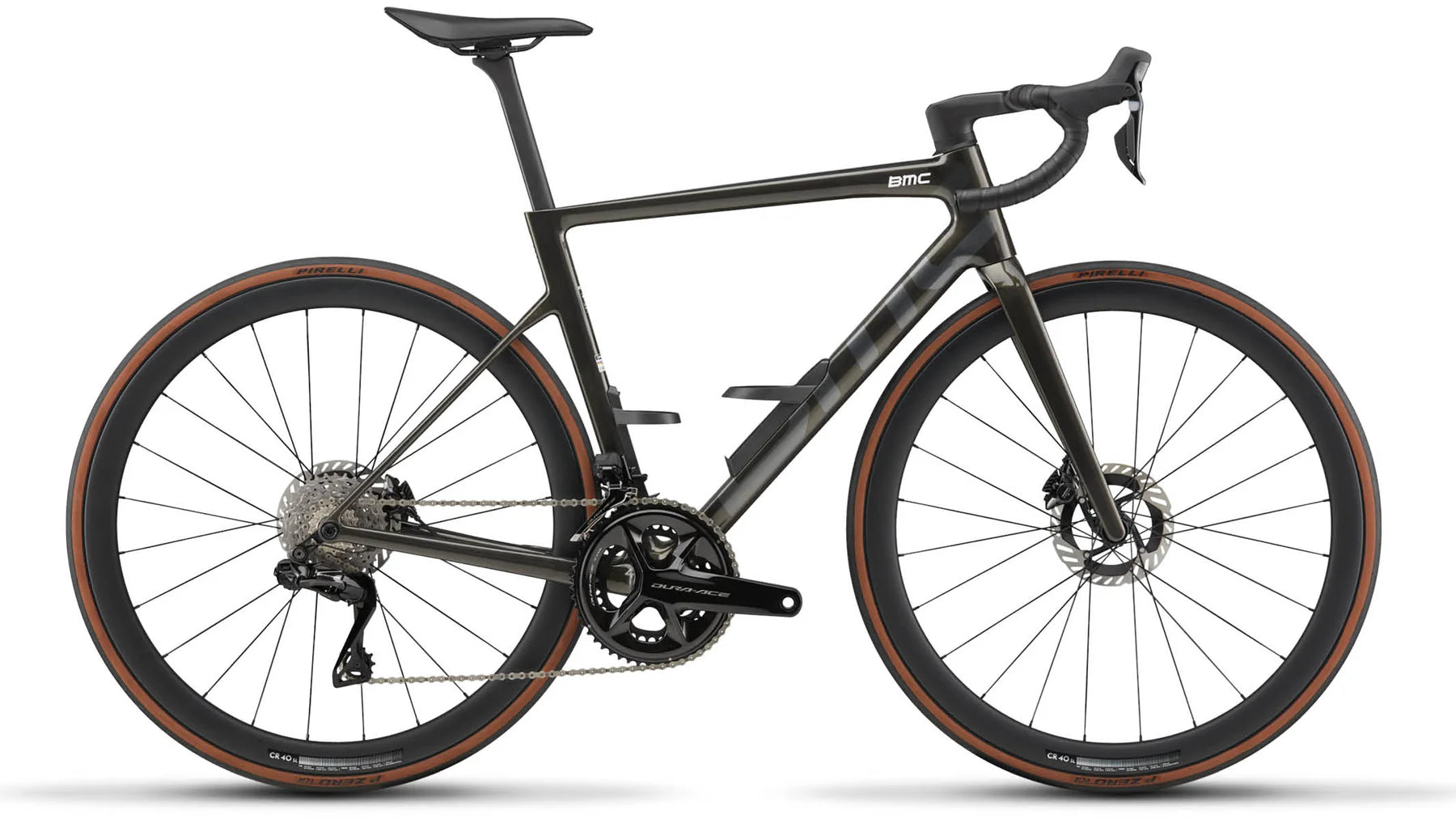

7.4kg | Size 54 as pictured with all accessories
System Weight Limit:
110kg
Sizes and fit
Frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. Fork offset varies with frame size: 48mm on sizes 47-51 and 43mm on sizes 54-61; seatpost offset is 0mm on sizes 47-51 and 10mm on sizes 54-61.
Colours
Available in Gold Glitter Carbon.
Materials and construction

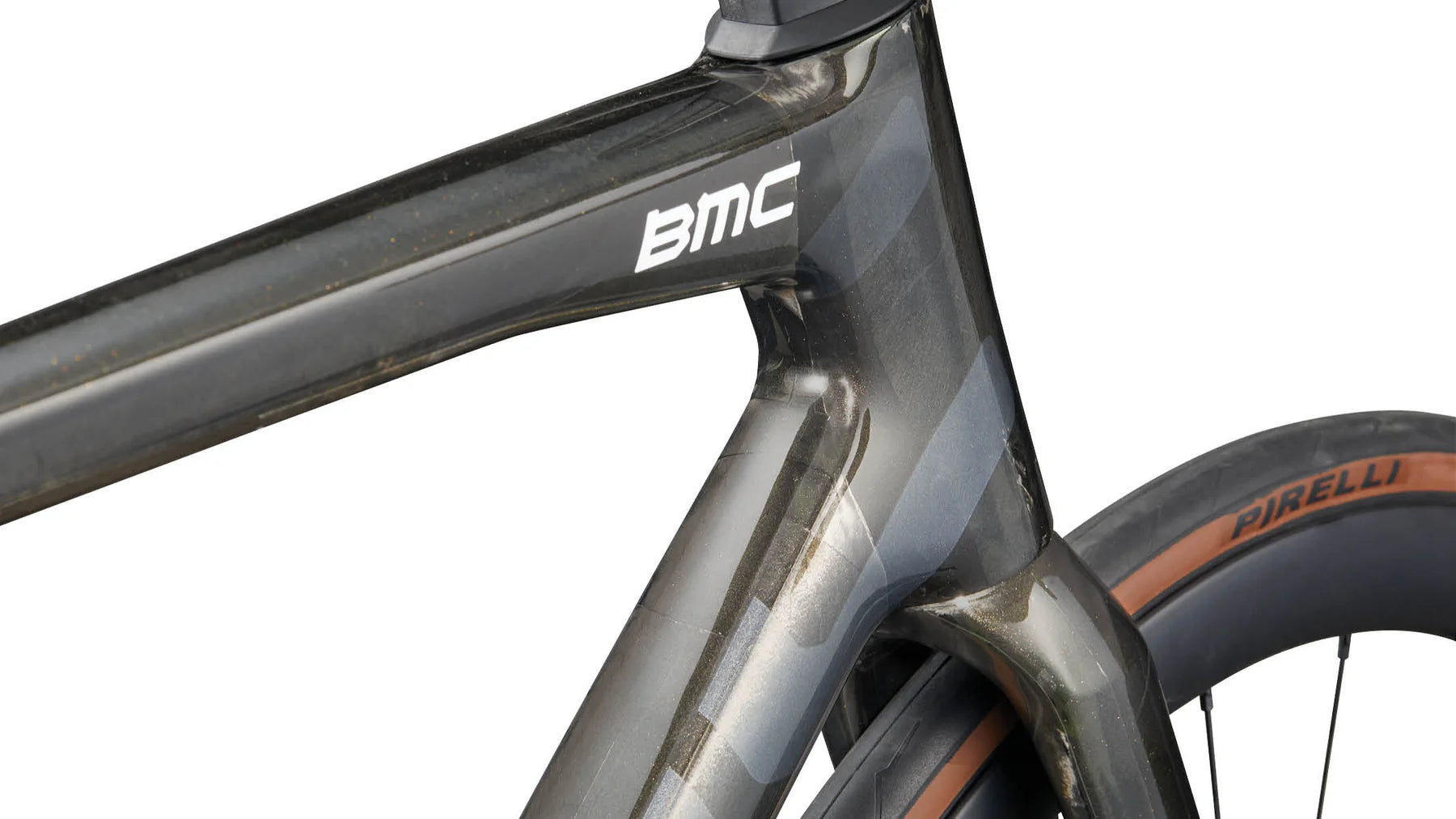

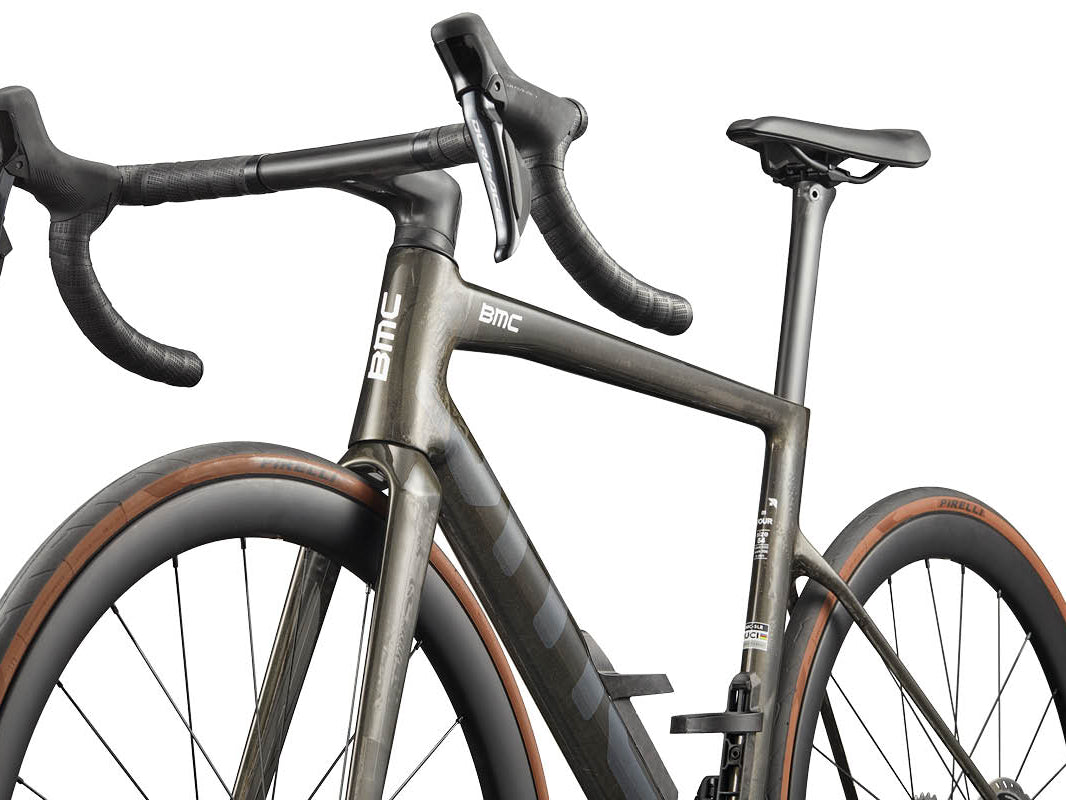

- Frame: Teammachine SLR 01 Gen 5 in 01 Pro Carbon with Aerocore Design, ICS Technology stealth cable routing, Full Mount UDH, TCC Race compliance level, flat mount disc, 12 x 142mm thru-axle.
- Fork: Teammachine SLR 01 Gen 5 in 01 Pro Carbon, TCC Race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle.

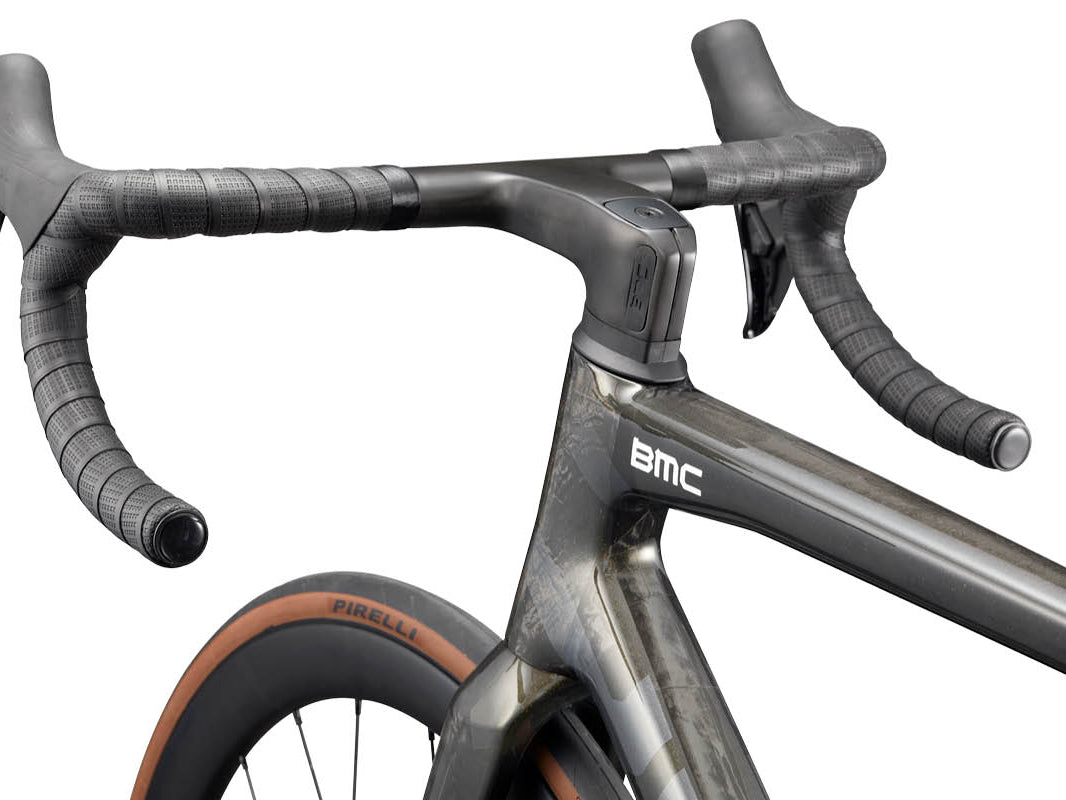

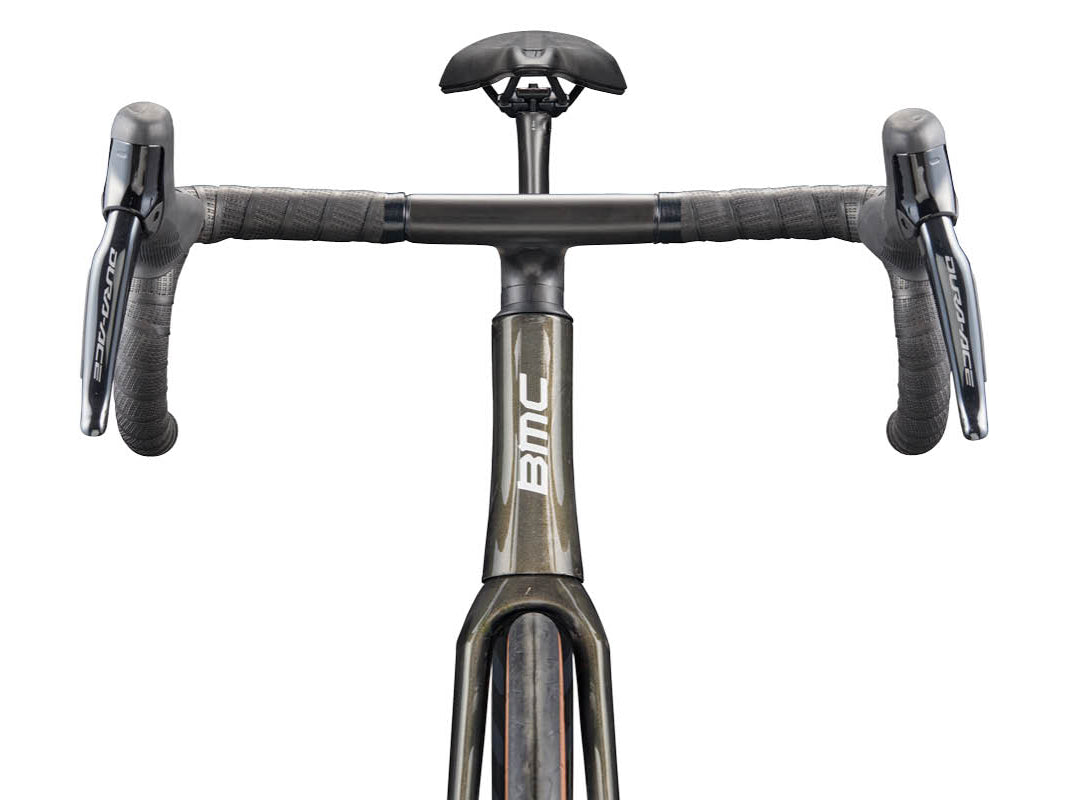

- Cockpit: ICS Carbon Evo one-piece full carbon cockpit (127mm drop, 70mm reach, 8° flare).

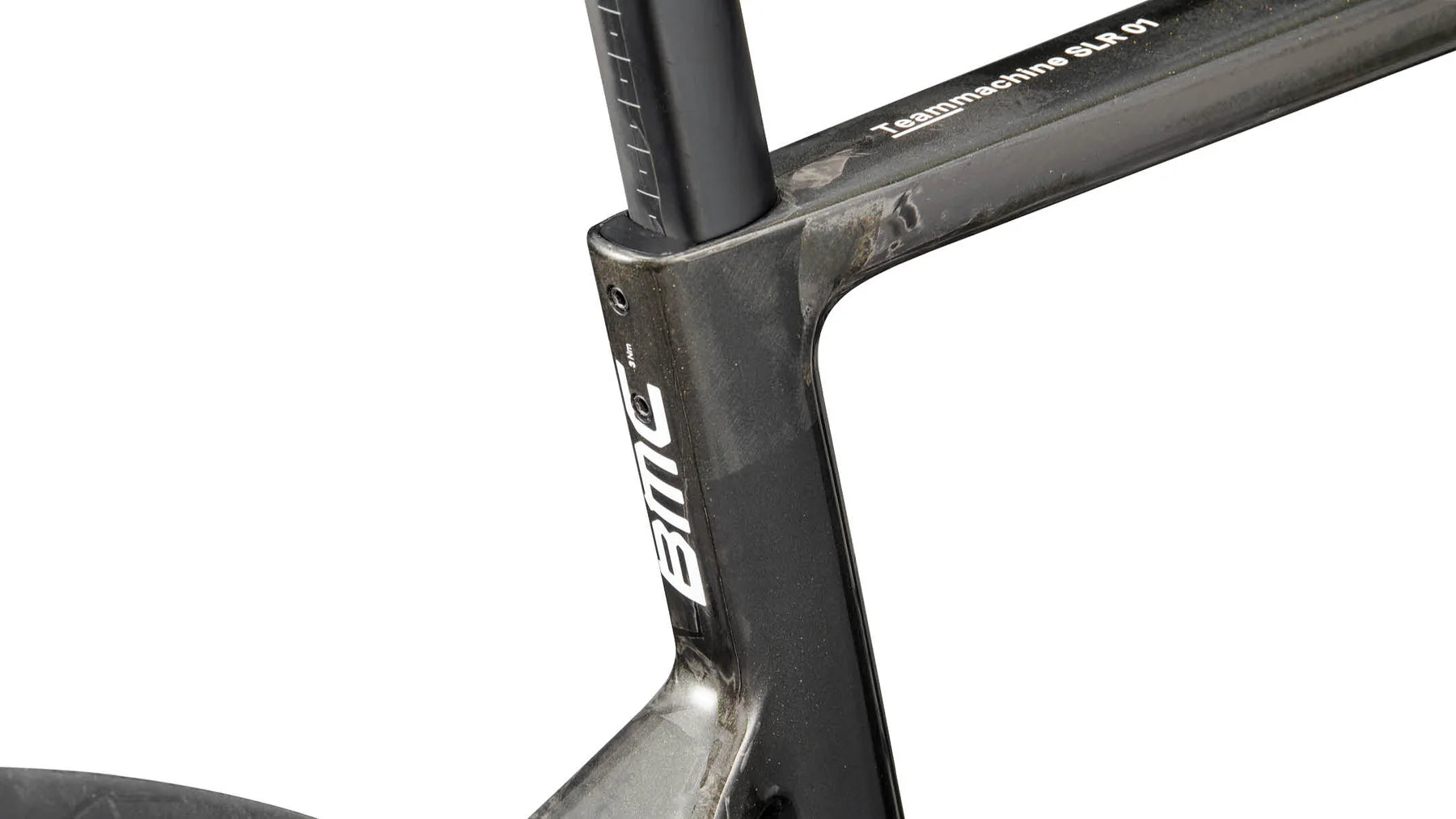

- Seatpost: Teammachine SLR 01 Gen 5 advanced carbon aero-shaped seatpost; Fizik Vento Argo R5 saddle, 140mm.
- Groupset: Shimano Dura-Ace Di2, 2 x 12 speed, 52-36T chainrings and 11-34T cassette, with 4iiii Precision Gen3+ non-drive-side power meter.
- Wheelset: CR 40 SL Carbon tubeless-ready rims, 40mm depth, with Pirelli P Zero Race TLR 28mm tubeless tyres.
- Tyre clearance 32mm measured tyre; system weight limit 110kg.
- Claimed weight 7.4kg without pedals, size 54 as pictured with all accessories.
- In the box: Aerocore bottle cages, computer mount for Garmin and Wahoo, and GoPro mount.
