Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

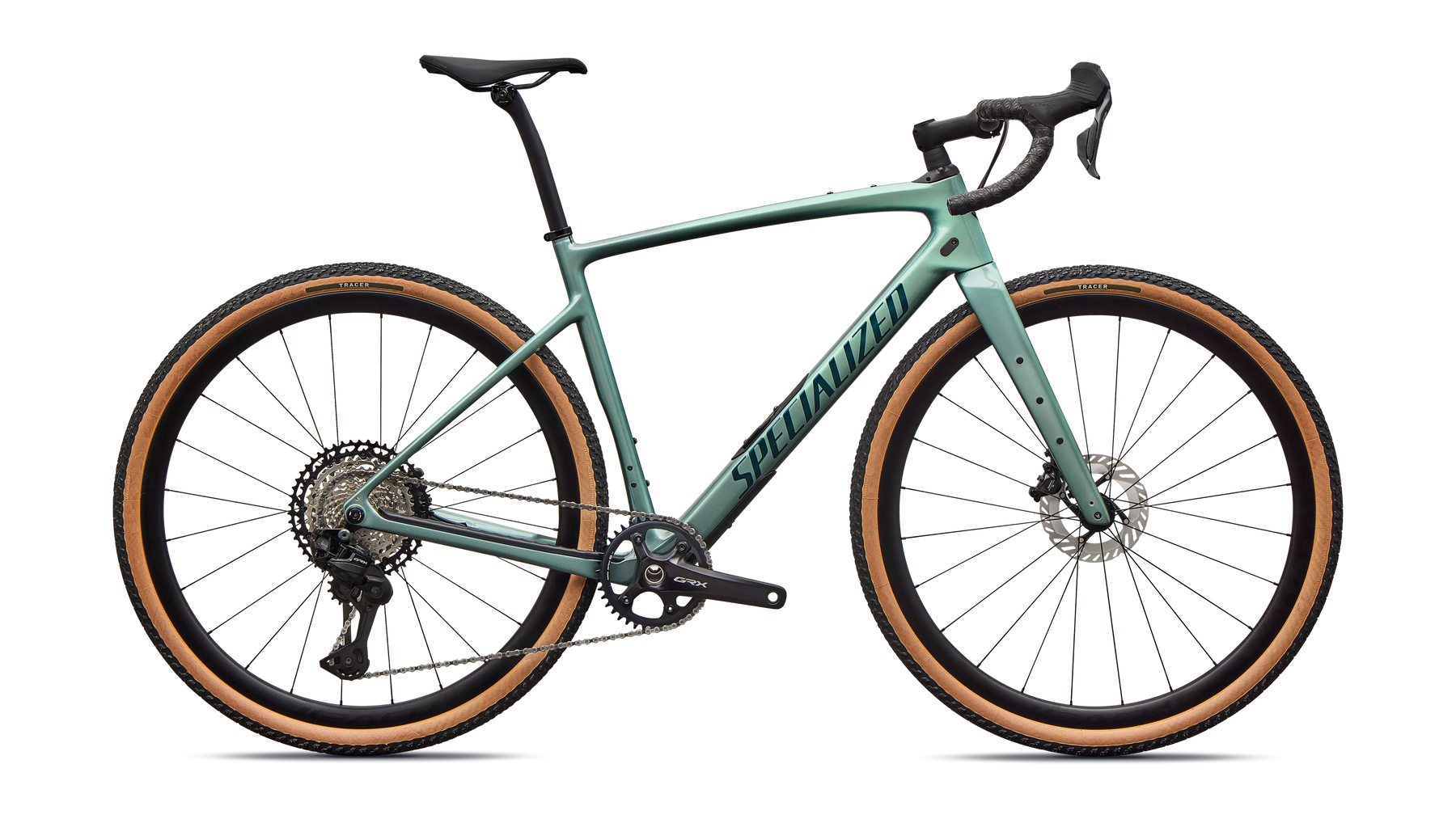

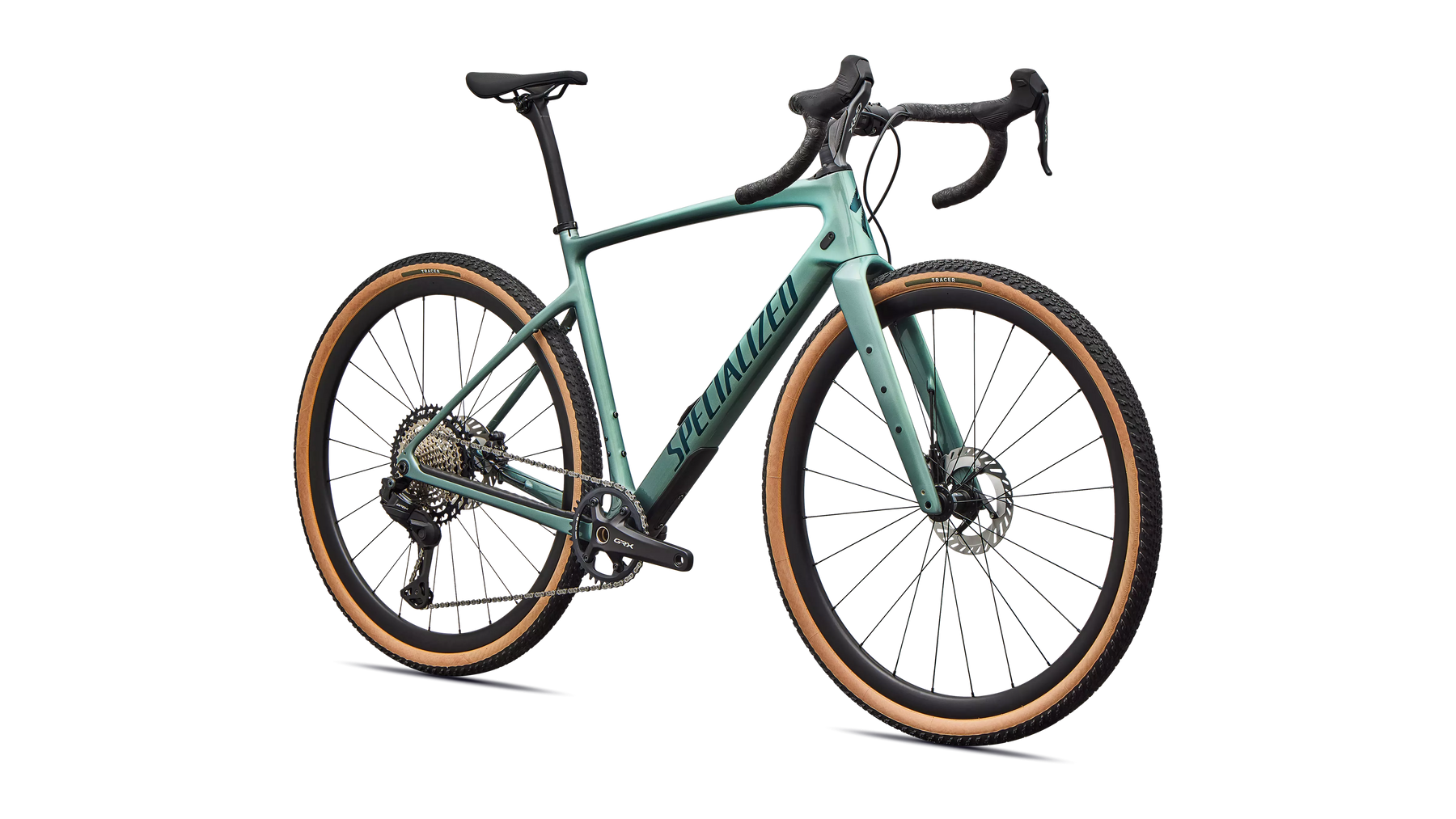

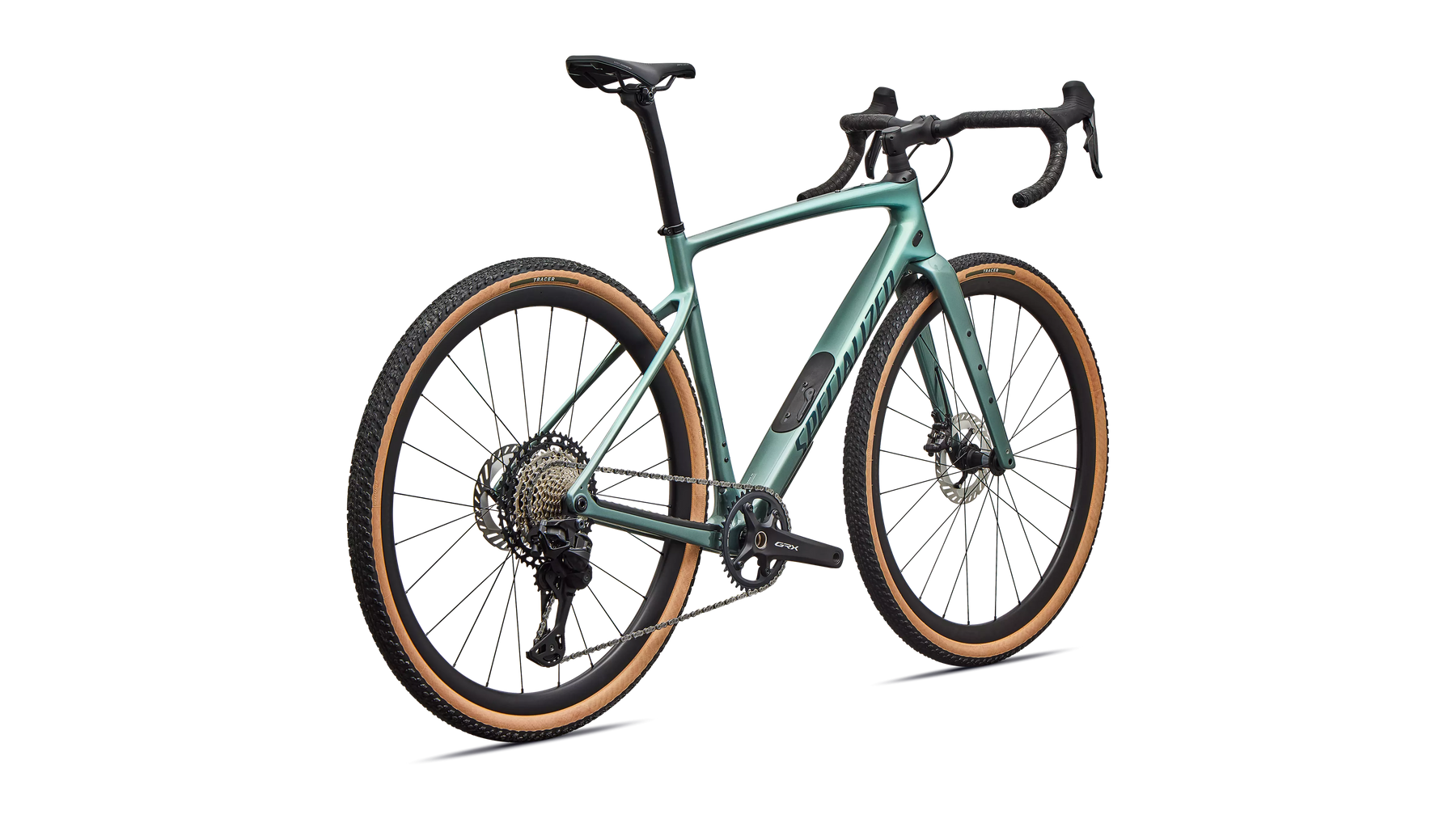

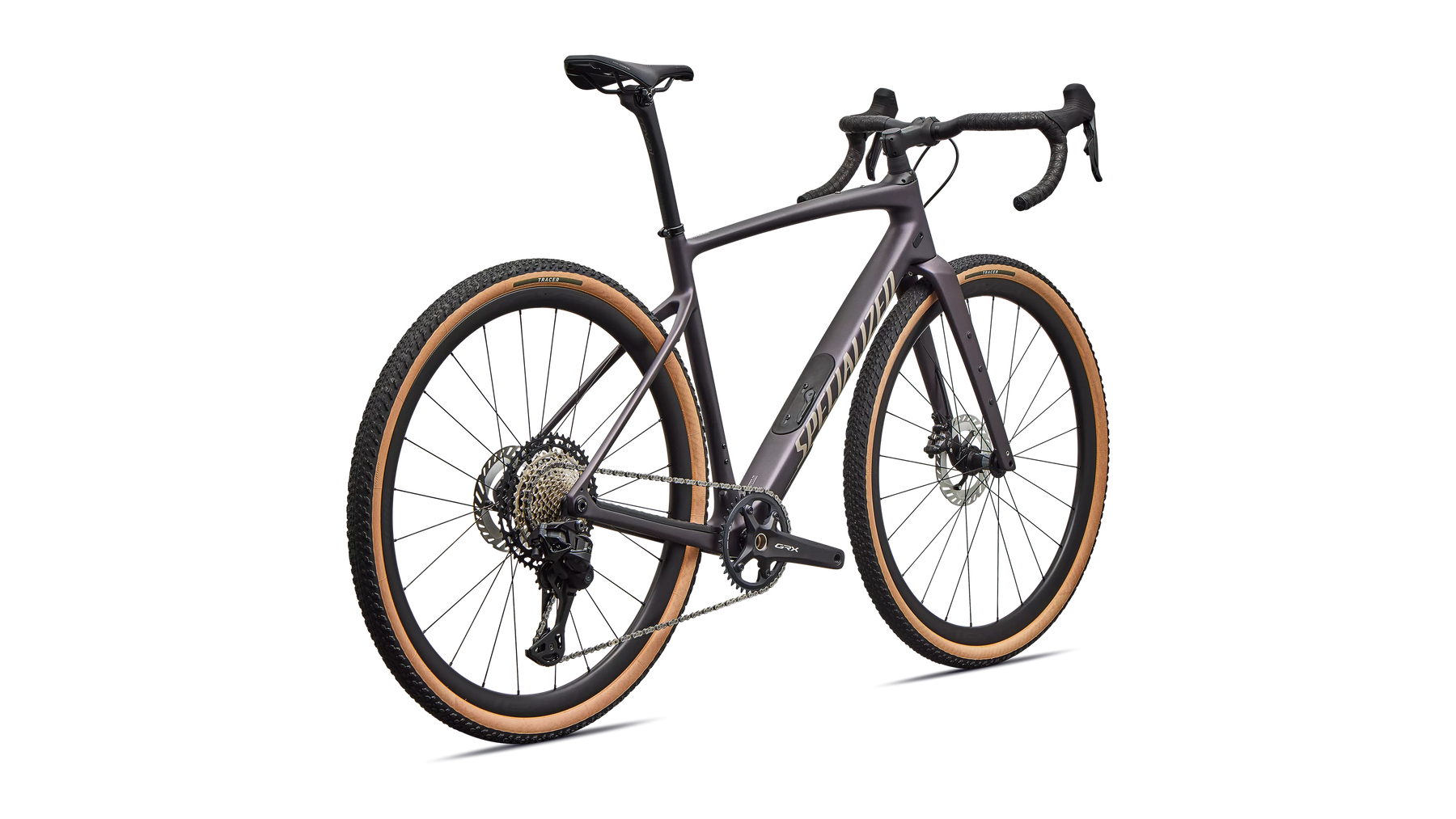

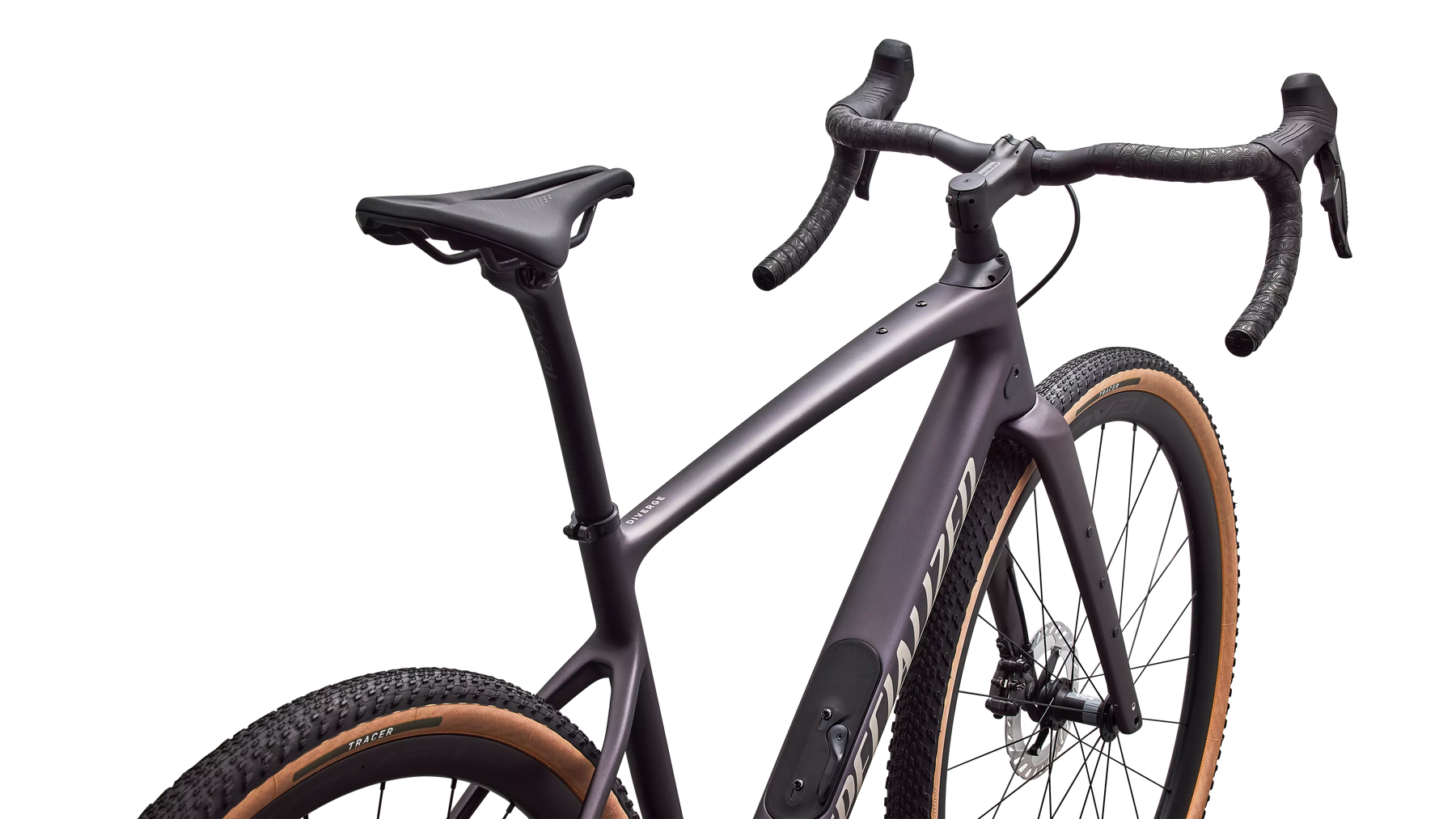

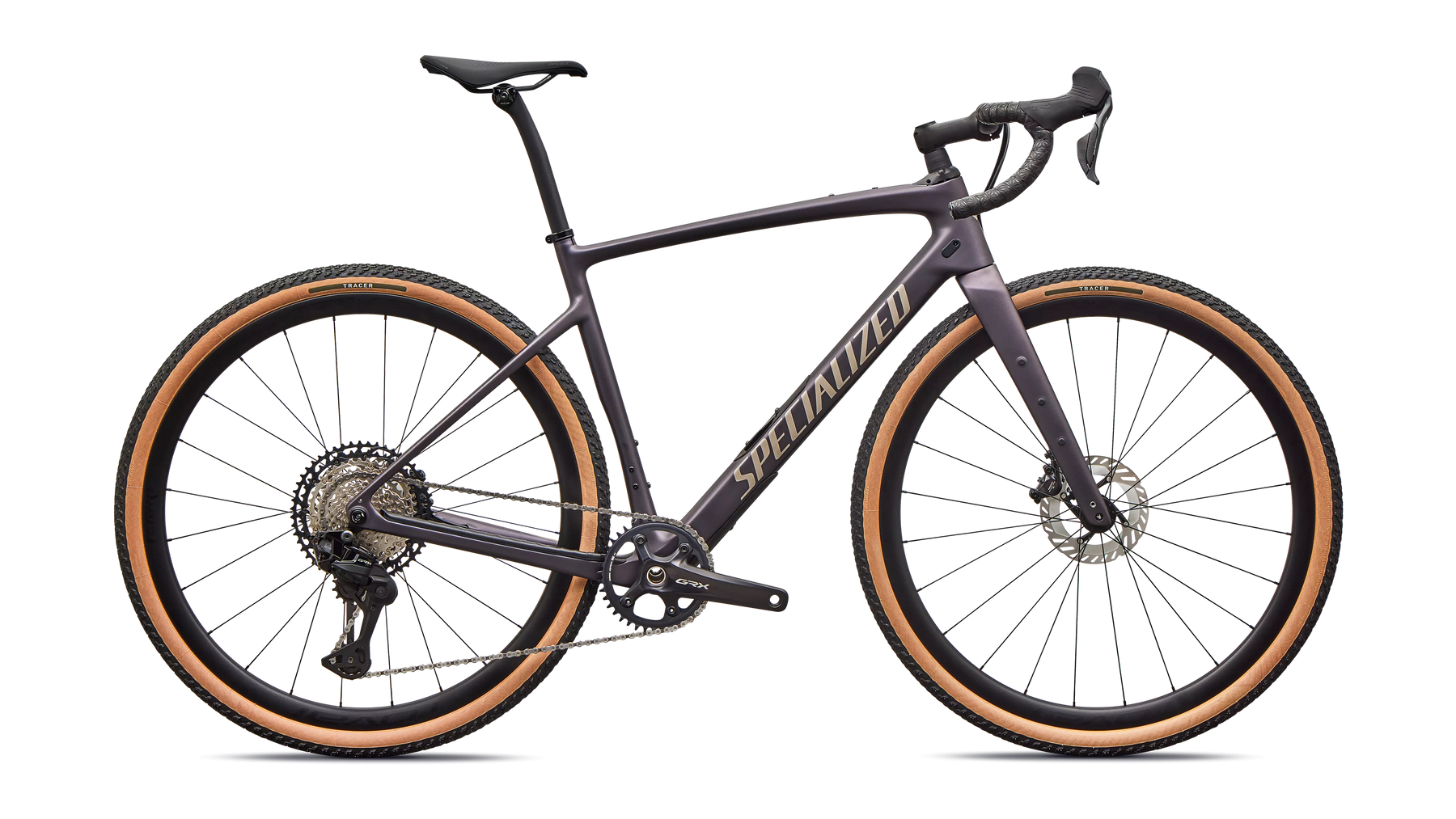

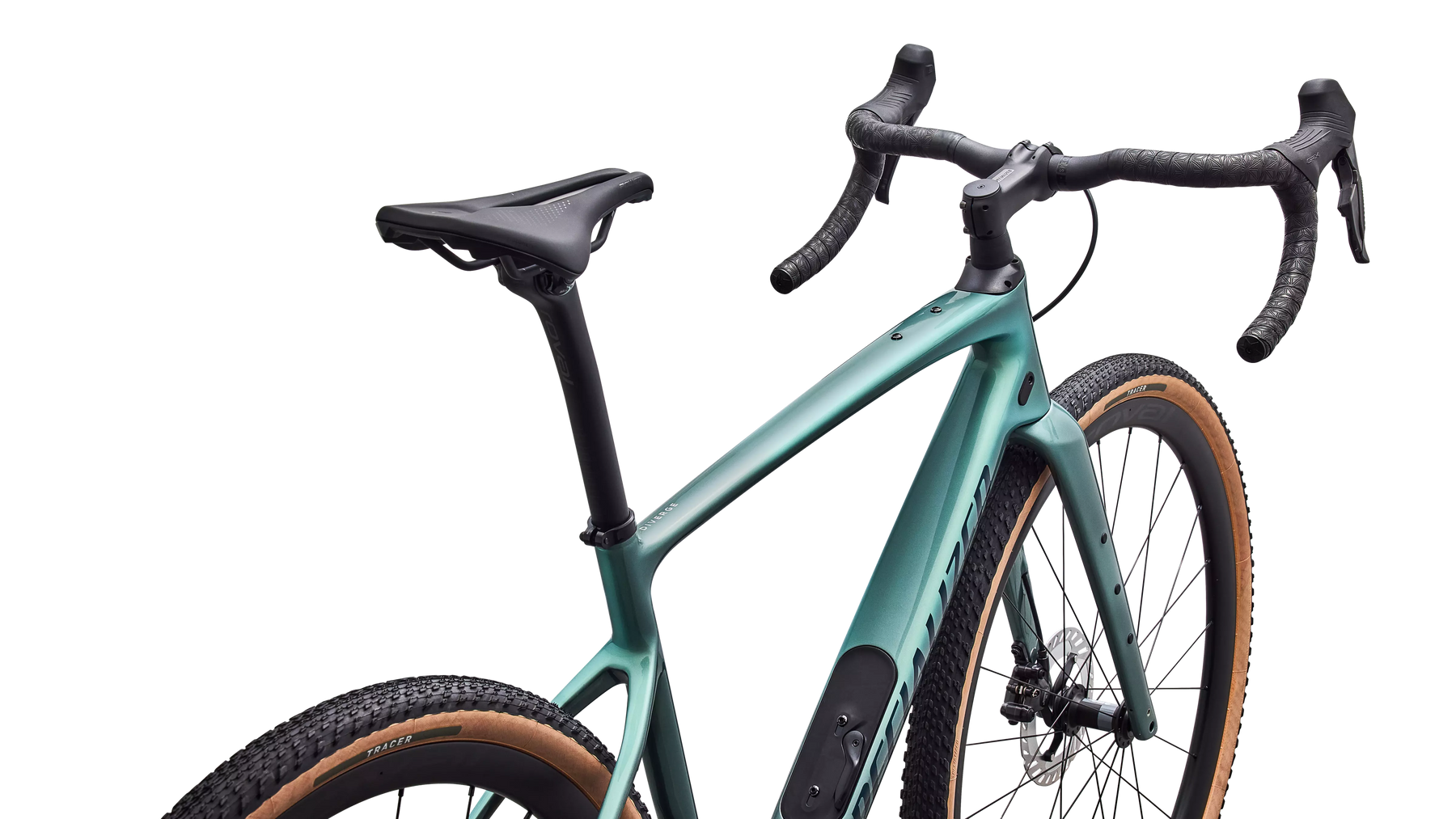

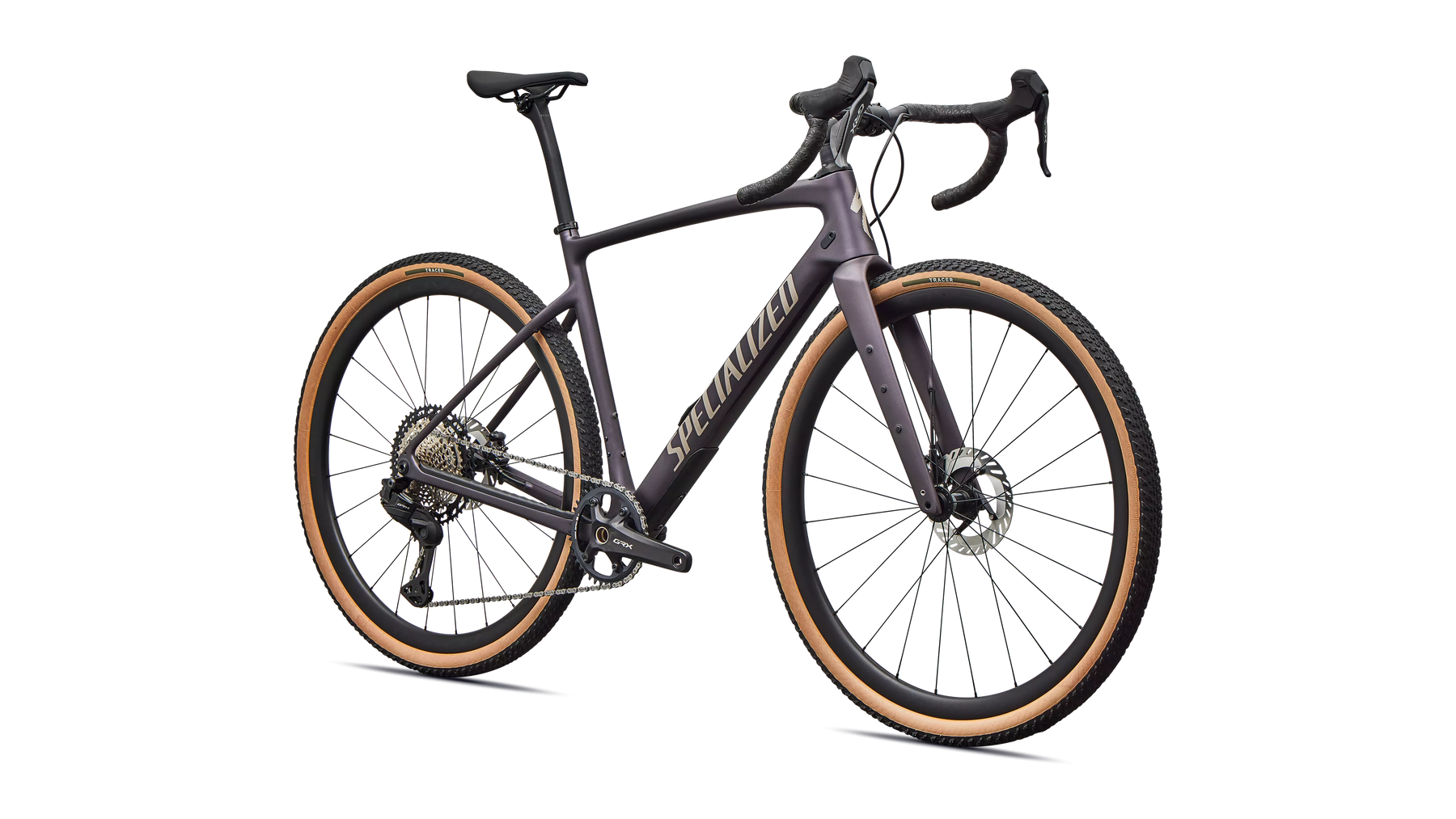

The Diverge 4 Expert pairs a FACT 9r carbon frame and Future Shock 3.2 front suspension with Shimano’s new GRX Di2 1x12-speed electronic groupset, Roval Terra C carbon wheels, and SWAT 4.0 internal downtube storage.
At a Glance
- Use: Gravel Adventure/Race
- Frameset: FACT 9r Carbon
- Suspension: Future Shock 3.2
- Drivetrain/Wheels: New Shimano GRX800 Di2 / Roval Terra C
- Storage: SWAT 4.0
Technical Specifications
Frameset

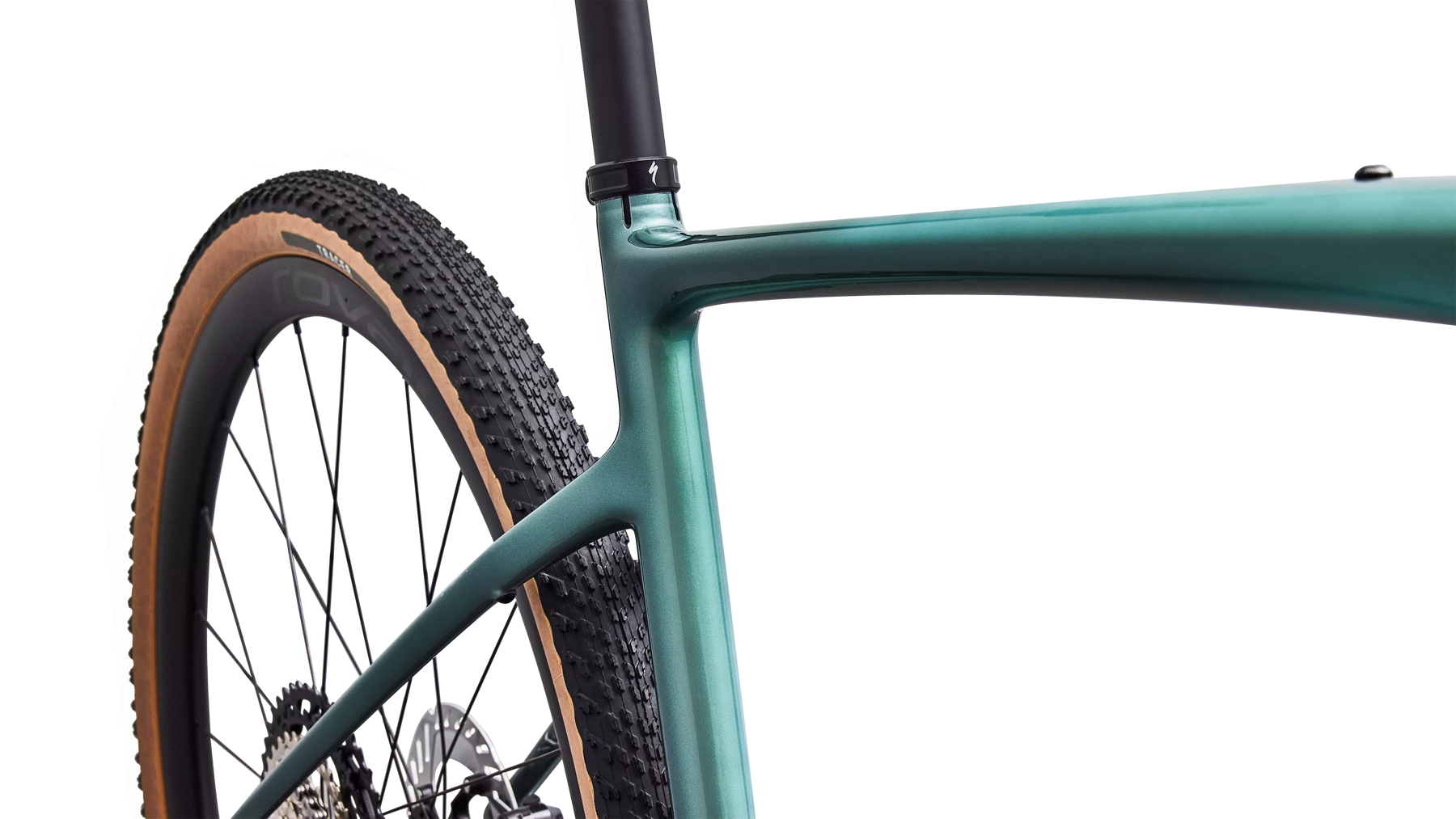

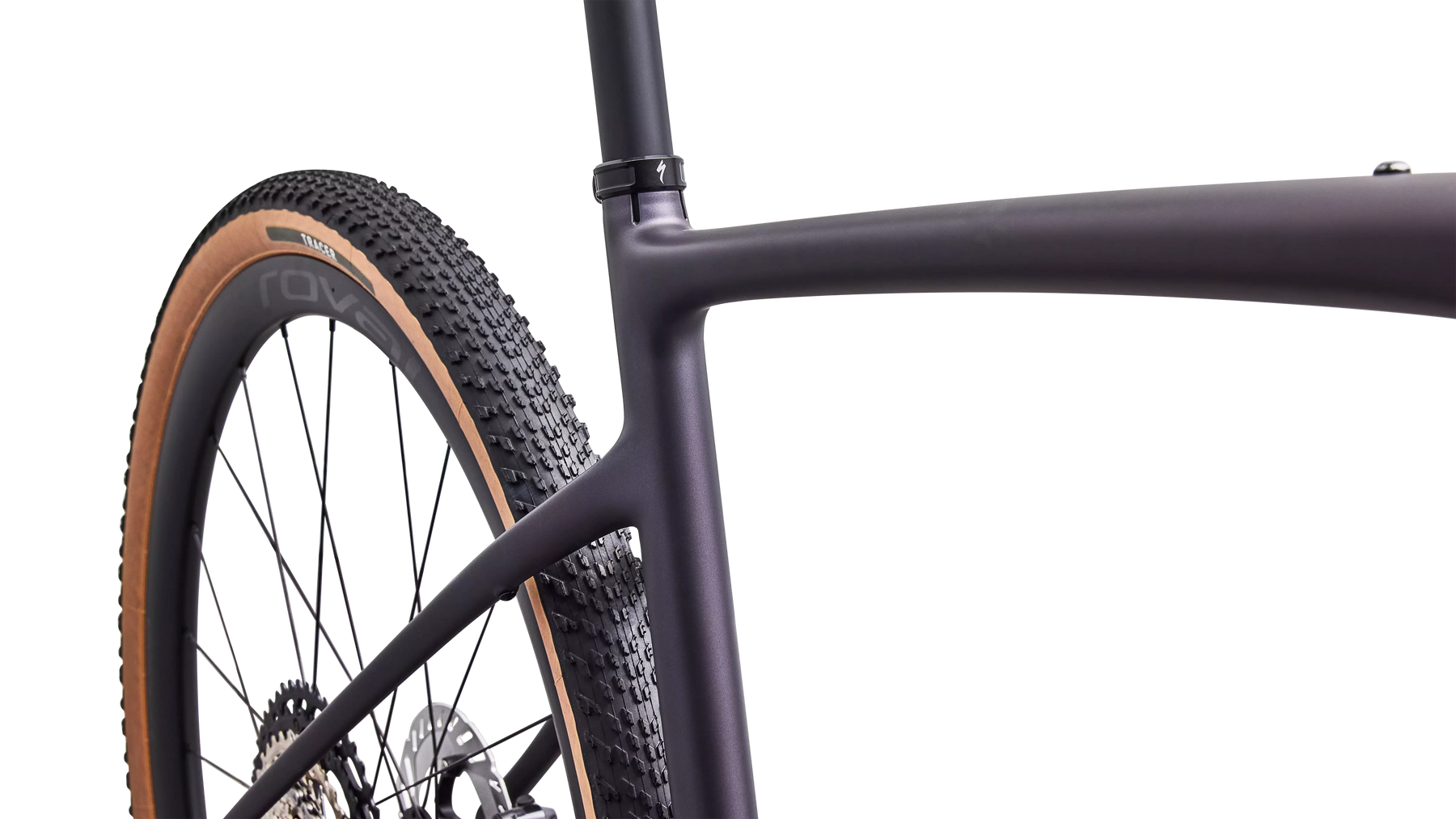

- Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake: NEW Shimano GRX Hydraulic Brake
- Rear Brake: NEW Shimano GRX Hydraulic Brake
Drivetrain
- Rear Derailleur: NEW Shimano GRX Di2 1x12sp RX827
- Shift Levers: NEW Shimano GRX Di2 RX825, 1x12sp
- Cassette: Shimano Deore XT, 10-51t
- Crankset: NEW Shimano GRX RX820, 40t
- Bottom Bracket: Shimano Threaded BSA BB
- Chain: Shimano XT M8100, 12-speed w/ quick link
Wheels & Tires
- Front Tyre: Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tyre: Tracer 700x45, Tan Sidewall, Tubeless Ready
- Front Wheel: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
- Rear Wheel: Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
- Inner Tubes: Presta, 700x32-50mm
Cockpit
- Saddle: Body Geometry Power Expert
- Stem: Future Stem, Pro
- Seatpost: Roval Terra Carbon Seat Post, 20mm Offset

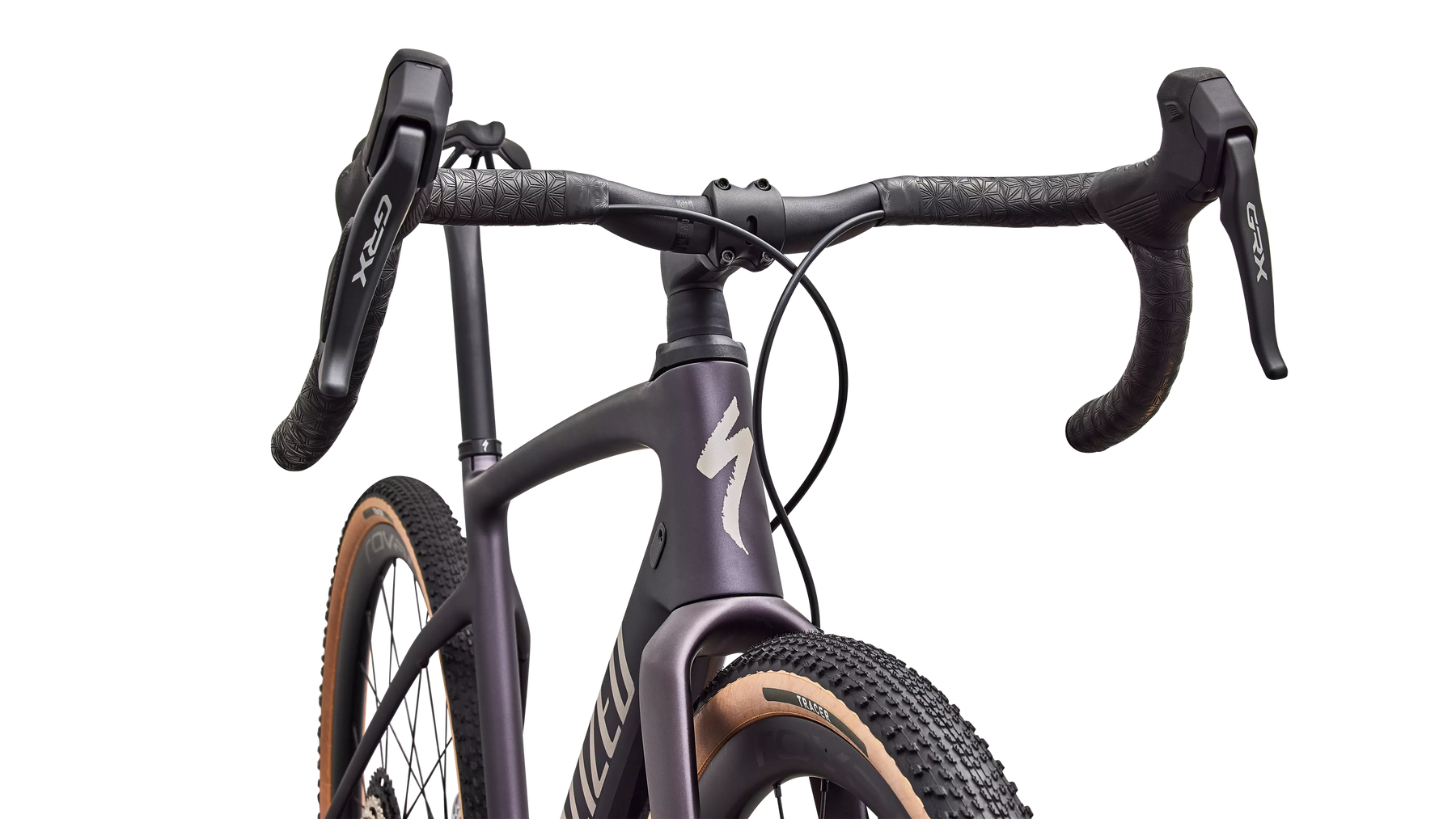

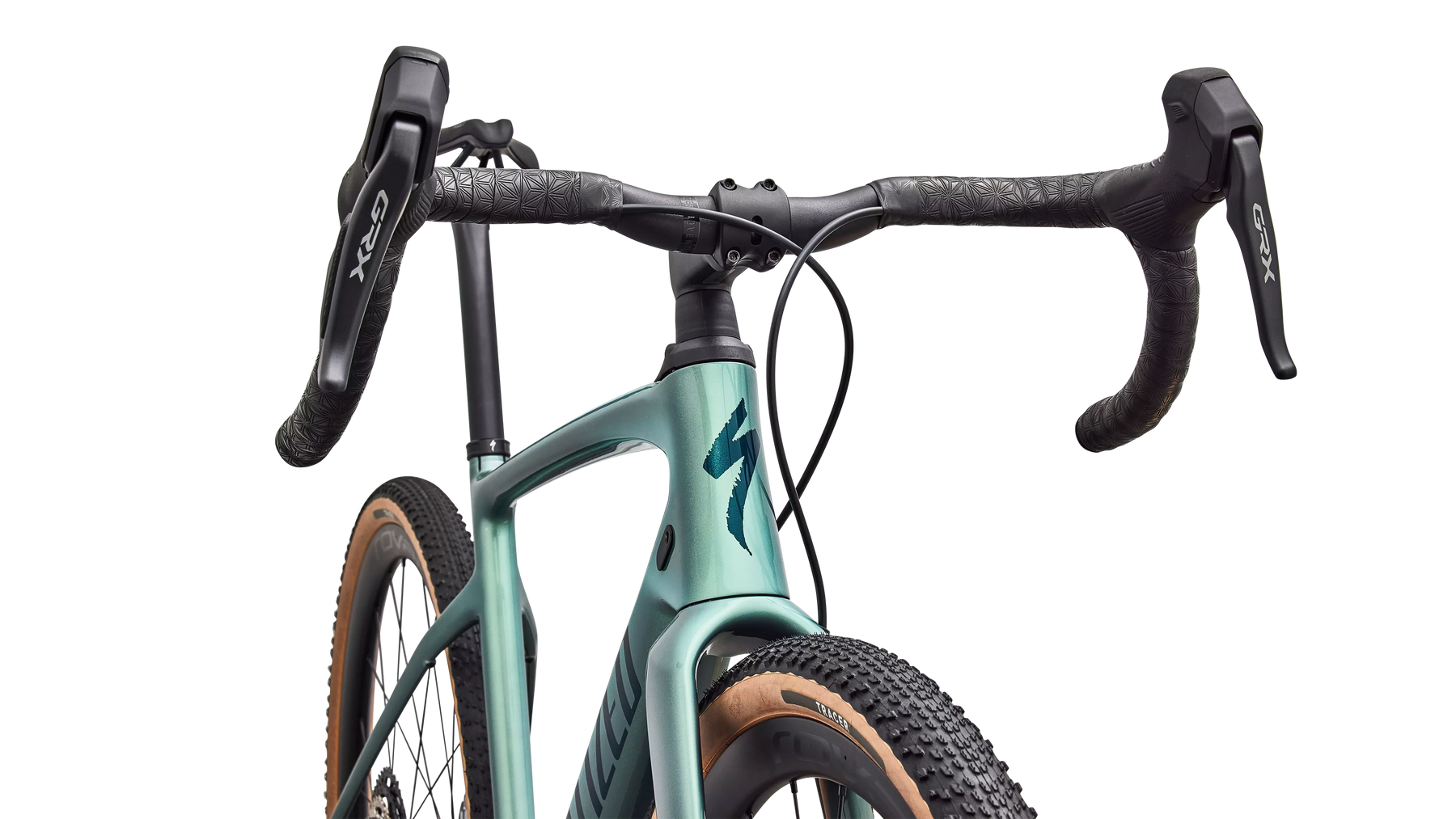

- Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder: Specialized Alloy, 30.8mm
- Tape: Supacaz Super Sticky Kush
Accessories
- SWAT: SWAT 4.0 internal downtube storage
Weight: 8.9 kg (19 lb, 9.9 oz) — measured on a size 56 frame. Weight varies by size and build.
Sizes and fit
Available in frame sizes 49, 52, 54, 56, 58 and 61. Built around 700c wheels with 700x45 tyres, and fitted with 103mm drop x 70mm reach x 12º flare handlebars.
Colours
Available in Nebula Metallic/sandstone Metallic and Fjord Metallic/emerald Metallic.
Materials and construction
- Frame: Specialized Diverge FACT 9r carbon, with SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc and UDH dropout
- Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Groupset: Shimano GRX Di2 1x12-speed — RX827 rear derailleur, RX825 shift levers, RX820 40t crankset, Shimano Deore XT 10-51t cassette, Shimano threaded BSA bottom bracket, GRX hydraulic disc brakes
- Wheelset: Roval Terra C carbon rims, 25mm internal width, 32mm depth, 24h, tubeless ready, DT for Roval 370 hubs, DT Swiss Competition Race spokes
- Tyres: Tracer 700x45, tan sidewall, tubeless ready
- Cockpit: Specialized Adventure Gear Hover handlebars, Future Stem Pro, Roval Terra Carbon seatpost (20mm offset), Specialized alloy 30.8mm seat binder, Body Geometry Power Expert saddle
- Storage: SWAT 4.0 internal downtube storage
- Claimed weight: 8.9 kg (19 lb, 9.9 oz), measured on a size 56 frame
