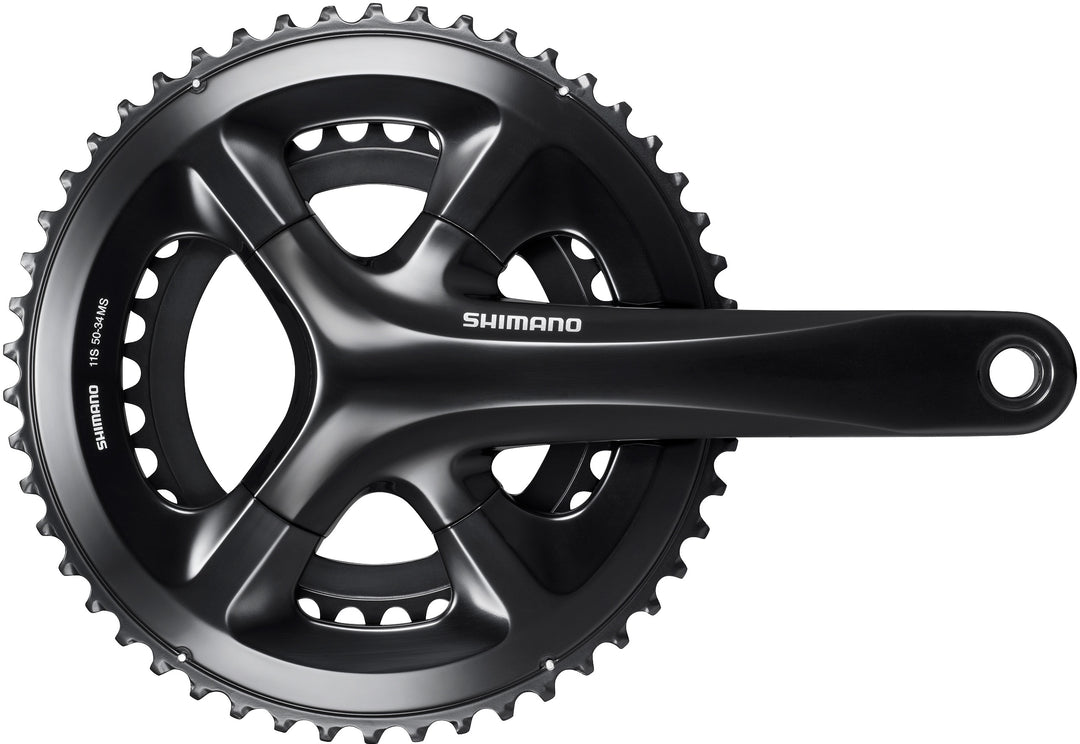

Name: Shimano FC-RS510 Road Double Chainset
Brand: Madison
Price: 139.99 GBP
Availability: InStock

£139.99

Free UK shipping available on all apparel and components

Lightweight 2-piece design 11-speed chainset
2-piece design forged and anodised aluminium crank arms keep weight low
The chainring teeth have been developed to work in conjunction with HG-X 11-speed chains for increased contact to provide greater efficiency and improved power transfer
Bottom bracket bearings are spaced wide apart, enabling the use of larger bearings and an increased axle diameter
Chainring spacing has been optimized for use with 135 / 142mm rear axle spacing and short chainstayes
Can be used with Shimano external or press-fit bottom brackets
The system allows for easier installation, adjustment, and maintenance
Lightweight anodised SG-X aluminium chainrings for smooth and precise shifting

Sizes and fit

Available in crank lengths 165mm, 170mm, 172.5 and 175mm, with gear ratios 46/36 T and 52 / 36 T.

Materials and construction

Two-piece forged and anodised aluminium crank arms
Lightweight anodised SG-X aluminium chainrings
Compatible with Shimano external or press-fit bottom brackets
Chainring teeth developed to work with HG-X 11-speed chains
Chainring spacing optimised for 135 / 142mm rear axle spacing and short chainstays
