BMC Teammachine SLR 01 SEVEN Road Build
Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo X5 | 140mm
Drivetrain
Crankset:
SHIMANO 105 (FC-R7100)
Chainrings:
52-36T
Cassette:
SHIMANO (CS-HG710)
Cassette Size:
11-36T
Chain:
SHIMANO CN-M6100
Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)
Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)
Shifters:
SHIMANO 105 Di2 (ST-R7170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)
Rotors:
SHIMANO 105 (RT-CL700)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 40 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Contiental Grand Prix TR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:

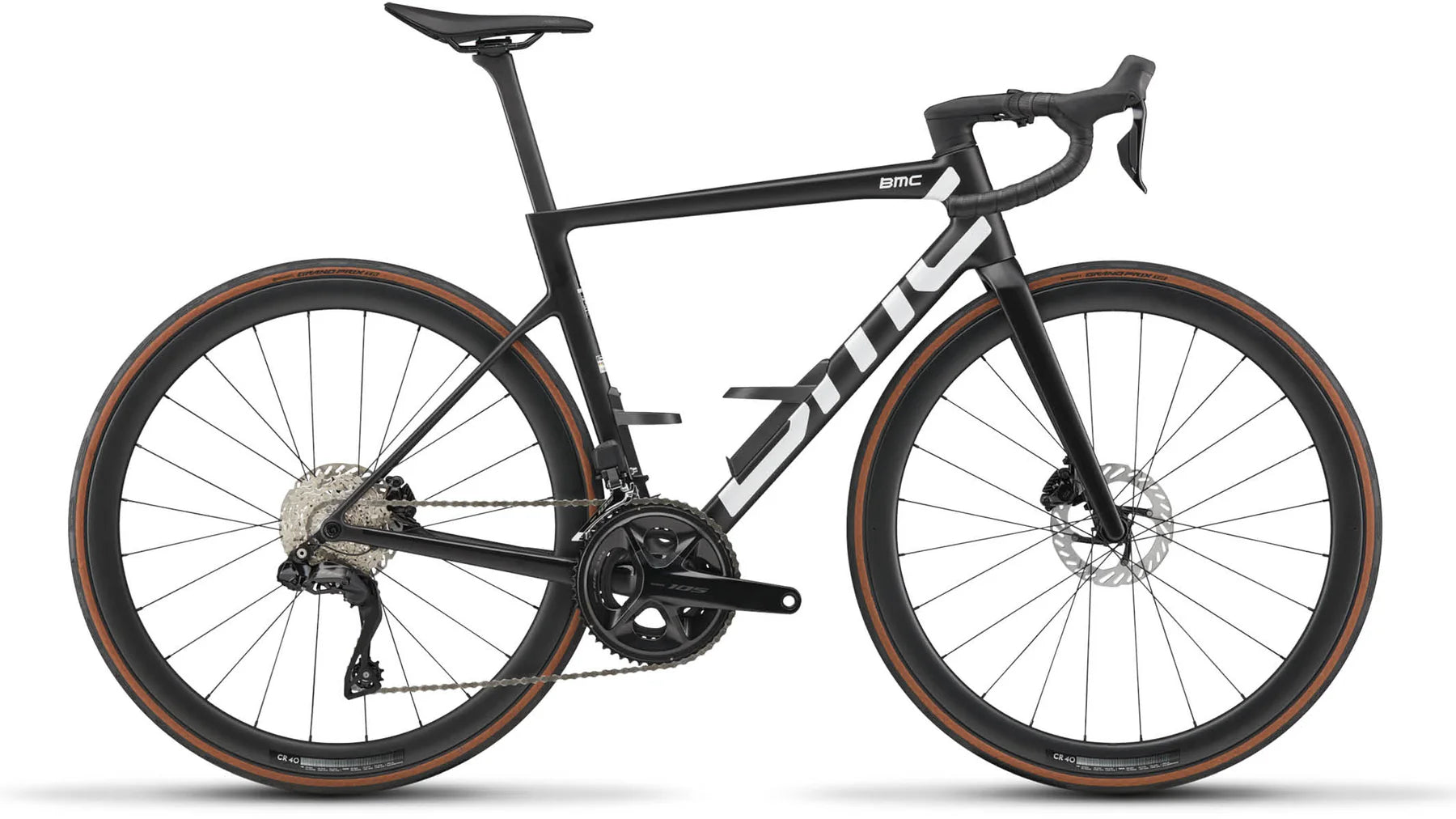

8.1kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
Sizes and fit
Frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. Fork offset varies with frame size: 48mm on sizes 47-51 and 43mm on sizes 54-61; seatpost offset is 0mm on sizes 47-51 and 10mm on sizes 54-61.
Colours
Available in 2027 Black Carbon.
Materials and construction
- Frame: Teammachine SLR 01 Gen 5 in 01 Pro Carbon with Aerocore Design, ICS Technology stealth cable routing, Full Mount UDH, TCC Race compliance level, flat mount disc, 12 x 142mm thru-axle.
- Fork: Teammachine SLR 01 Gen 5 in 01 Pro Carbon, TCC Race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle.
- Cockpit: BMC ICS2 stem with BMC HB D4 03 alloy 6061 handlebar (135mm drop, 70mm reach, 6° flare).
- Seatpost: Teammachine SLR 01 Gen 5 advanced carbon aero-shaped seatpost; Fizik Vento Argo X5 saddle, 140mm.
- Groupset: Shimano 105 Di2, 2 x 12 speed, 52-36T chainrings and 11-36T cassette.
- Wheelset: CR 40 Carbon tubeless-ready rims, 40mm depth, with Continental Grand Prix TR 28mm tubeless tyres.
- Tyre clearance 32mm measured tyre; ASTM classification Level 1; system weight limit 110kg.
- Claimed weight 8.1kg without pedals, size 54 as pictured with all accessories.
- In the box: Aerocore bottle cages.
