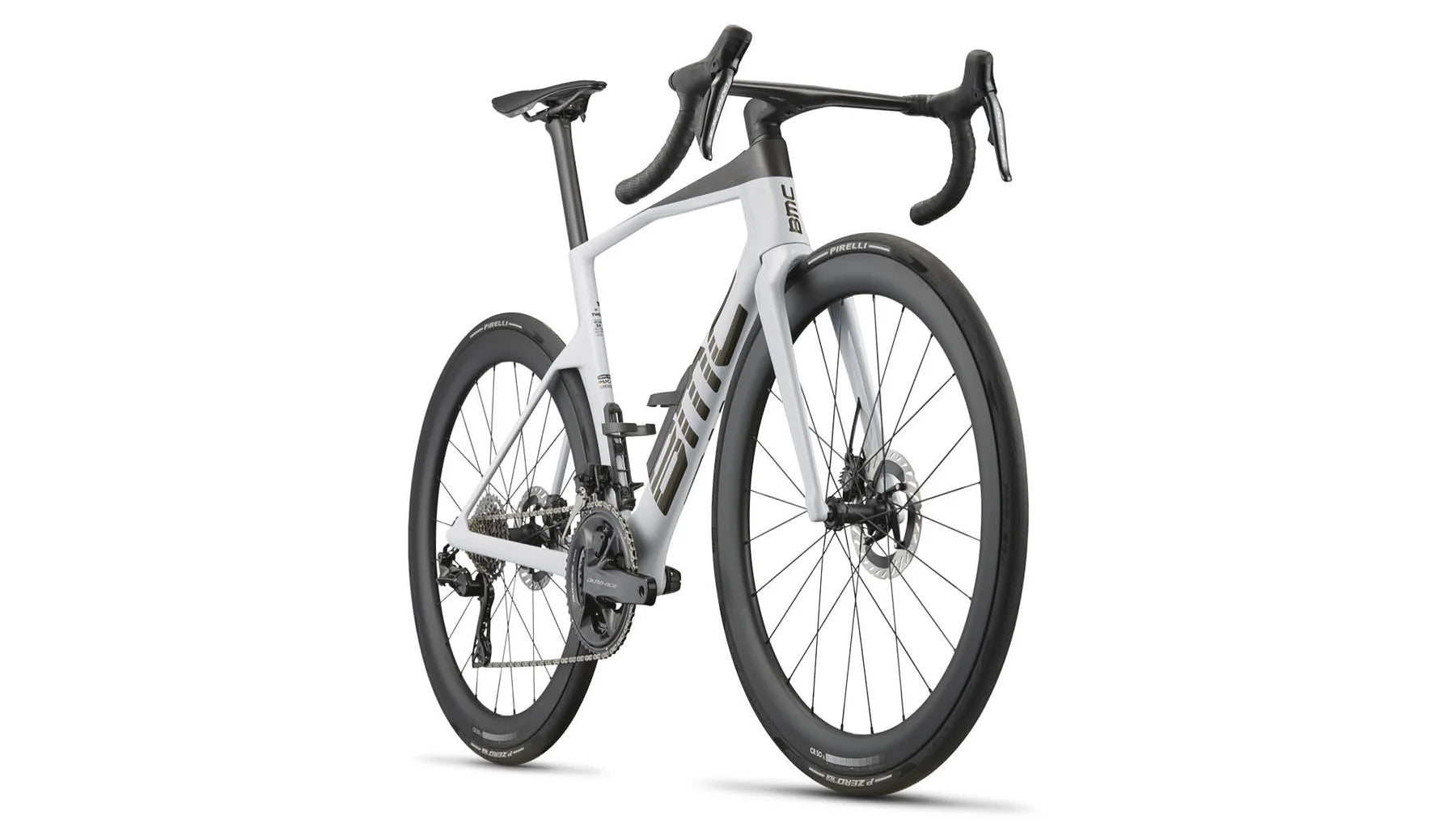

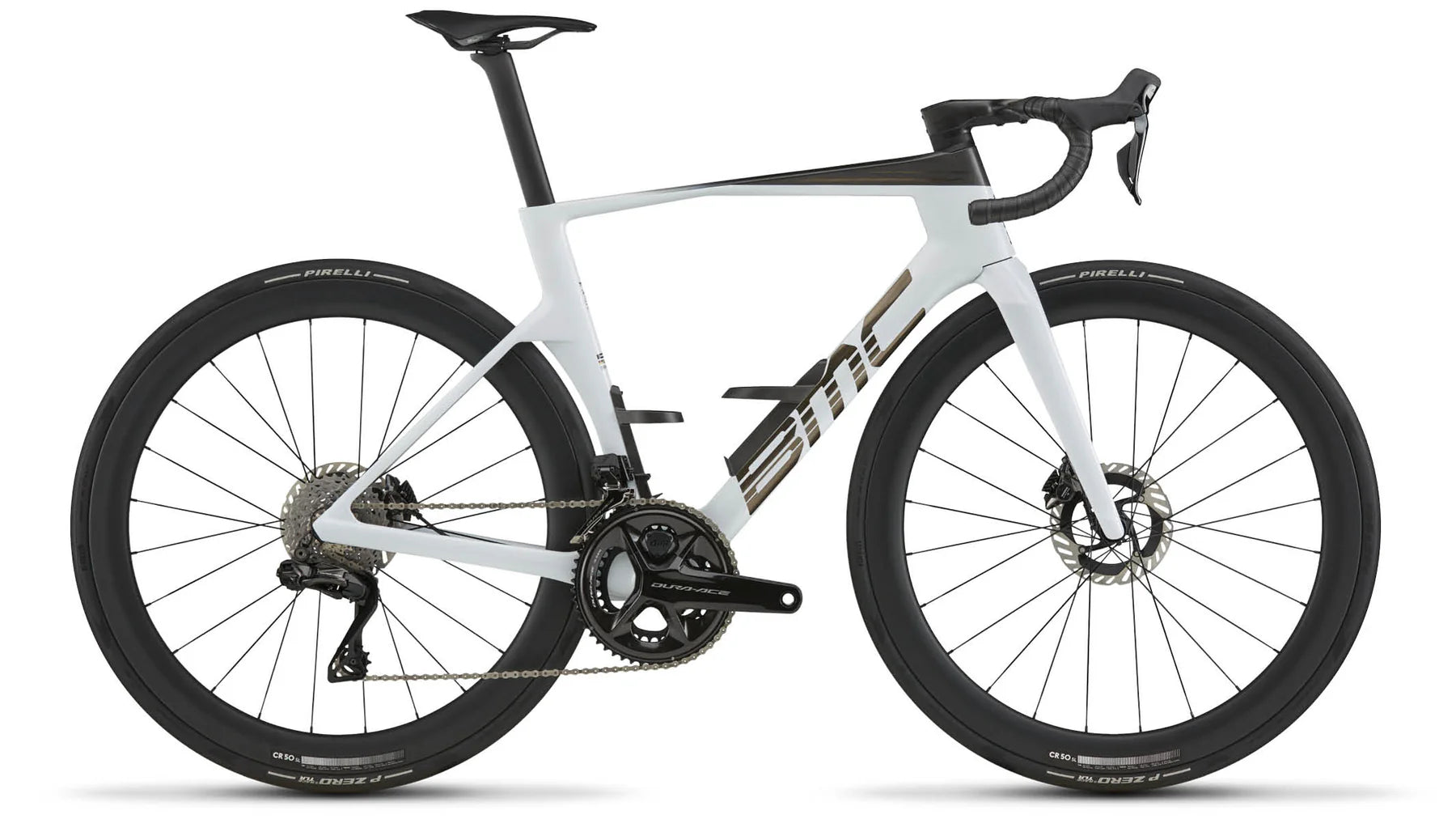

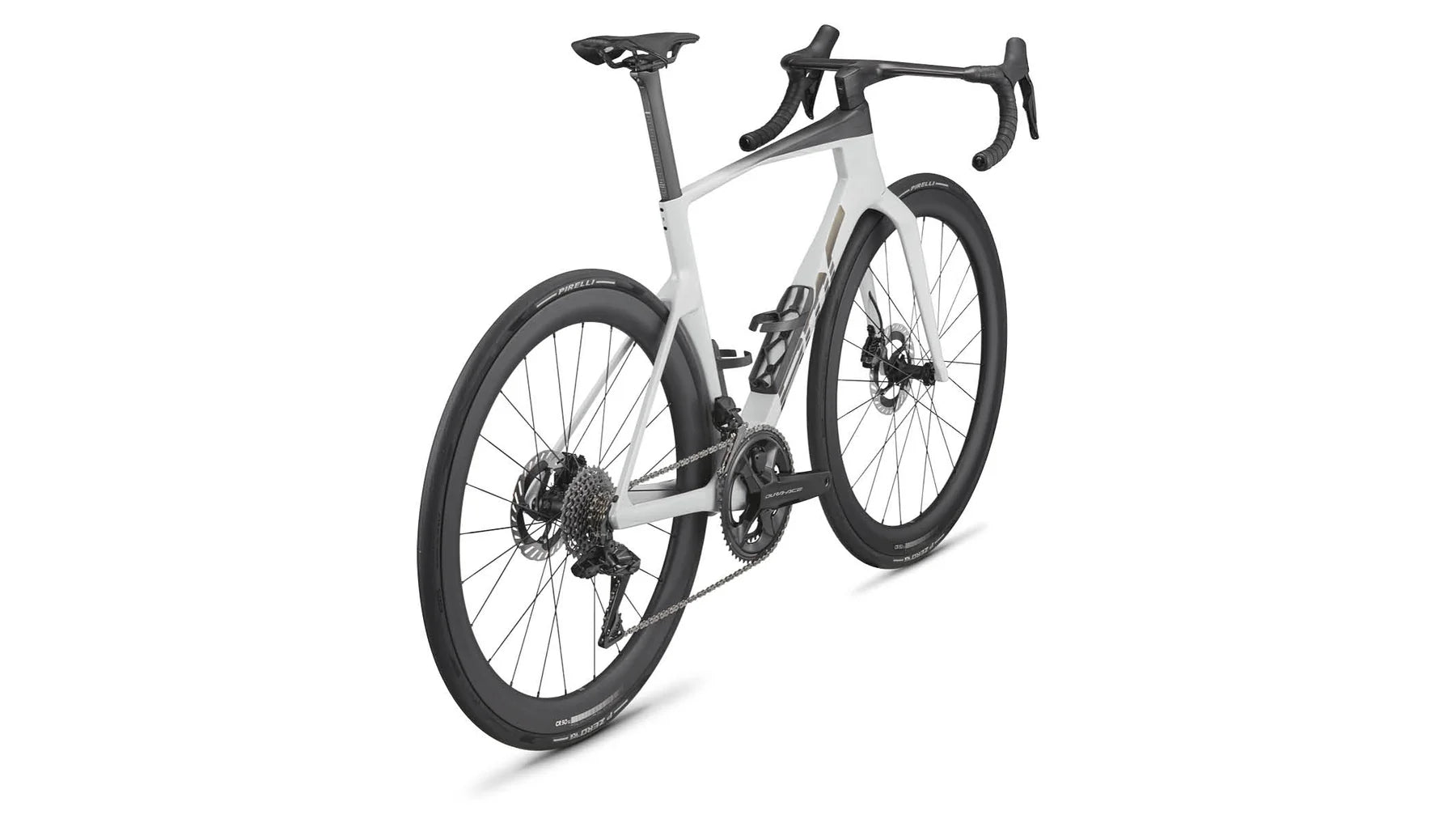

BMC Teammachine R 01 TWO Road Build
Frameset
Frame:

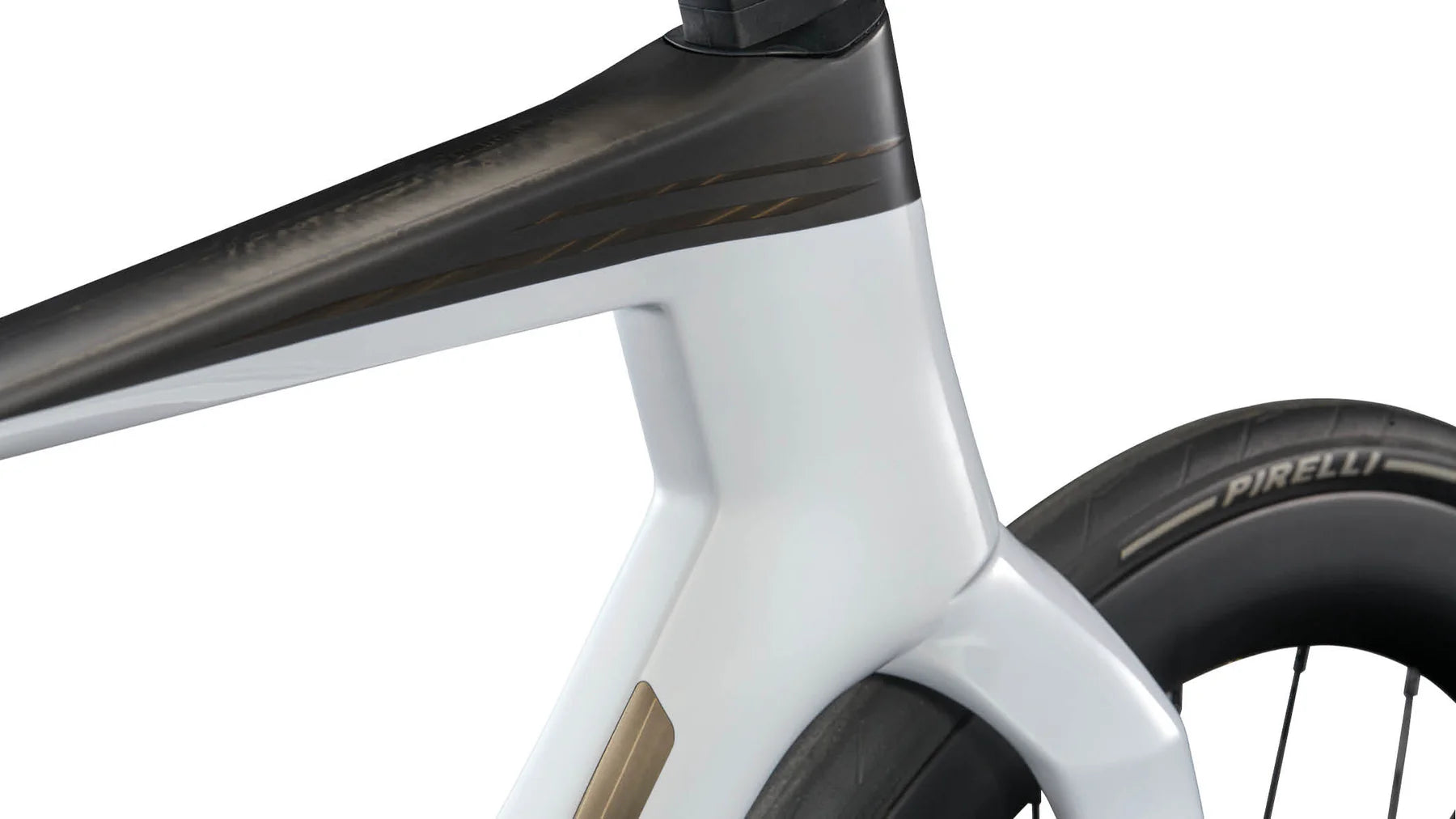

Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:

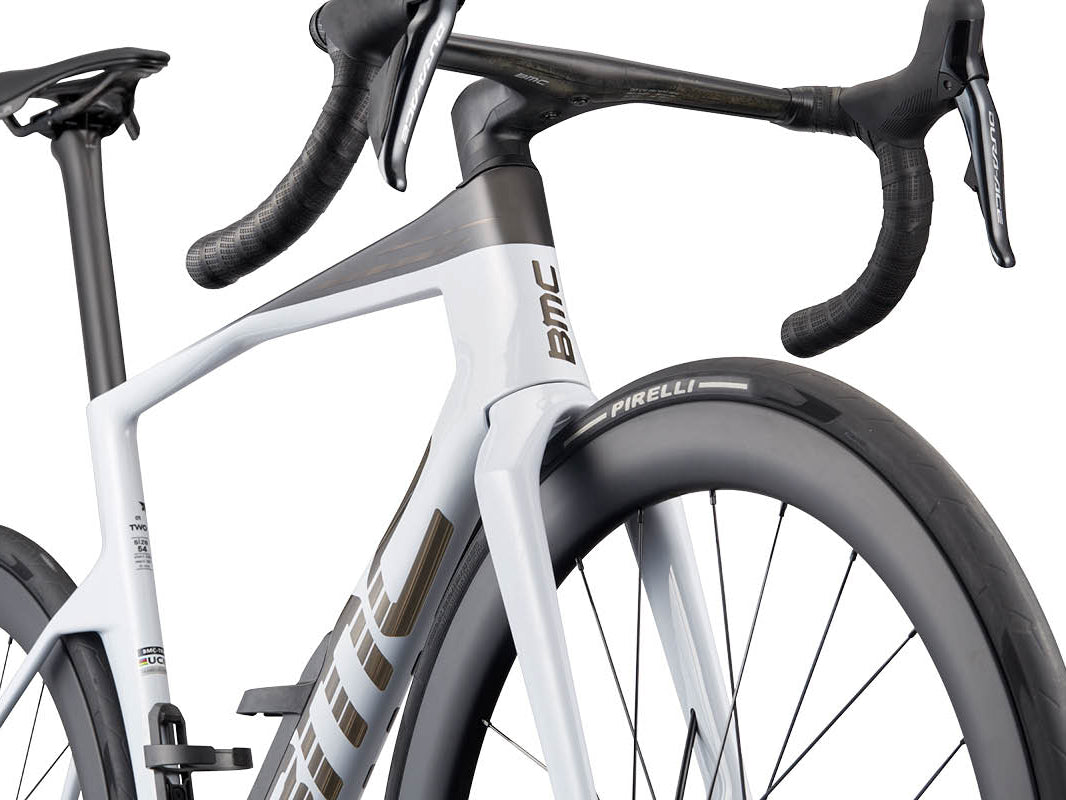

Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:

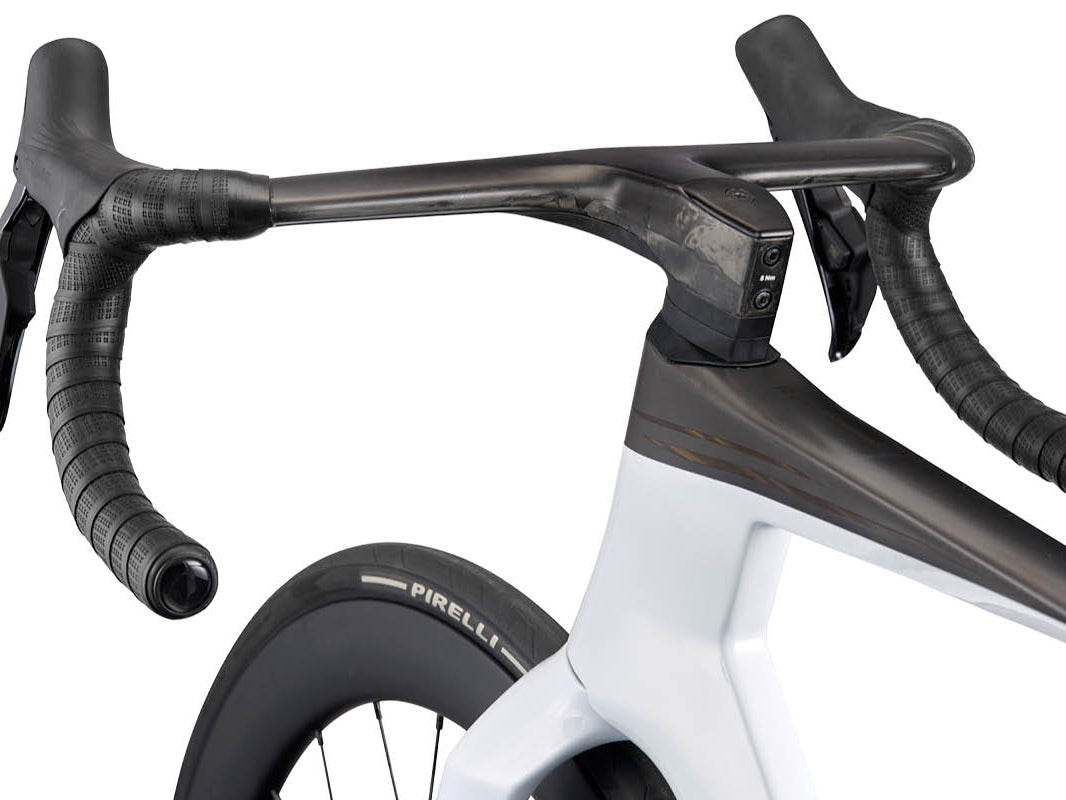

ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat

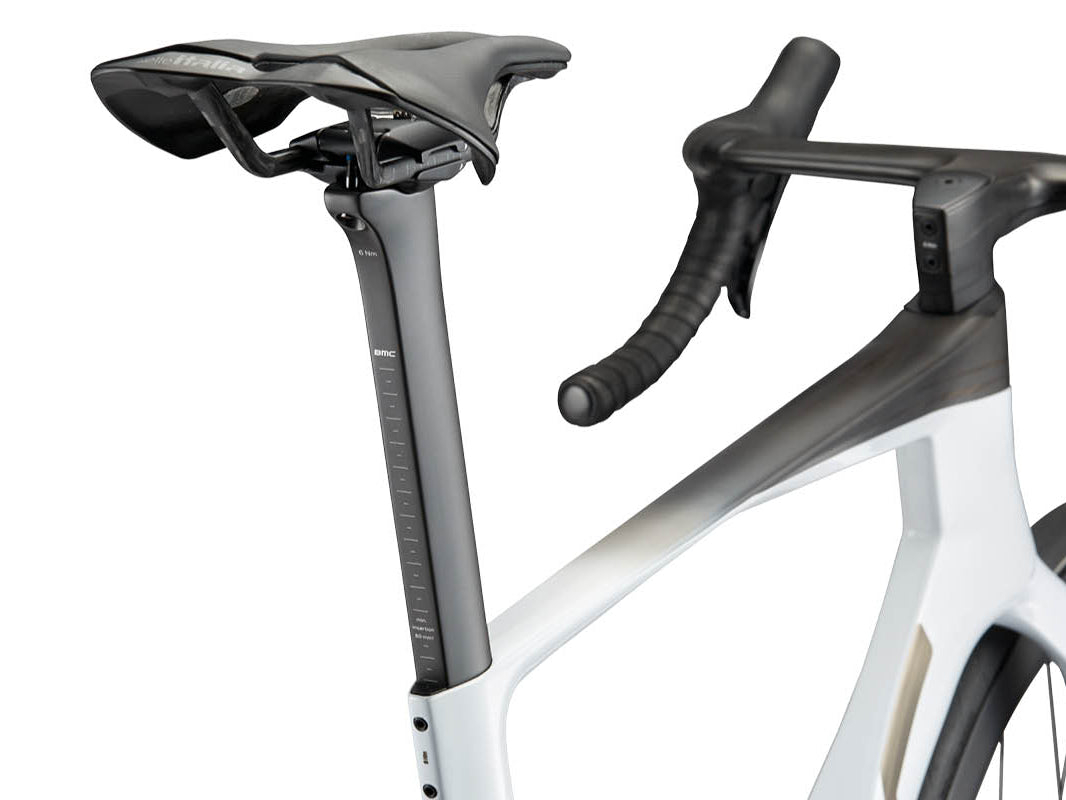

Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Selle Italia SLR Carbon | Advanced Carbon Rails | 145mm
Drivetrain
Crankset:
SHIMANO Dura Ace (FC-R9200)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Dual Side)
Cassette:
SHIMANO Dura Ace (CS-R9200)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M9100
Front Derailleur:
SHIMANO Dura Ace Di2 (FD-R9250)
Rear Derailleur:
SHIMANO Dura Ace Di2 (RD-R9250)
Shifters:
SHIMANO Dura Ace Di2 (ST-R9270)
Gears:
2 x 12
Bottom Bracket:

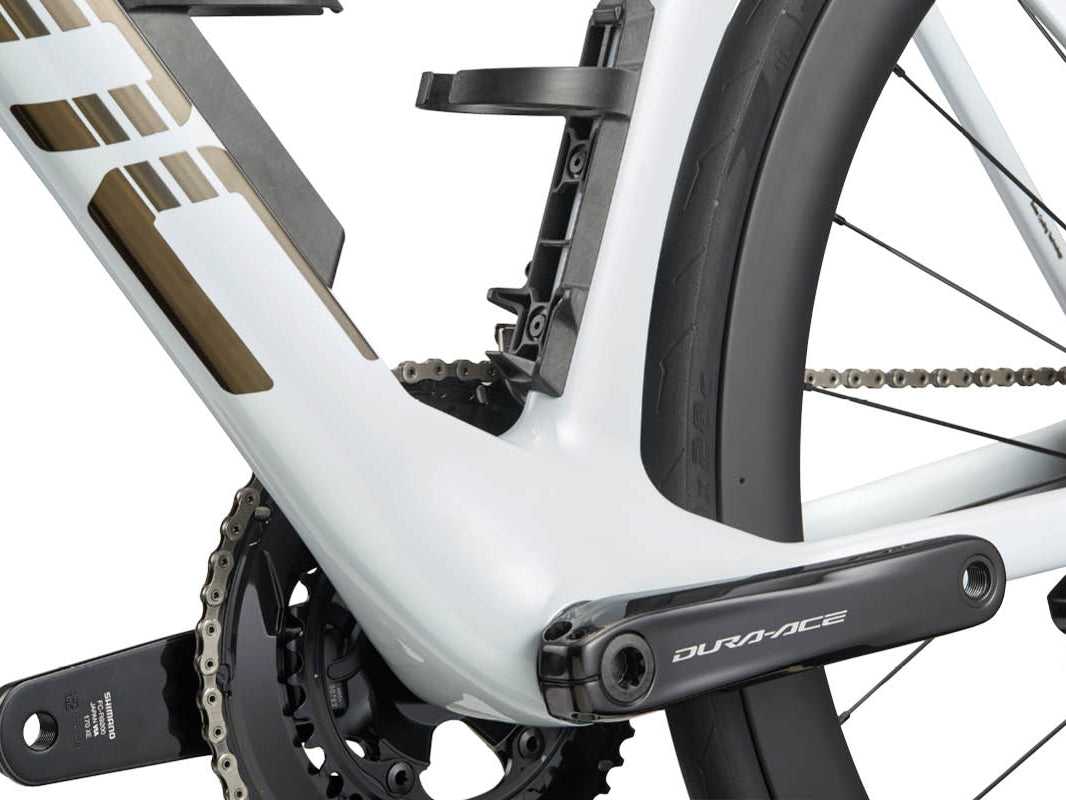

SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Dura Ace (BR-R9270)
Rotors:
SHIMANO Dura Ace (RT-CL900)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 50 SL Carbon | Tubeless Ready | 50mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:

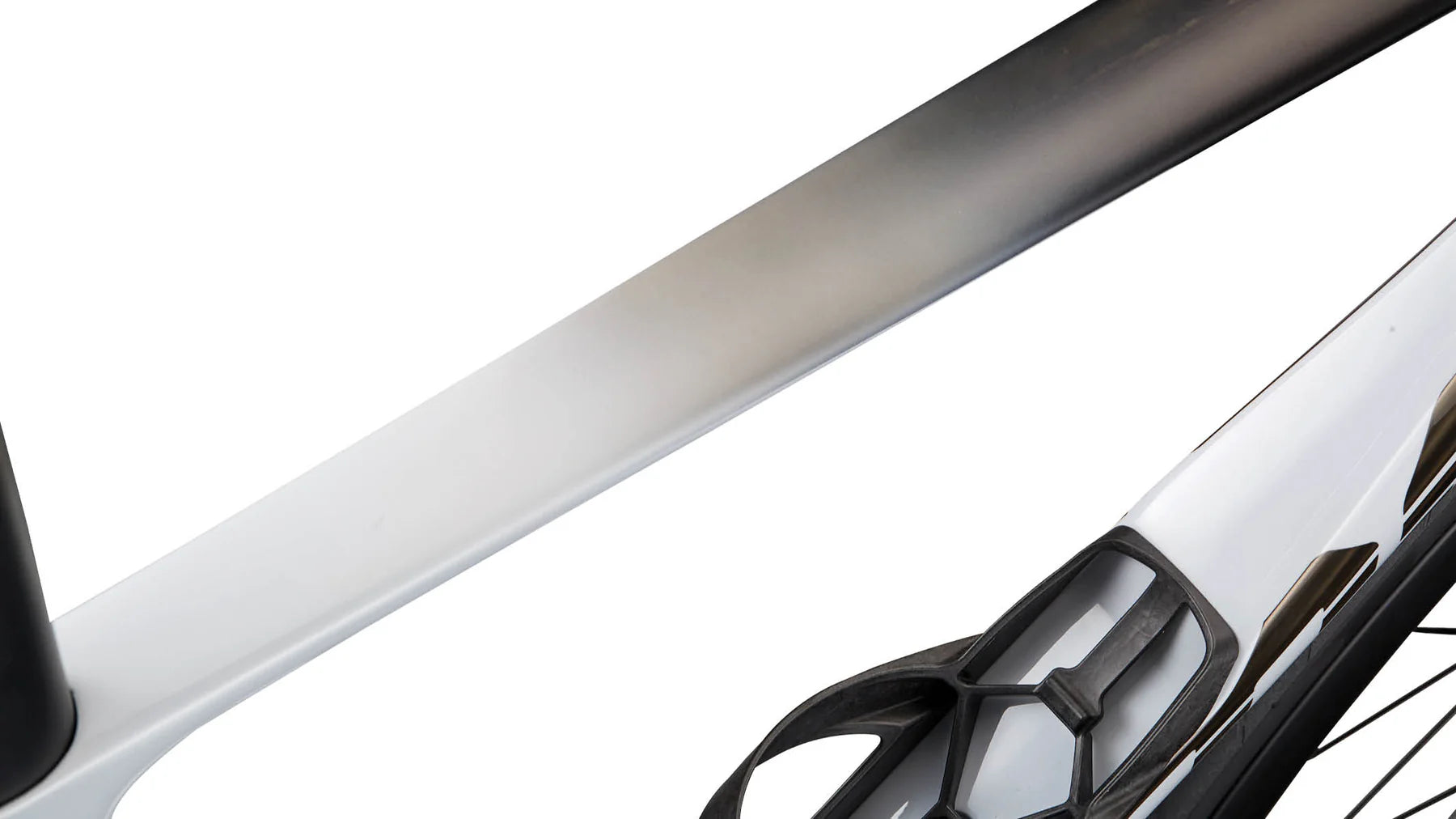

Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
7.3kg | Size 54 as pictured with all accessories
System Weight Limit:
110kg
Sizes and fit
Frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. Seatpost offset varies with frame size: 0mm offset on sizes 47-51 and 10mm offset on sizes 54-61.
Colours
Available in 2027 Off-White / Carbon.
Materials and construction
- Frame: Teammachine R 01 in 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle.
- Fork: Teammachine R 01 in 01 Premium Carbon, flat mount disc, 12 x 100mm thru-axle.
- Cockpit: ICS Carbon Aero Gen 2 one-piece full carbon cockpit (135mm drop, 81mm reach, 12° flare).
- Seatpost: Teammachine R 01 01 Premium Carbon; Selle Italia SLR Carbon saddle on advanced carbon rails, 145mm.
- Groupset: Shimano Dura-Ace Di2, 2 x 12 speed, 52-36T chainrings and 11-34T cassette, with 4iiii Precision Gen3+ dual-sided power meter.
- Wheelset: CR 50 SL Carbon tubeless-ready rims, 50mm depth, with Pirelli P Zero Race TLR 28mm tubeless tyres.
- Tyre clearance 30mm measured tyre; system weight limit 110kg.
- Claimed weight 7.3kg without pedals, size 54 as pictured with all accessories.
- In the box: Aerocore bottle cages, high and low ICS top cones, 3x10mm spacers, 2x3mm spacers.
