BMC Teammachine R 01 FOUR Road Build
Designed with Red Bull Advanced Technologies for race aerodynamics and real-world reliability.

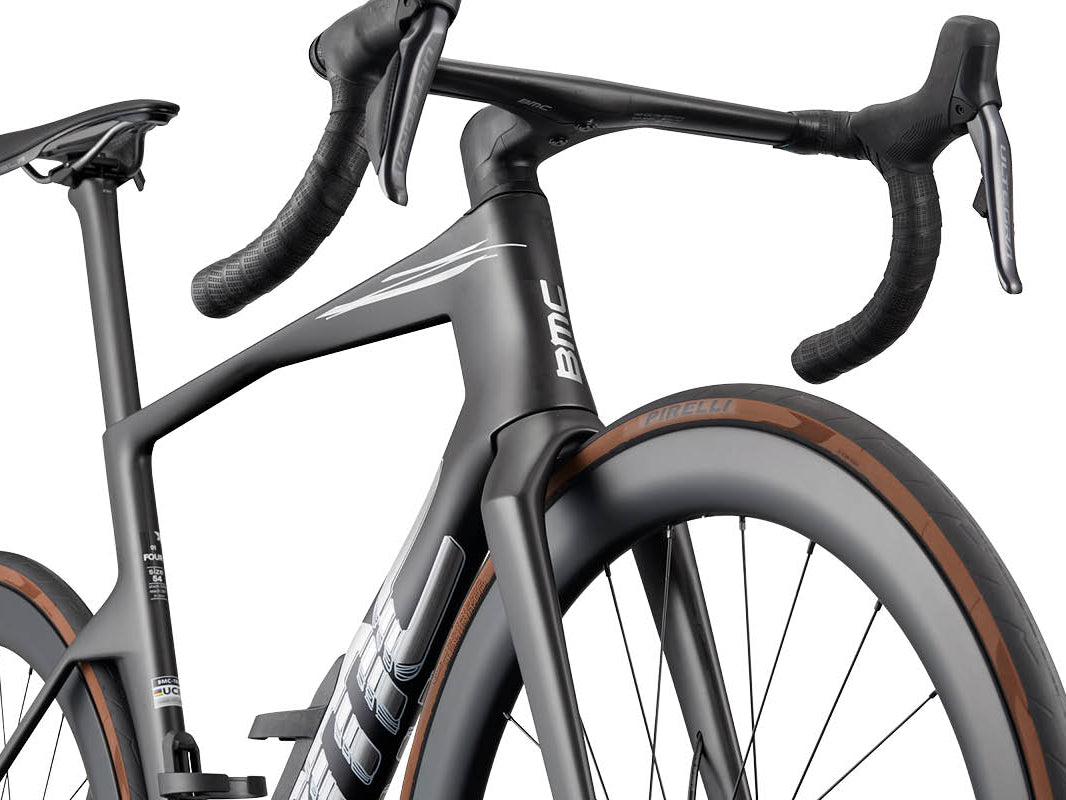

The Teammachine R 01 FOUR delivers pure race performance, shaped by data, testing and competition. Developed with Red Bull Advanced Technologies, it brings elite race engineering to every rider. Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. Shimano’s Ultegra Di2 groupset provides reliable, precise braking and shifting with a 4iii power meter for real-time performance insight. The ICS Carbon Aero Gen 2 one-piece cockpit and CR 50 Carbon tubeless-ready wheels complete a system designed to hold speed when it matters most. And then there’s the front end. The wide-stance fork isn’t just fast – it’s unmistakable. By calming turbulence and stabilizing airflow around the wheel, it gives the Teammachine R 01 FOUR an aerodynamic advantage visible from a distance and undeniable on the road.
Frameset
Frame:

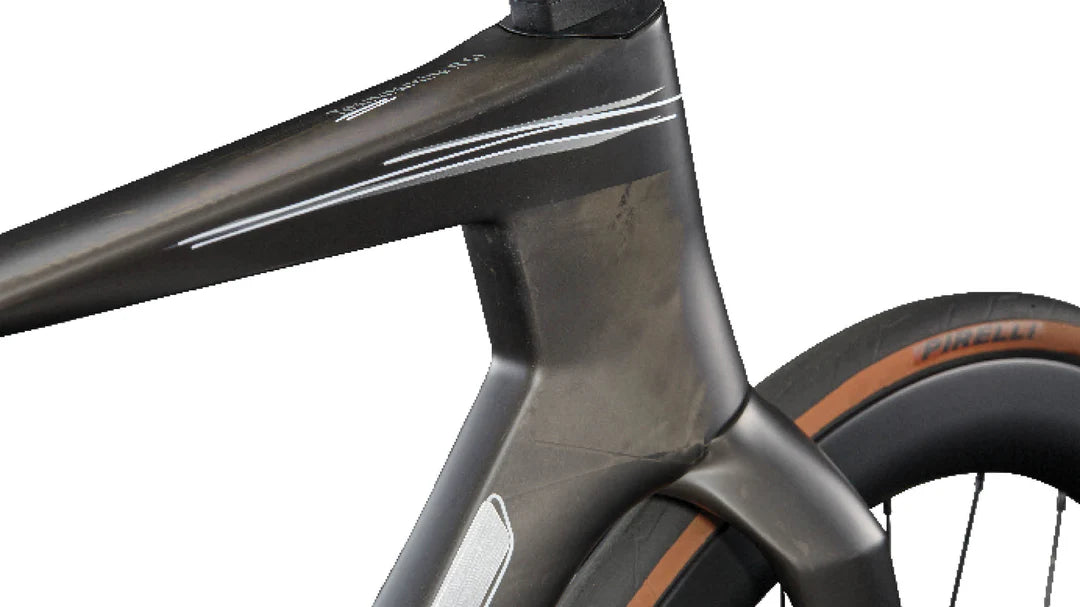

Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:

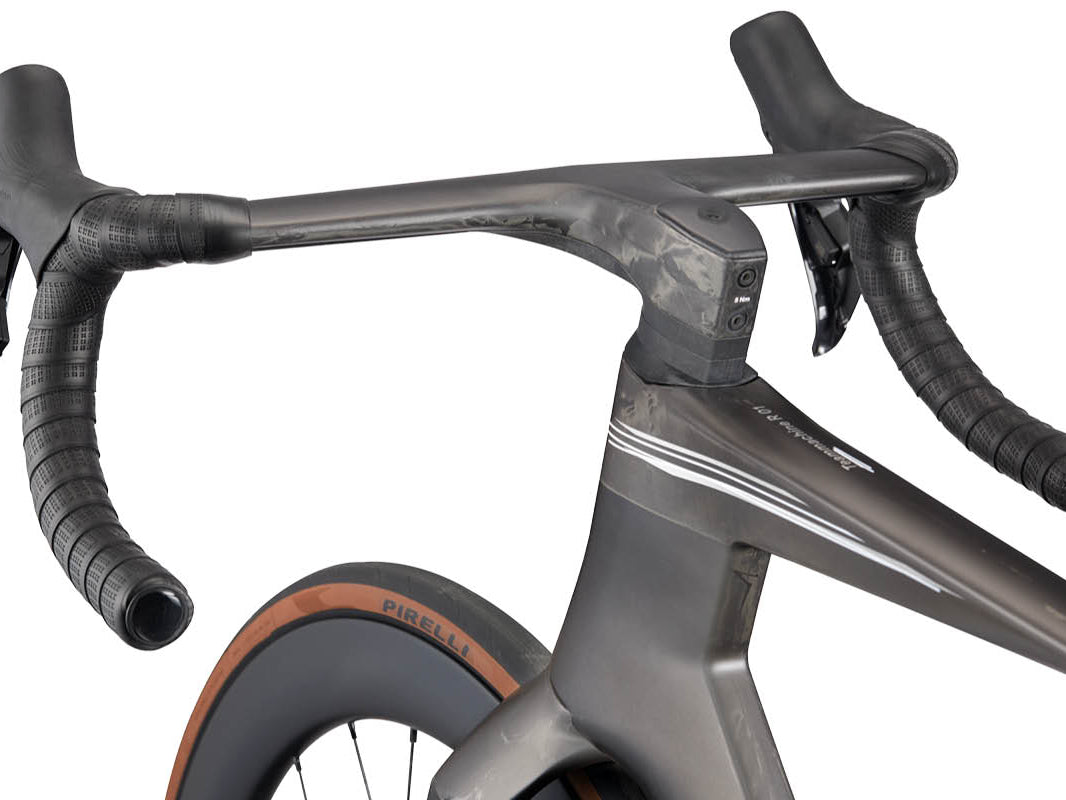

ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:

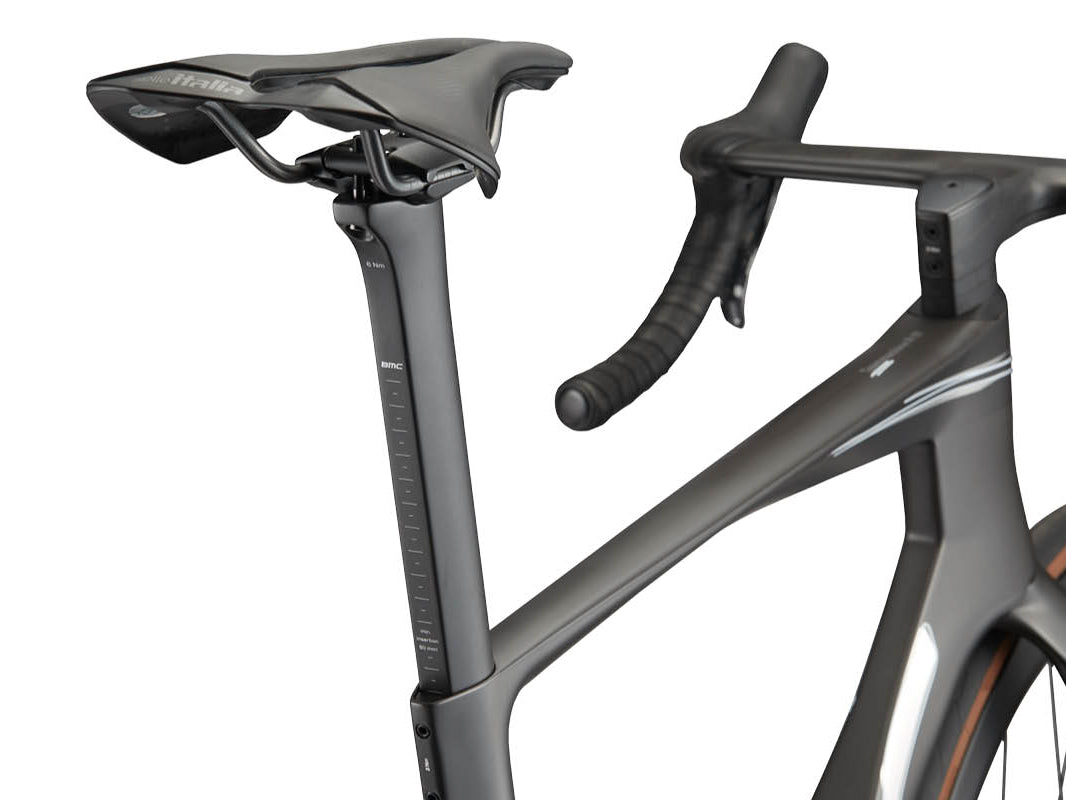

Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Selle Italia SLR Elite | Lightweight Tubular Steel Rails | 145mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Ultegra (CS-R8101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:

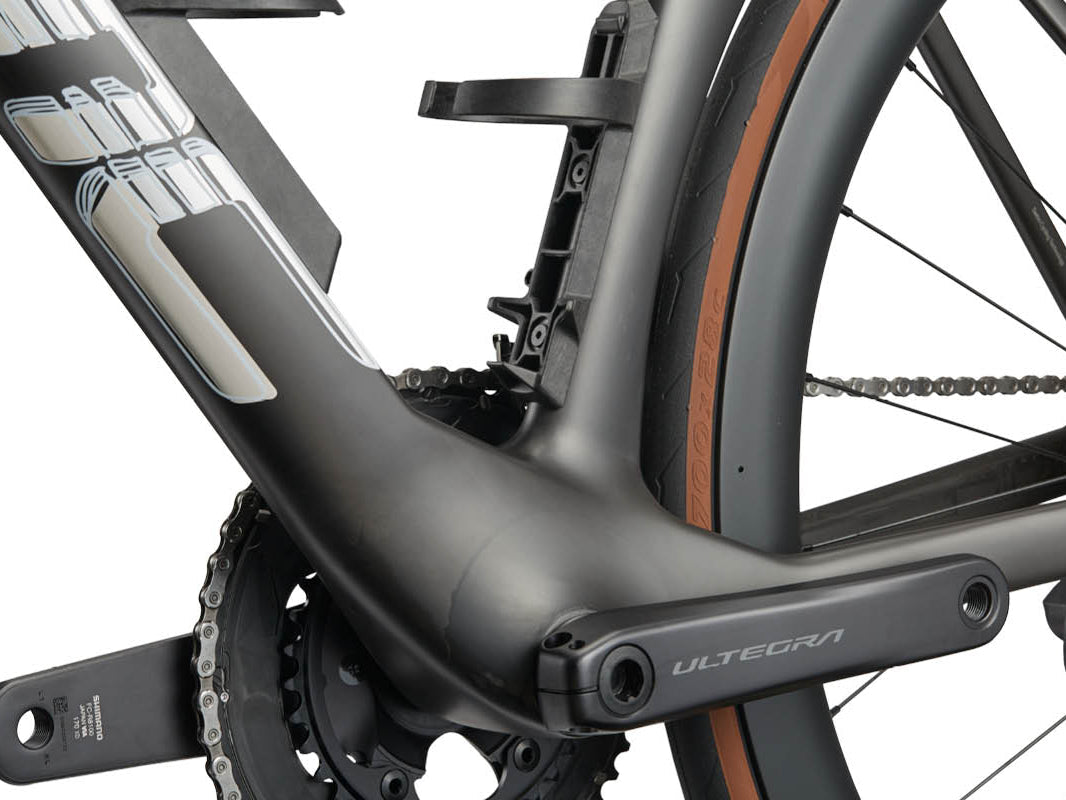

SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 50 Carbon | Tubeless Ready | 50mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:

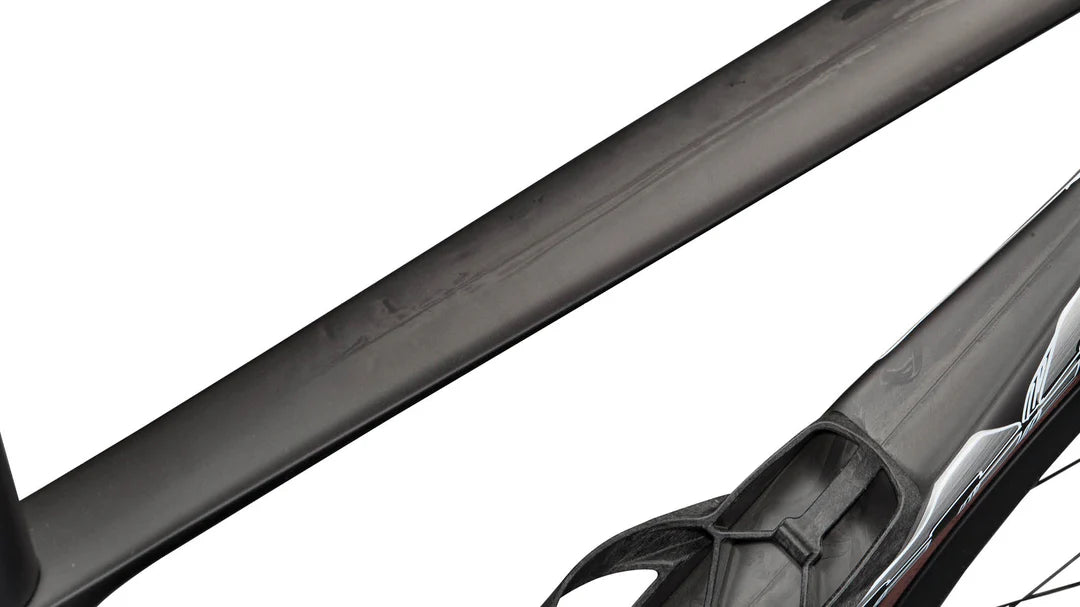

Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:

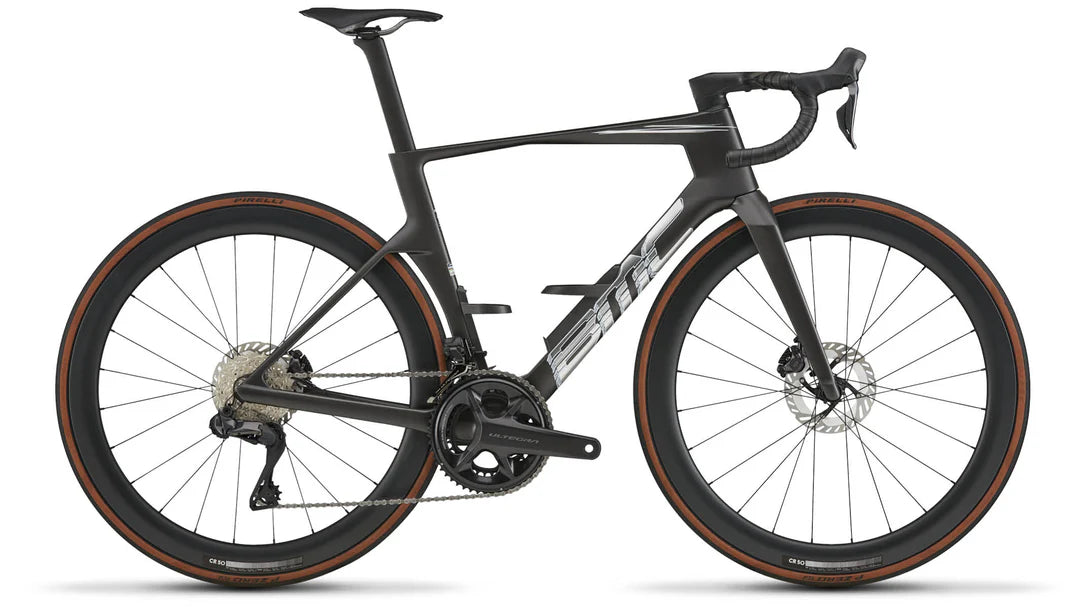

7.6kg | Size 54 as pictured with all accessories
System Weight Limit:
110kg
Sizes and fit
Frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. Seatpost offset varies with frame size: 0mm offset on sizes 47-51 and 10mm offset on sizes 54-61.
Colours
Available in 2027 Carbon Doodle.
Materials and construction
- Frame: Teammachine R 01 in 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, stealth dropout design, flat mount disc, 12 x 142mm thru-axle.
- Fork: Teammachine R 01 in 01 Premium Carbon, flat mount disc, 12 x 100mm thru-axle.
- Cockpit: ICS Carbon Aero Gen 2 one-piece full carbon cockpit (135mm drop, 81mm reach, 12° flare).
- Seatpost: Teammachine R 01 01 Premium Carbon; Selle Italia SLR Elite saddle on lightweight tubular steel rails, 145mm.
- Groupset: Shimano Ultegra Di2, 2 x 12 speed, 52-36T chainrings and 11-34T cassette, with 4iiii Precision Gen3+ non-drive-side power meter.
- Wheelset: CR 50 Carbon tubeless-ready rims, 50mm depth, with Pirelli P Zero Race TLR 28mm tubeless tyres.
- Tyre clearance 30mm measured tyre; system weight limit 110kg.
- Claimed weight 7.6kg without pedals, size 54 as pictured with all accessories.
- In the box: Aerocore bottle cages, high and low ICS top cones, 3x10mm spacers, 2x3mm spacers.
