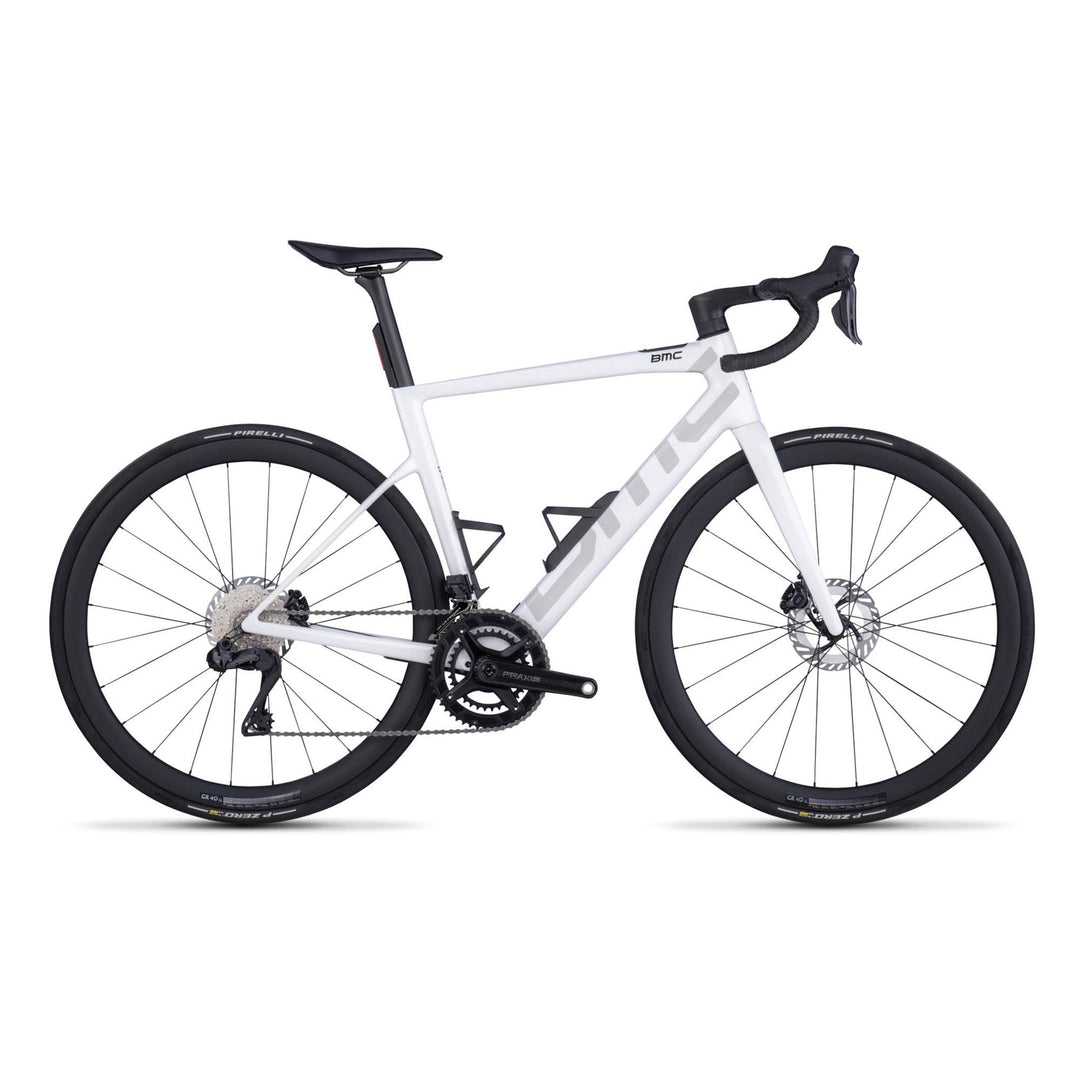

BMC Teammachine 01 AMP TWO Road Build
BM30008176
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
The Teammachine 01 AMP TWO takes everything you know about a BMC road bike and turns it up to 160%. The 01 Premium Carbon frame stays feather-light and razor-sharp, and the seamlessly integrated TQ HPR40 system adds up to 200 watts of assistance.
It handles like a Teammachine: precise, confident and fast, with TCC Race compliance on rough roads. Shimano Ultegra Di2 with discreet hood-mounted assist control, the ICS Carbon Evo cockpit and CR 40 carbon tubeless-ready wheels complete the build.
Highlights
- Teammachine 01 AMP frame and fork in 01 Premium Carbon
- TQ HPR40 drive unit with 290Wh integrated battery
- Shimano Ultegra Di2 2x12
- ICS Carbon Evo one-piece carbon cockpit
- CR 40 Carbon wheels with Pirelli P Zero Race TLR RS 28mm tubeless tyres
- Clearance for 32mm tyres
- 10.2kg (size 54, as pictured)
Sizes and fit
Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.
Colours
Metallic White.
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
Frameset
- Frame: Teammachine 01 AMP, 01 Premium Carbon with Aerocore Design, Integrated Battery, ICS Technology Stealth Cable Routing, Stealth Dropout Design, TCC Race Compliance Level, Flat Mount Disc, 12 x 142mm Thru-Axle
- Fork: Teammachine 01 AMP, 01 Premium Carbon, ICS Technology Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12 x 100mm Thru-Axle, 48mm offset Size 47-51, 43mm offset Size 54-61
E-bike system
- Drive unit: TQ HPR40
- Battery: TQ Battery, 290Wh, certified by UL LLC
- Display: TQ colour display, 2in O-LED, Bluetooth / ANT+
- Control: Mode change with Shimano STI hood buttons
- Charger: TQ 4A Charger
Cockpit
- Handlebar: ICS Carbon Evo, One Piece Full Carbon Cockpit, 127mm drop, 70mm reach, 8° flare
- Bar tape: BMC Tacky 3mm
Seat
- Seatpost: Teammachine SLR 01 Gen 5, 01 Premium Carbon Aero Shaped Seatpost, 0mm Offset Size 47-51 and 10mm Offset Size 54-61
- Saddle: Fizik Vento Argo R5, 140mm
Drivetrain
- Crankset: Praxis Type-5 eCrank Carbon Road, LT2 chainrings, 46mm chainline
- Chainrings: 50-34T
- Power meter: TQ drive unit power meter
- Cassette: Shimano Ultegra (CS-R8101)
- Cassette range: 11-34T
- Chain: Shimano CN-M8100
- Front derailleur: Shimano Ultegra Di2 (FD-R8150)
- Rear derailleur: Shimano Ultegra Di2 (RD-R8150)
- Shifters: Shimano Ultegra Di2 (ST-R8170)
- Gearing: 2 x 12
Brakes
- Brakes: Shimano Ultegra (BR-R8170)
- Rotors: Shimano Ultegra (RT-CL800)
- Rotor size: 160 / 160mm
Wheels and tyres
- Rims: CR 40 Carbon, Tubeless Ready, 40mm
- Hubs: TXC-812 & TXC-240A Center Lock
- Tyres: Pirelli P Zero Race TLR RS, Tubeless, 28mm
Accessories
- In the box: Integrated Bottle Cages, Integrated Rear Light 20 StVZO, Computer mount for Garmin, Wahoo and GoPro mount
Additional information
- Tyre clearance: 32mm measured tyre
- Weight: 10.2kg, Size 54 as pictured with all accessories
- System weight limit: 110kg
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 526 | 550 | 570 | 585 | 604 | 628 |
| Reach (mm) | 367 | 377 | 386 | 392 | 401 | 409 |
| Seat tube length (mm) | 422 | 464 | 500 | 510 | 530 | 555 |
| Top tube (effective) (mm) | 523 | 540 | 555 | 565 | 587 | 601 |
| Head tube length (mm) | 118 | 143 | 160 | 176 | 196 | 221 |
| Head tube angle (°) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Seat tube angle (°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.0 | 73.0 |
| Chainstay length (mm) | 412.5 | 412.5 | 412.5 | 412.5 | 412.5 | 412.5 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Wheelbase (mm) | 974 | 992 | 995 | 1006 | 1021 | 1036 |
| Front centre (mm) | 573 | 591 | 594 | 605 | 620 | 635 |
| Fork length (mm) | 372.5 | 372.5 | 372.5 | 372.5 | 372.5 | 372.5 |
| Fork offset (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail (mm) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Standover (mm) | 728 | 758 | 788 | 800 | 818 | 840 |
