BMC Roadmachine 01 THREE Road Build
BM30008031
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
The Roadmachine 01 THREE is built on BMC's ultra-light 01 Premium Carbon frame for immediate responsiveness, refined compliance and low weight. Made for all-day tarmac and confident detours onto rougher roads, it combines smart compliance with generous tyre clearance.
Shimano Ultegra Di2 takes care of fast, reliable shifting, with a 4iiii power meter for precise pacing and training. The ICS 2 stem and carbon bars give an adjustable, clean front end, and CE 40 carbon tubeless-ready wheels keep things fast, with integrated storage and a rear light built in.
Highlights
- Roadmachine 01 Gen 3 frame and fork in 01 Premium Carbon
- Shimano Ultegra Di2 2x12 with 4iiii Precision power meter
- BMC ICS 2 integrated stem with carbon handlebar
- CE 40 Carbon wheels with Vittoria Corsa N.EXT 32mm tubeless tyres
- Frame clearance for 40mm tyres (34mm with a front derailleur fitted)
- 8.0kg without pedals (size 54)
Sizes and fit
Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.
Colours
Arctic Silver.
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
Frameset

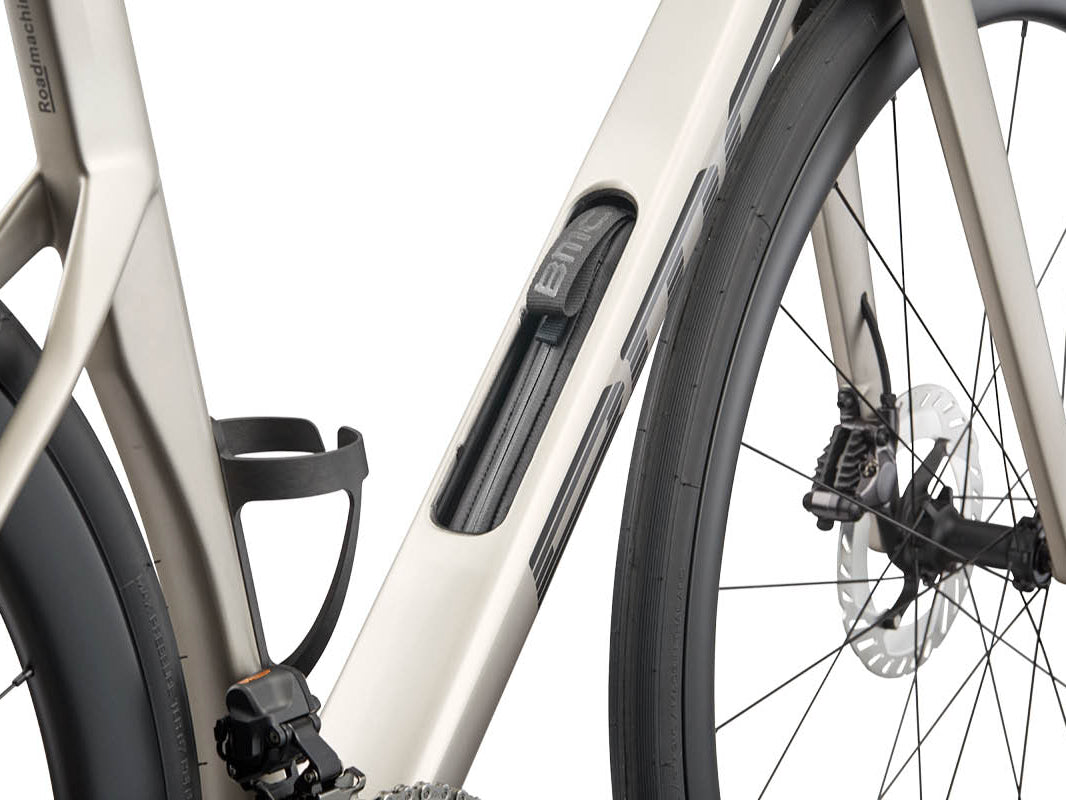

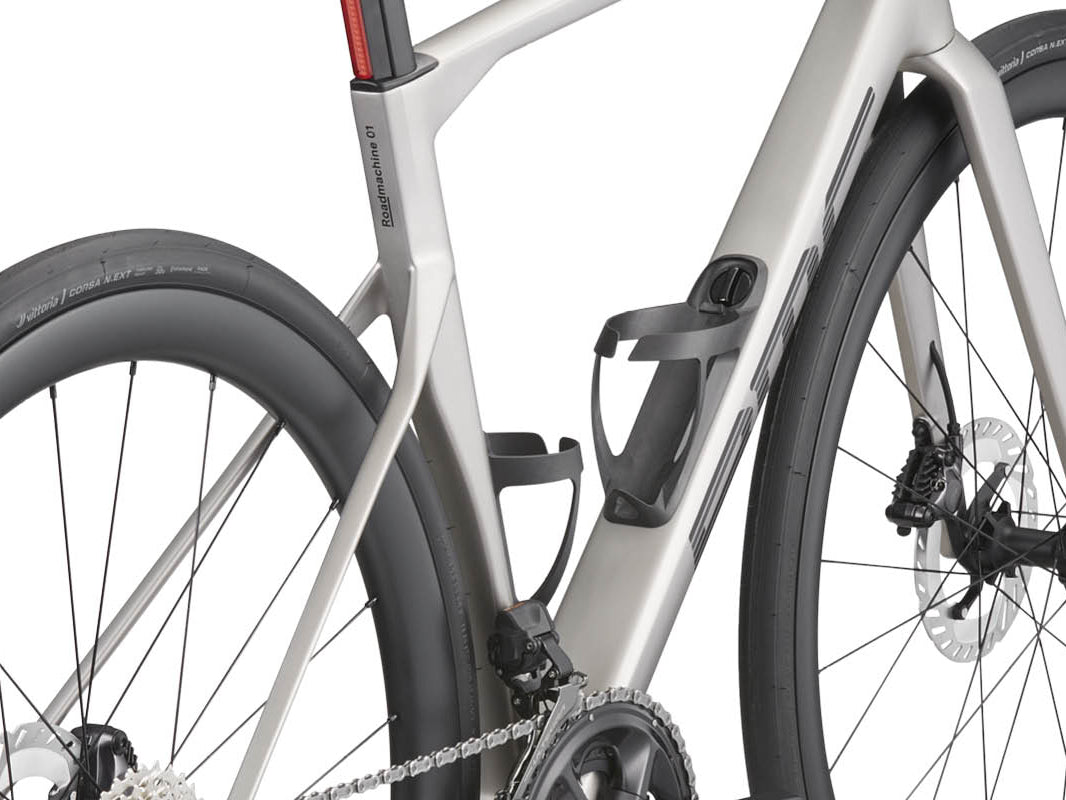

- Frame: Roadmachine 01 Gen 3, 01 Premium Carbon with Tuned Compliance Concept Endurance, ICS Technology Stealth Cable Routing, Integrated Downtube Storage, Full Mount - UDH, 12 x 142mm Thru-Axle
- Fork: Roadmachine 01 Gen 3, 01 Premium Carbon with Tuned Compliance Concept Endurance, ICS Technology stealth cable routing, Flat Mount Disc, 12 x 100mm Thru-Axle, 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Cockpit

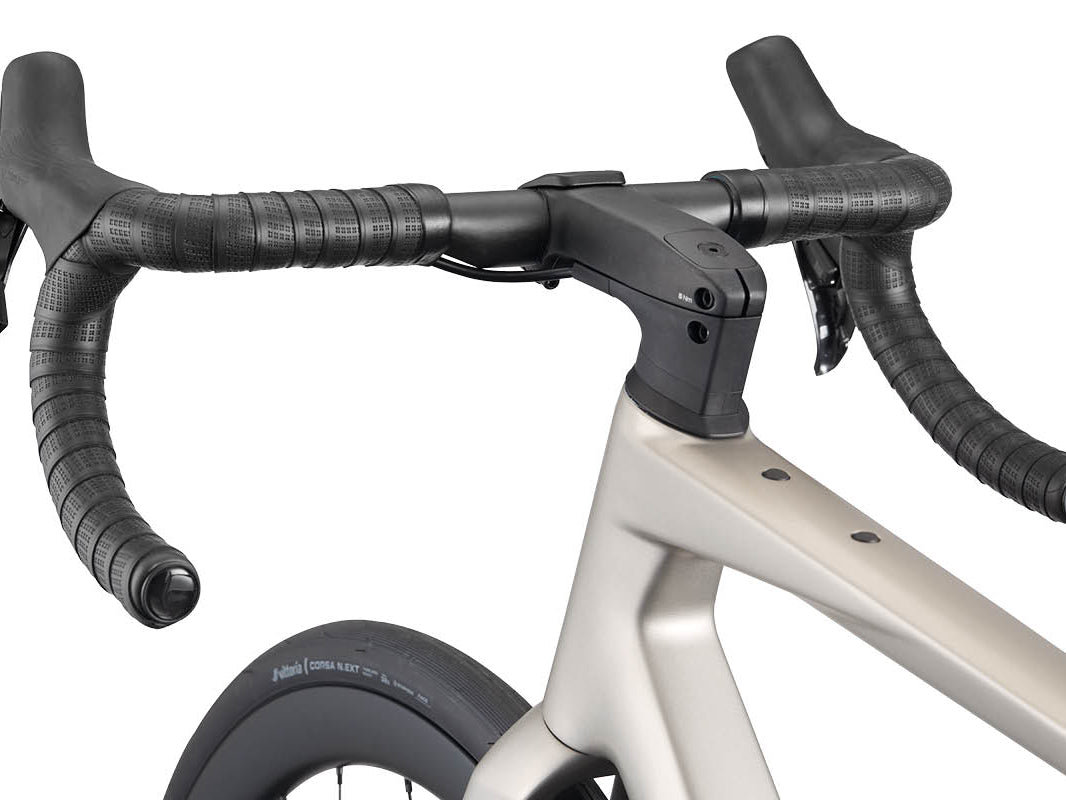

- Stem: BMC ICS 2, Integrated Cockpit System Technology
- Handlebar: BMC HB D4 01, 01 Premium Carbon, Endurance Geometry, 125mm drop, 70mm reach, 12° flare
- Bar tape: BMC Tacky 3mm
Seat
- Seatpost: Roadmachine 01 Premium Carbon D-Shaped Seatpost, 0mm Offset Size 47-51 and 15mm Offset Size 54-61, D-Fender Compatible
- Saddle: Selle Italia Novus Boost Evo Superflow, Manganese Rail, 145mm
Drivetrain
- Crankset: Shimano Ultegra (FC-R8100)
- Chainrings: 50-34T
- Power meter: 4iiii Precision Gen3+ Power Meter (Non-Drive Side)
- Cassette: Shimano Ultegra (CS-R8101)
- Cassette range: 11-34T
- Chain: Shimano CN-M8100
- Front derailleur: Shimano Ultegra Di2 (FD-R8150)
- Rear derailleur: Shimano Ultegra Di2 (RD-R8150)
- Shifters: Shimano Ultegra Di2 (ST-R8170)
- Gearing: 2 x 12
- Bottom bracket: Shimano Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
- Brakes: Shimano Ultegra (BR-R8170)
- Rotors: Shimano Ultegra (RT-CL800)
- Rotor size: 160 / 160mm
Wheels and tyres
- Rims: CE 40 Carbon, Tubeless Ready, 40mm
- Hubs: TXC-812 & TXC-240A Center Lock
- Tyres: Vittoria Corsa N.EXT, Tubeless, 32mm
Accessories

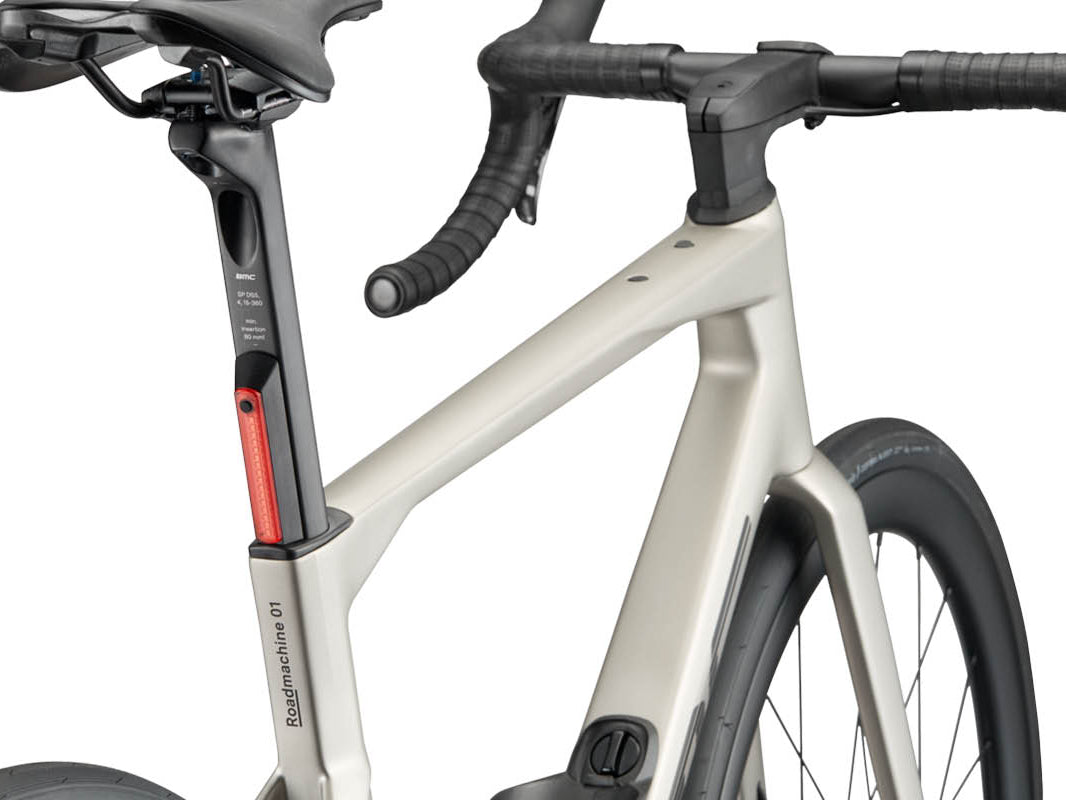

- In the box: Integrated Rear Light 25, Roadmachine Bottle Cages, Storage Pouch
Additional information
- Tyre clearance: Up to 40mm measured (frameset clearance), limited to 34mm measured by the front derailleur
- Weight: 8.0kg, Size 54 as pictured with all accessories
- System weight limit: 110kg
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Seat tube length (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Top tube (effective) (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Head tube length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head tube angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Seat tube angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Chainstay length (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
| Front centre (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Fork length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Standover (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
Same frame geometry across Roadmachine 01 and Roadmachine models.
