BMC Roadmachine 01 ONE Road Build
BM30008017
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
Buying from outside the UK? We deliver bikes worldwide, fully boxed and insured. Prices are shown in your currency without UK VAT. See delivery rates
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews

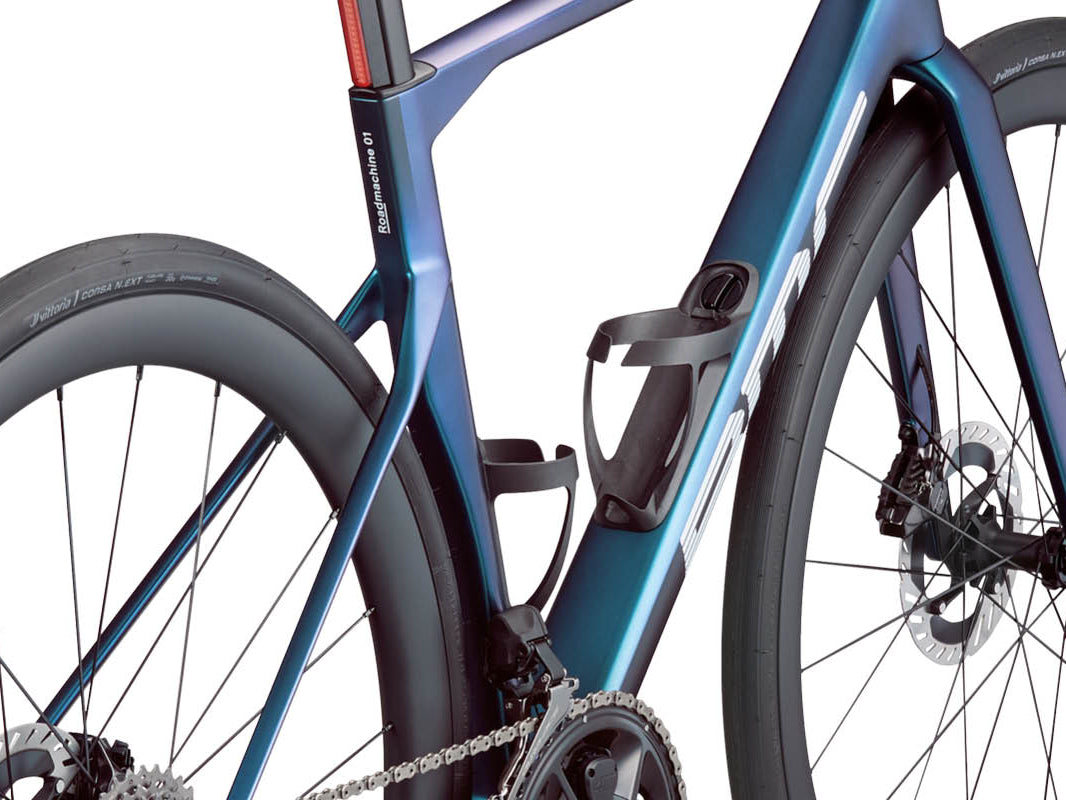

The Roadmachine 01 ONE is BMC's flagship all-road bike, built on the ultra-light 01 Premium Carbon frame for immediate responsiveness, refined compliance and very low weight. Room for bigger tyres and TCC Endurance compliance turn broken tarmac and light gravel into all-road territory.

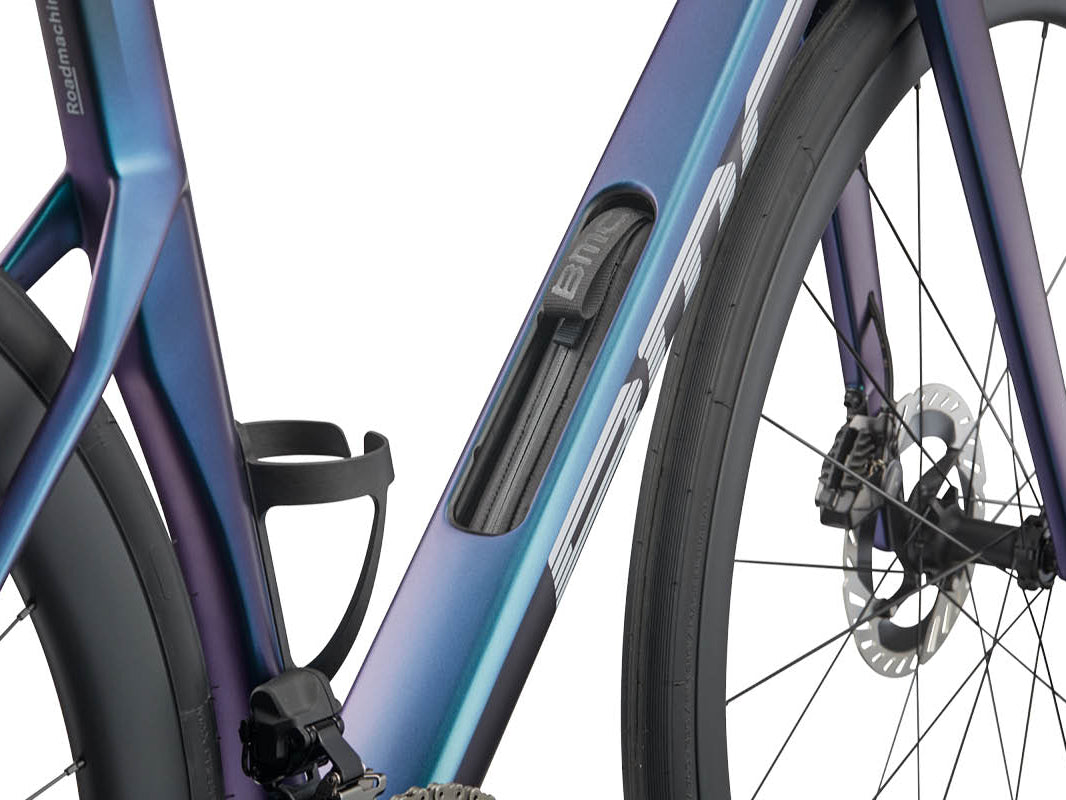

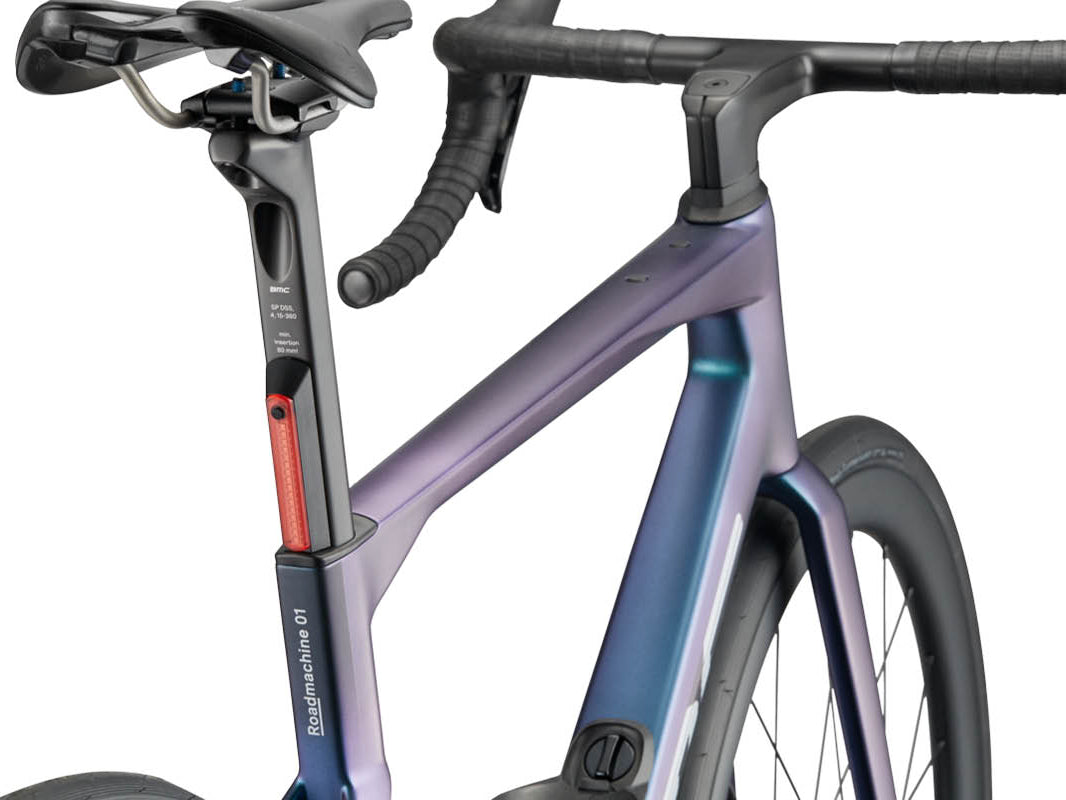

Shimano Dura-Ace Di2 with a dual-sided 4iiii power meter brings pro-level efficiency to every climb, paired with the ICS Carbon Evo cockpit and CE 40 SL carbon wheels. Hidden cables, integrated down tube storage and an integrated rear light complete a bike that balances speed, precision and comfort.
Highlights
- Roadmachine 01 Gen 3 frame and fork in 01 Premium Carbon
- Shimano Dura-Ace Di2 2x12 with 4iiii Precision power meter (dual-sided)

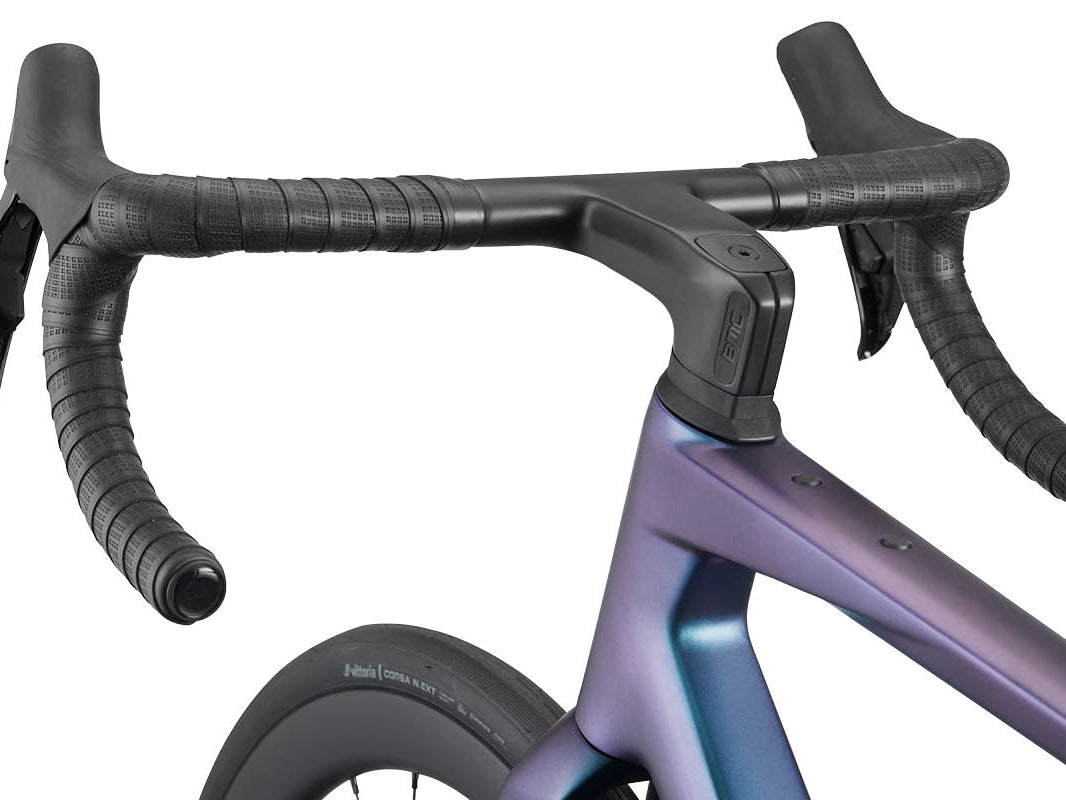

- ICS Carbon Evo one-piece carbon cockpit
- CE 40 SL Carbon wheels with Vittoria Corsa N.EXT 32mm tubeless tyres
- Frame clearance for 40mm tyres (36mm with a front derailleur fitted)
- 7.7kg without pedals (size 54)
Sizes and fit
Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.
Colours
Chameleon Petrol.
Frameset
- Frame: Roadmachine 01 Gen 3, 01 Premium Carbon with Tuned Compliance Concept Endurance, ICS Technology Stealth Cable Routing, Integrated Downtube Storage, Full Mount - UDH, 12 x 142mm Thru-Axle
- Fork: Roadmachine 01 Gen 3, 01 Premium Carbon with Tuned Compliance Concept Endurance, ICS Technology stealth cable routing, Flat Mount Disc, 12 x 100mm Thru-Axle, 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Cockpit
- Handlebar: ICS Carbon Evo, One Piece Full Carbon Cockpit, 127mm drop, 70mm reach, 8° flare
- Bar tape: BMC Tacky 3mm
Seat
- Seatpost: Roadmachine 01 Premium Carbon D-Shaped Seatpost, 0mm Offset Size 47-51 and 15mm Offset Size 54-61, D-Fender Compatible
- Saddle: Selle Italia Novus Boost Evo Superflow, TI316 Rail, 145mm
Drivetrain
- Crankset: Shimano Dura-Ace (FC-R9200)
- Chainrings: 50-34T
- Power meter: 4iiii Precision Gen3+ Power Meter (Dual Side)
- Cassette: Shimano Dura-Ace (CS-R9200)
- Cassette range: 11-34T
- Chain: Shimano CN-M9100
- Front derailleur: Shimano Dura-Ace Di2 (FD-R9250)
- Rear derailleur: Shimano Dura-Ace Di2 (RD-R9250)
- Shifters: Shimano Dura-Ace Di2 (ST-R9270)
- Gearing: 2 x 12
- Bottom bracket: Shimano Dura-Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Brakes
- Brakes: Shimano Dura-Ace (BR-R9270)
- Rotors: Shimano Dura-Ace (RT-CL900)
- Rotor size: 160 / 160mm
Wheels and tyres
- Rims: CE 40 SL Carbon, Tubeless Ready, 40mm
- Hubs: TXC-812 & TXC-240A Center Lock
- Tyres: Vittoria Corsa N.EXT, Tubeless, 32mm
Accessories
- In the box: Integrated Rear Light 25, Roadmachine Bottle Cages, Storage Pouch, Computer mount for Garmin, Wahoo and GoPro mount
Additional information
- Tyre clearance: Up to 40mm measured (frameset clearance), limited to 36mm measured by the front derailleur
- Weight: 7.7kg, Size 54 as pictured with all accessories
- System weight limit: 110kg
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Seat tube length (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Top tube (effective) (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Head tube length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head tube angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Seat tube angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Chainstay length (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
| Front centre (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Fork length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Standover (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
Same frame geometry across Roadmachine 01 and Roadmachine models.
