BMC Roadmachine 01 AMP ONE Road Build
BM30008189
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.

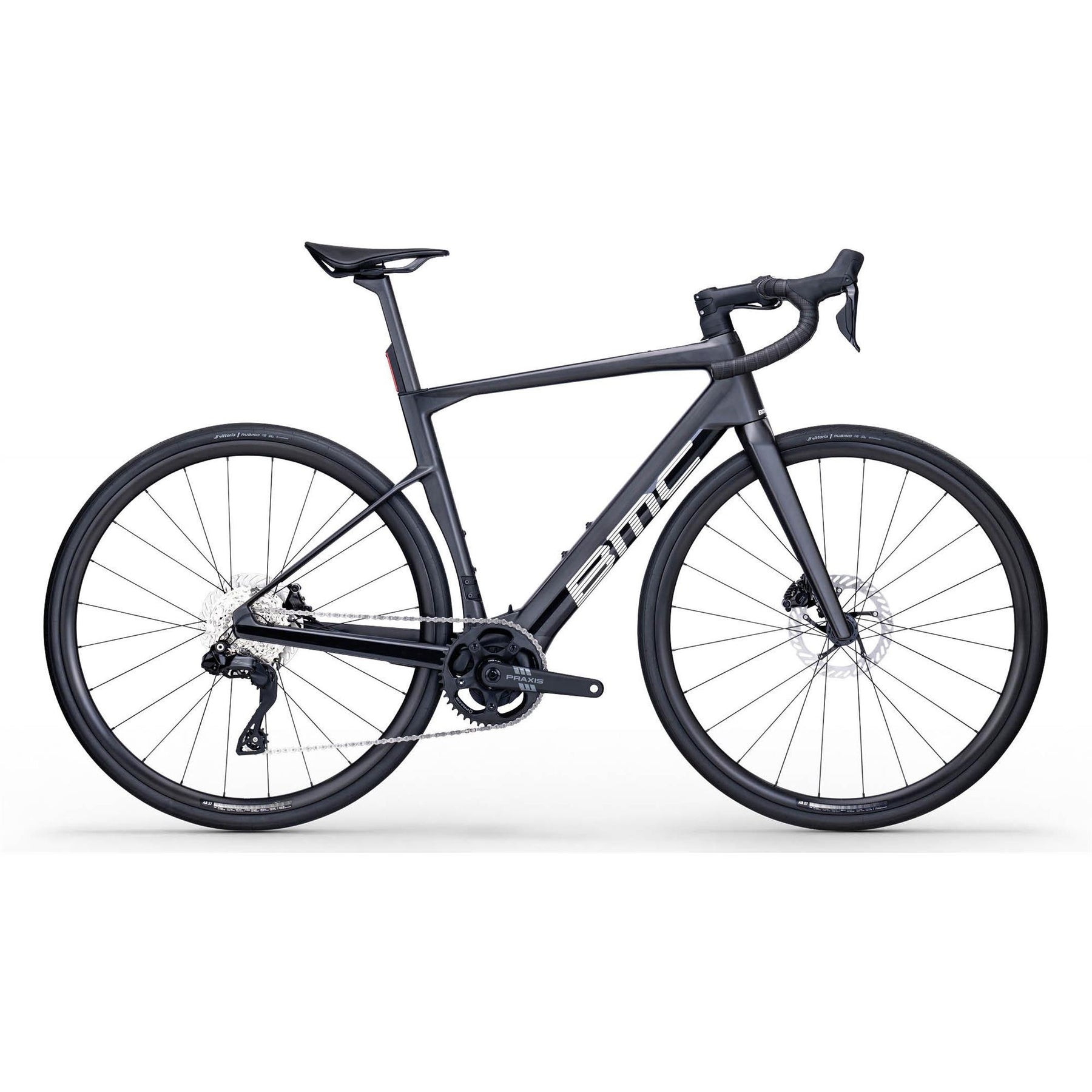

The Roadmachine 01 AMP ONE is an all-road e-bike built on BMC's top-grade 01 Premium Carbon, so it stays light and sharp under power. The seamlessly integrated TQ HPR60 drive unit adds smooth, natural-feeling assistance, so you can ride further and climb more.
Wide tyre clearance and TCC Endurance compliance let you take on broken roads and long days, and a discreet control unit keeps the bars clean. Shimano 105 Di2, the RSM01 integrated stem with HB D4 alloy bars and AR 27 wheels complete the build.
Highlights
- Roadmachine 01 AMP frame and fork in 01 Premium Carbon
- TQ HPR60 drive unit with 360Wh integrated battery
- Shimano 105 Di2 1x12 with 44T chainring and 11-36T cassette
- BMC RSM01 integrated stem with alloy handlebar
- AR 27 wheels with Vittoria Rubino V 34mm tyres
- Clearance for 38mm tyres, plus mudguard mounts and an integrated rear light
Sizes and fit
Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.
Colours
Black Carbon.
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
Frameset
- Frame: Roadmachine 01 AMP, 01 Premium Carbon with Tuned Compliance Concept Endurance, Integrated Battery, ICS Technology Stealth Cable Routing, Fender Mounts, Flat Mount Disc, 12 x 142mm Thru-Axle
- Fork: Roadmachine 01 AMP, 01 Premium Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Flat Mount Disc, 12 x 100mm Thru-Axle
E-bike system
- Drive unit: TQ HPR60
- Battery: TQ Battery, 360Wh, certified by UL LLC
- Display: TQ colour display, 2in O-LED, Bluetooth / ANT+
- Control: TQ Remote
- Charger: TQ 4A Charger
Cockpit
- Stem: BMC RSM01, Integrated Cockpit System Technology
- Handlebar: BMC HB D4 03, Alloy 6061, Endurance Geometry, 125mm drop, 70mm reach, 12° flare
- Bar tape: BMC Tacky 3mm
Seat
- Seatpost: Roadmachine 01 Premium Carbon D-Shaped Seatpost, 15mm Offset, D-Fender Compatible
- Saddle: Selle Italia Model X Greentech, FeC Alloy Rail, 145mm
Drivetrain
- Crankset: Praxis Type-4 Alloy Road eCrank, 49mm chainline
- Chainring: Praxis 44T, 110BCD
- Power meter: TQ drive unit power meter
- Cassette: Shimano (CS-HG710)
- Cassette range: 11-36T
- Chain: Shimano CN-M6100
- Rear derailleur: Shimano 105 Di2 (RD-R7150)
- Shifters: Shimano 105 Di2 (ST-R7170)
- Gearing: 1 x 12
Brakes
- Brakes: Shimano 105 (BR-R7170)
- Rotors: Shimano 105 (RT-CL700)
- Rotor size: 180 / 180mm
Wheels and tyres
- Rims: AR 27, Tubeless Ready, 27mm
- Hubs: CL-712 & RXC-142S Center Lock
- Tyres: Vittoria Rubino V, Tube type, 34mm
Accessories
- In the box: Integrated Rear Light 20 StVZO
Additional information
- Tyre clearance: 38mm measured tyre
- System weight limit: 120kg
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Seat tube length (mm) | 420 | 460 | 500 | 525 | 545 | 575 |
| Top tube (effective) (mm) | 519 | 535 | 544 | 556 | 568 | 581 |
| Head tube length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head tube angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Seat tube angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Chainstay length (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Wheelbase (mm) | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
| Front centre (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Fork length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Standover (mm) | 728 | 755 | 786 | 810 | 829 | 850 |
