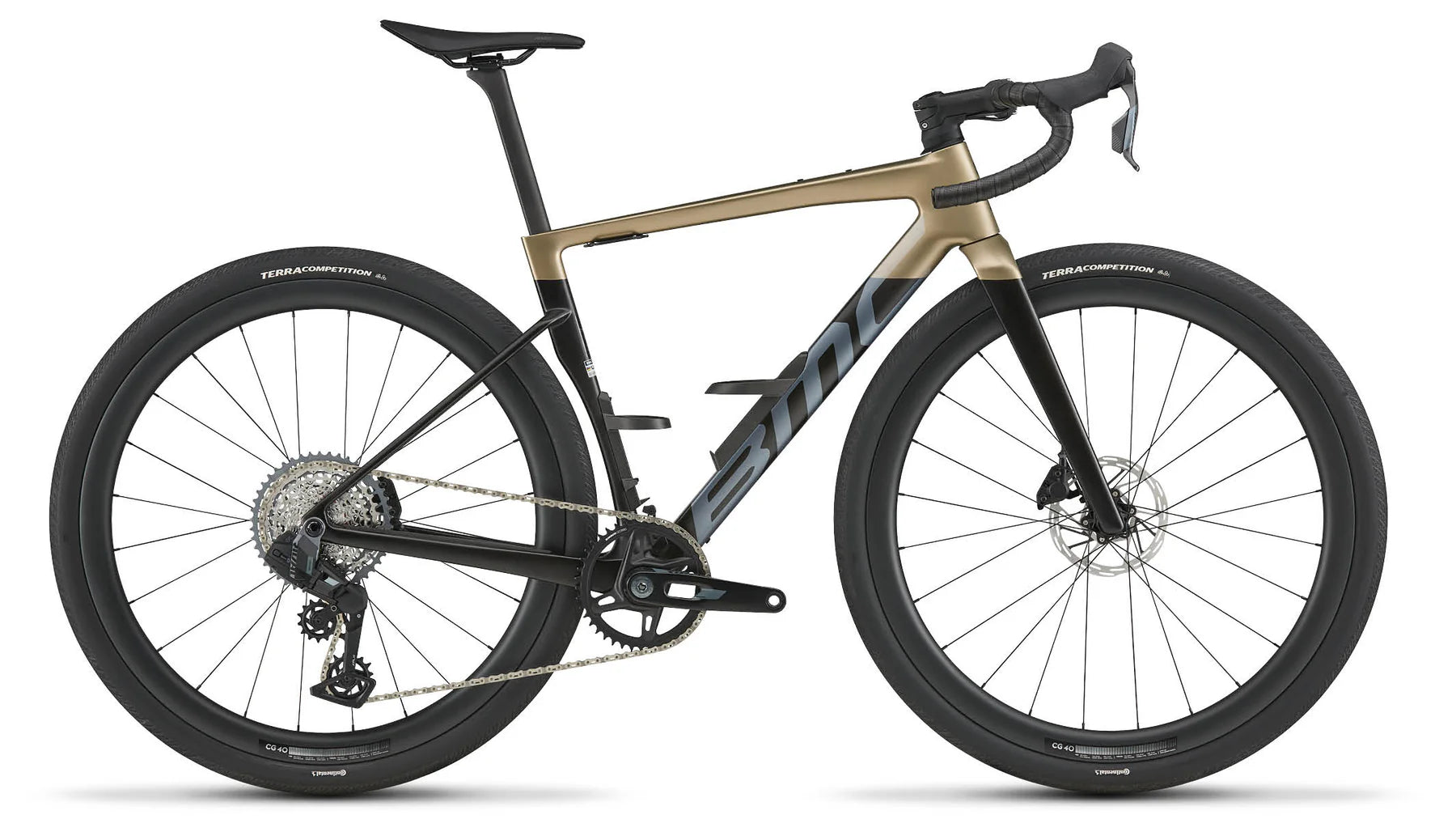

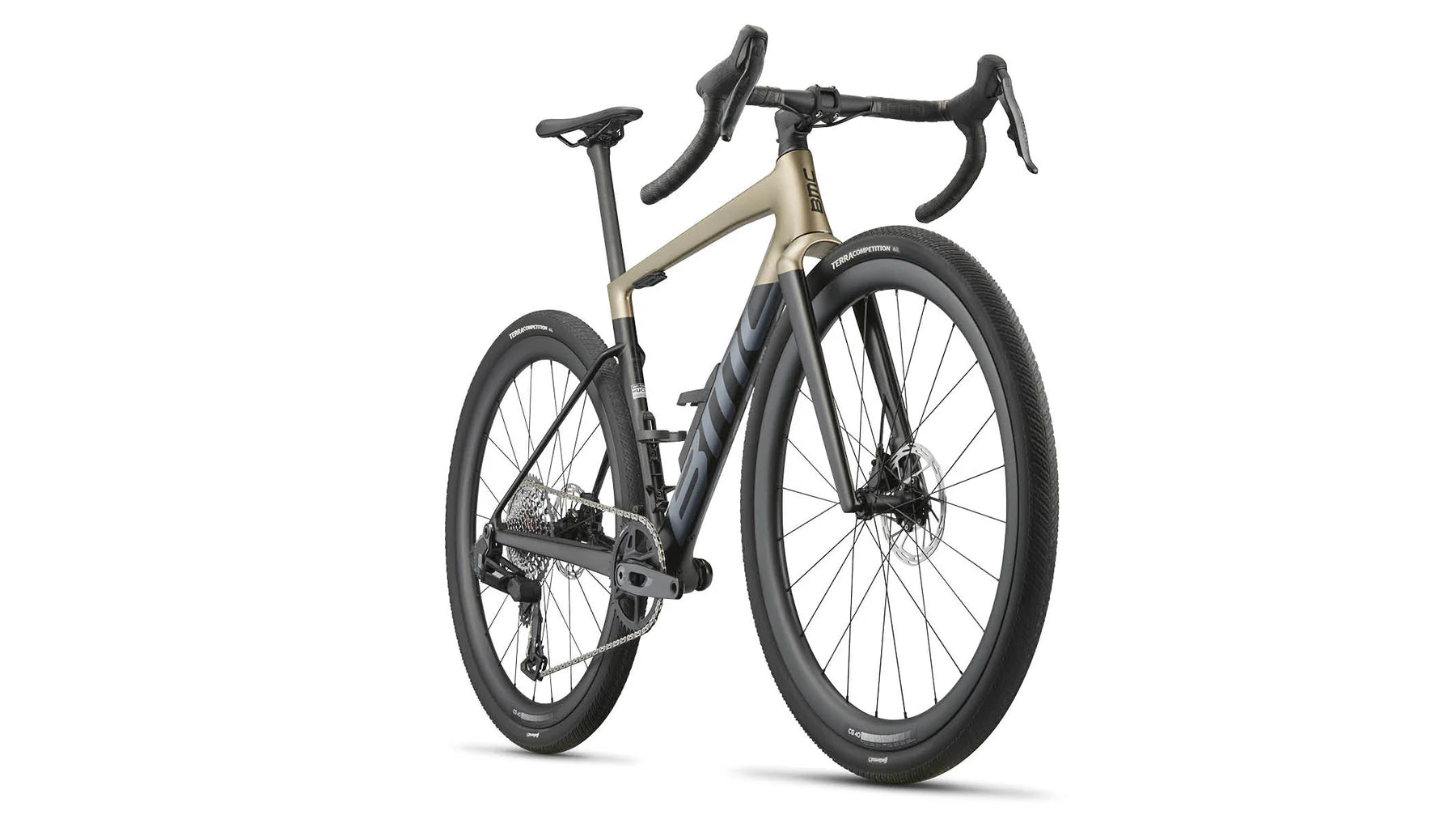

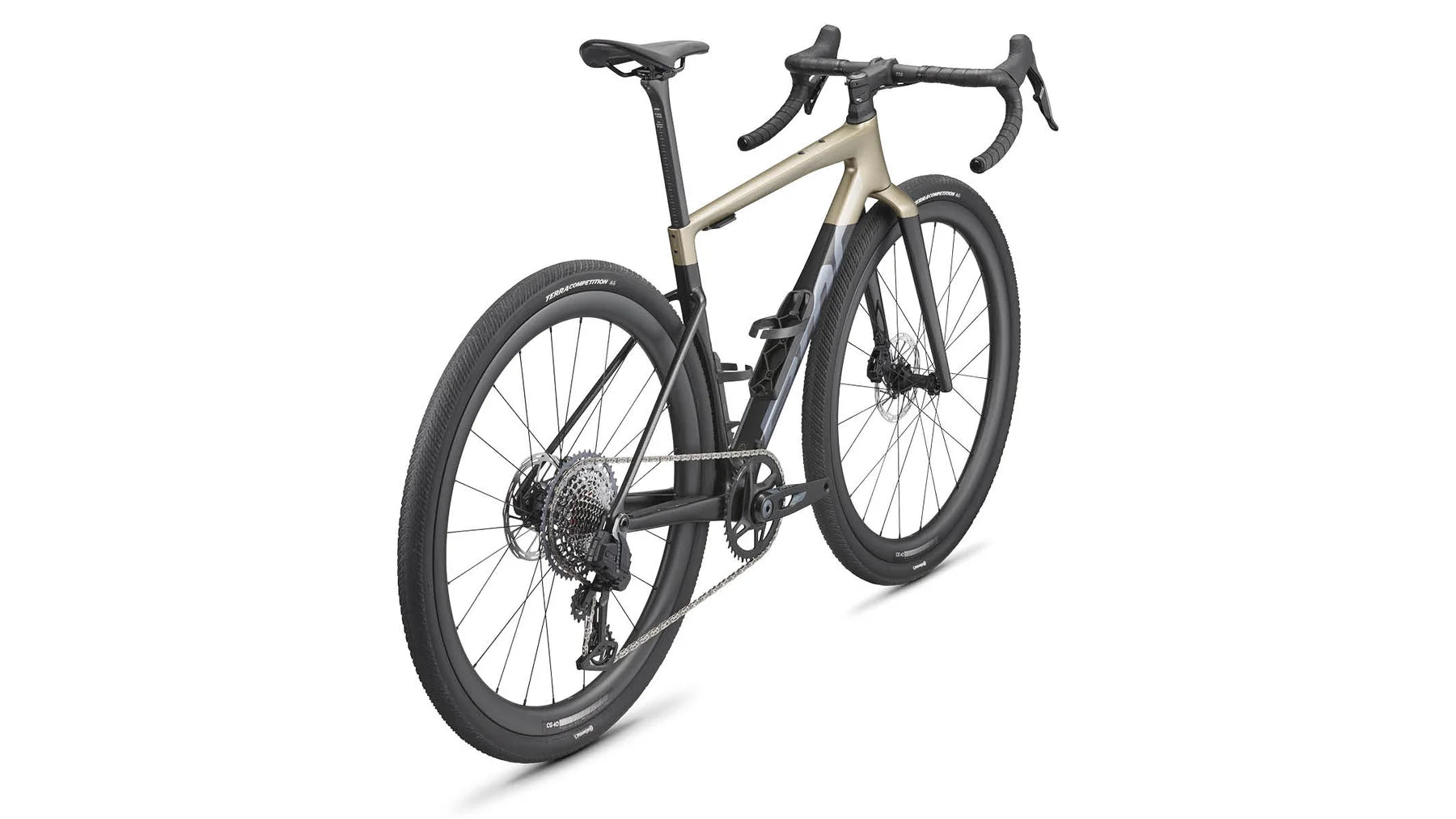

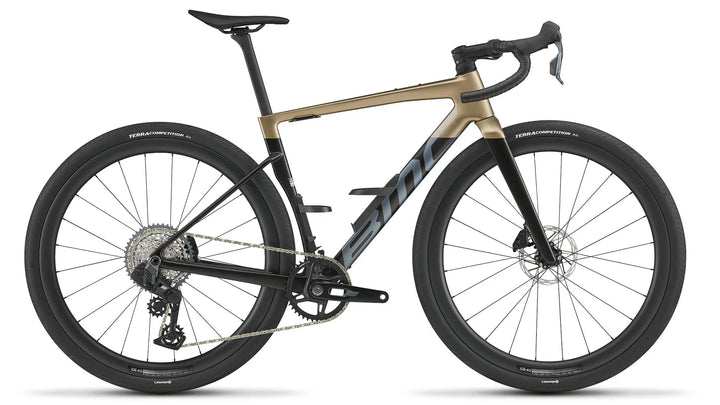

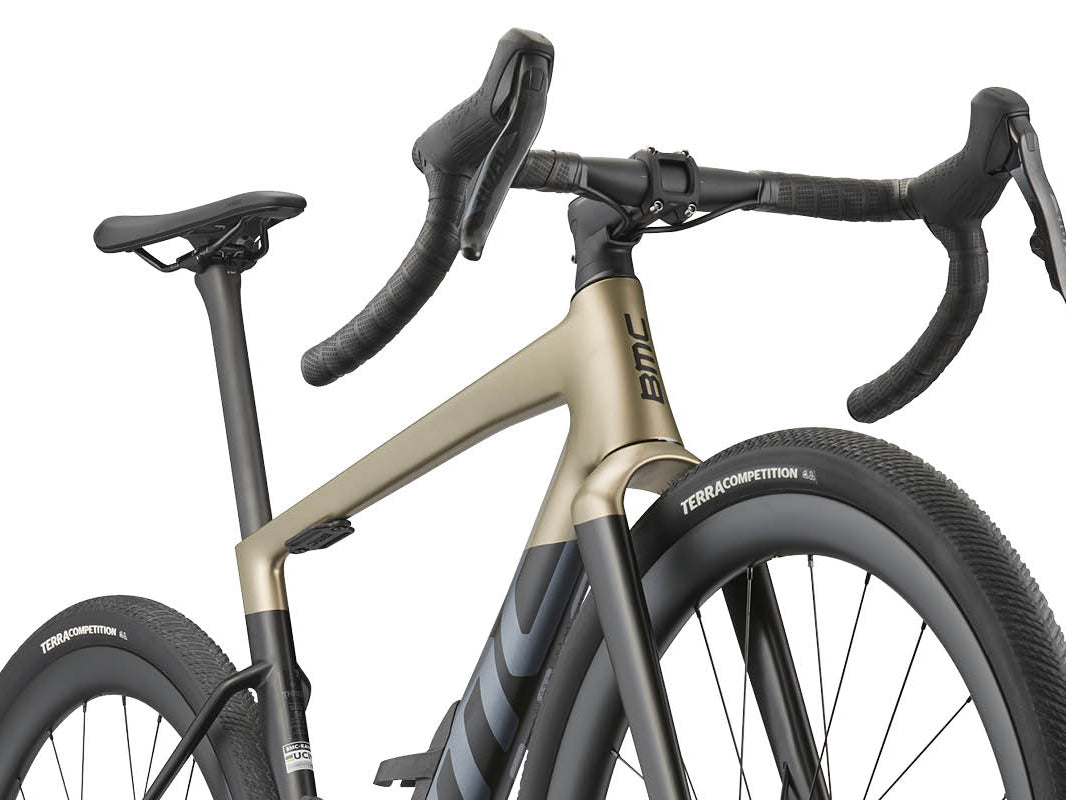

Name: BMC Kaius 01 THREE Gravel Build
Brand: Velo Edge
Price: 4999.0 GBP
Availability: InStock

£4,999.00

In stock, ready to ship
Backordered, shipping soon

Free UK shipping available on all apparel and components

A serious gravel race bike made to handle rising speeds and relentless courses.

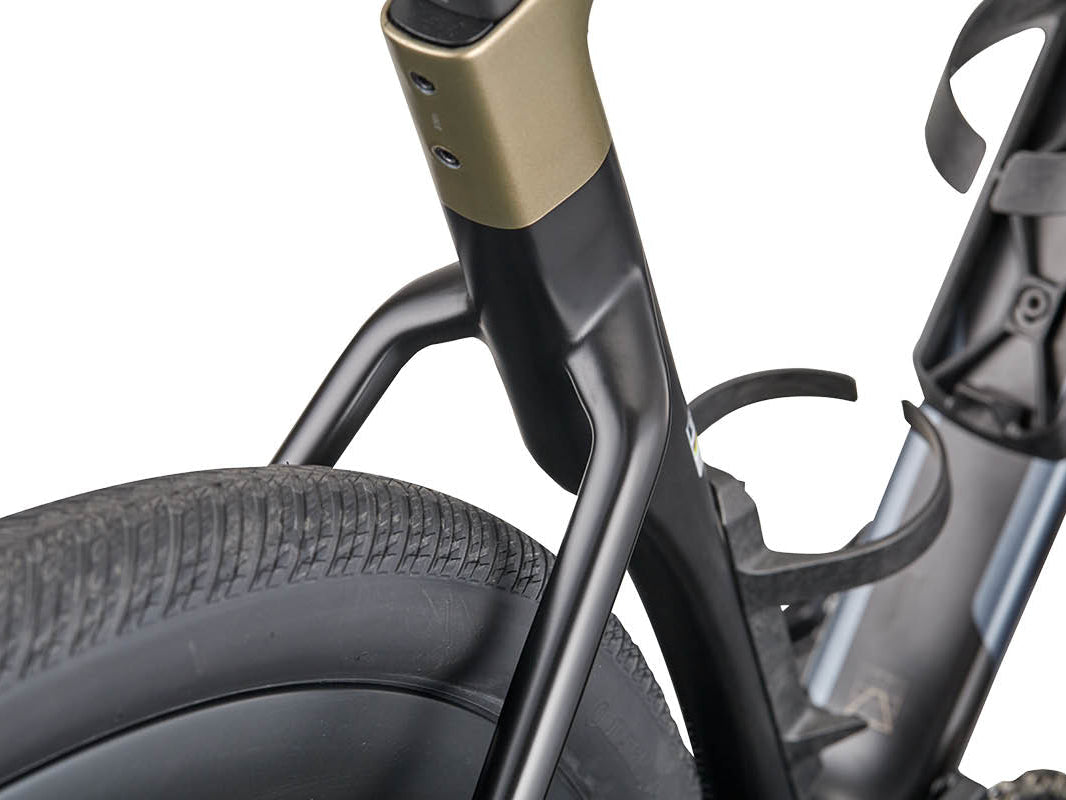

Designed from day one for racing, the Kaius 01 THREE is faster, more aero and more responsive than the competition. With a 7% aerodynamic gain at 40 km/h, this gravel race bike cuts through long headwinds and fast race sections with less effort. The 01 Premium Carbon frame provides serious power transfer while improved compliance, 52mm tire clearance and stability allow you to stay committed when the race heats up. This build pairs our fastest gravel platform with a SRAM Rival XPLR AXS groupset with direct mount rear derailleur for race-ready shifting and braking. Up front, our RSM01 integrated stem and HB D4 alloy bars create a dependable, clean cockpit. CG40 carbon wheels keep your Kaius fast and in control.

Frameset

Cockpit

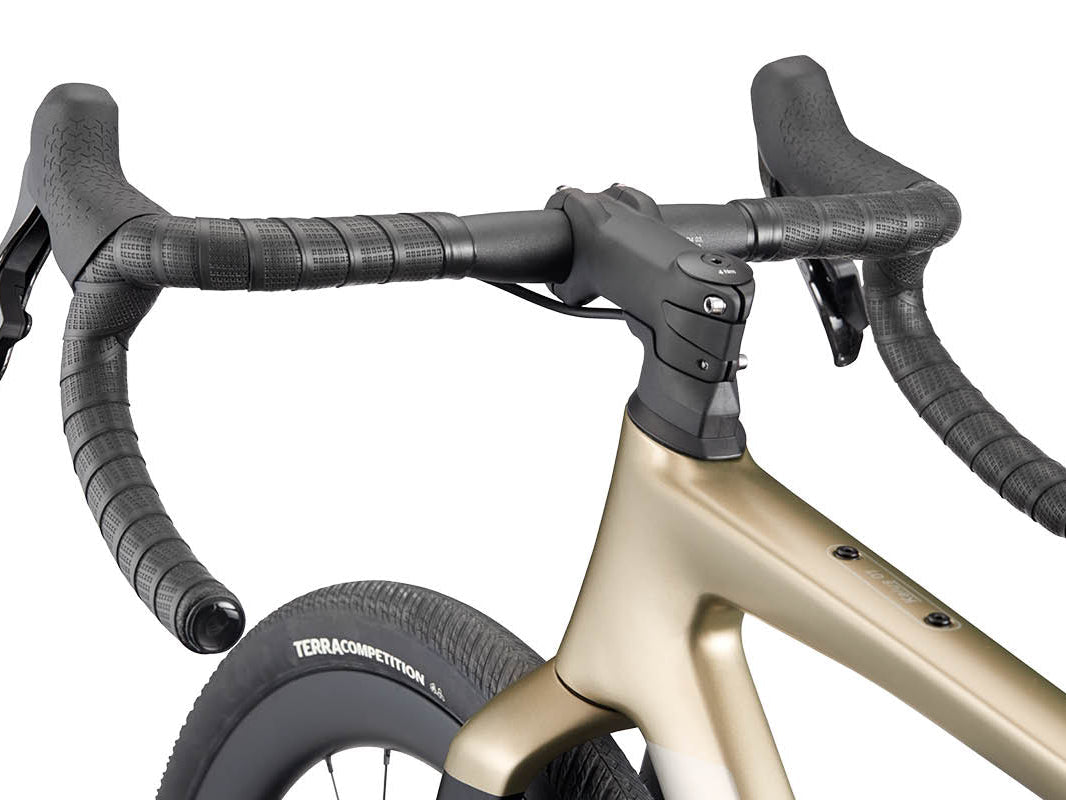

Stem:
BMC RSM 01 | Integrated Cockpit System Technology

Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare

Grips:
BMC Tacky 3mm

Seat

Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Saddle:
Fizik Vento Argo X5 | 140mm

Drivetrain

Crankset:
SRAM Rival XPLR AXS Wide (FC-RIV-1W-E1)

Chainrings:
42T

Cassette:
SRAM Rival XPLR (CS-XG-1351-E1)

Cassette Size:
10-46T

Chain:
SRAM Rival (CN-RIV-E1)

Rear Derailleur:
SRAM Rival XPLR AXS (RD-RIV-1E-E1)

Shifters:
SRAM Rival AXS (ED-RIV-E1)

Gears:
1 x 13

Bottom Bracket:
SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1)

Brakes

Brake Levers / Calipers:
SRAM Rival AXS (ED-RIV-E1)

Rotors:
SRAM Paceline Rotor (RT-PLN-A2)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CG 40 Carbon | Tubeless Ready | 40mm

Hubs (F/R):
TXC-812 & TXC-2406 Center Lock

Tires:
Continental Terra Competition Race Rapid | Tubeless | 45mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories

In the Box:
Aerocore Bottle Cages

Additional Information

Tire Clearance:
52mm measured tire

Weight without Pedals:
8.3kg | Size 54 as pictured with all accessories

System Weight Limit:
120kg
