BMC Kaius 01 ONE SRAM Red XPLR AXS

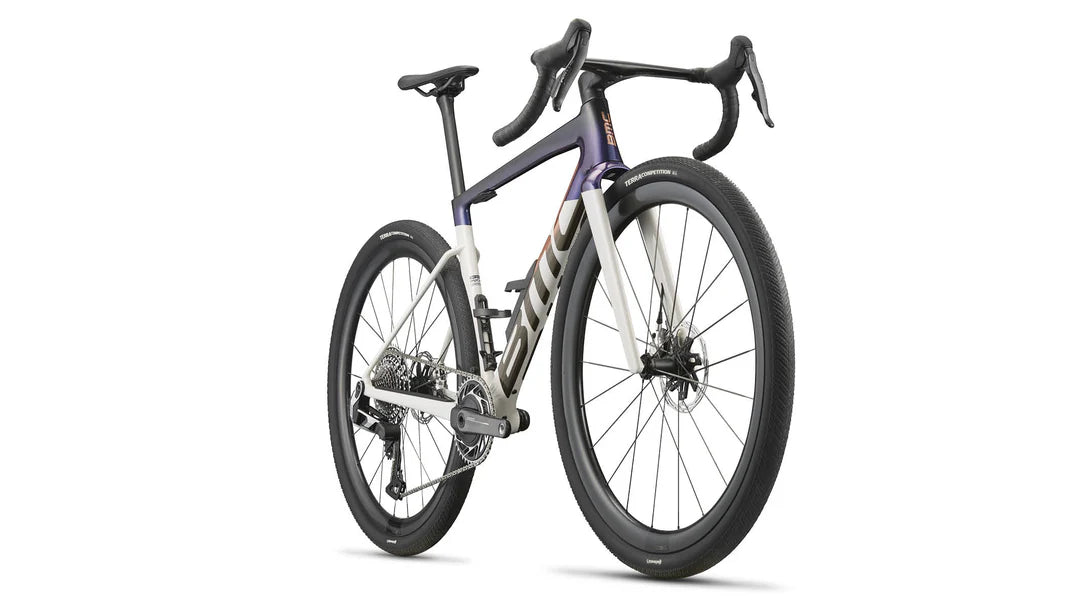

BMC Kaius 01 ONE gravel bike in Copper White / Thunder Blue, view 1 of 5

BMC Kaius 01 ONE gravel bike in Copper White / Thunder Blue, view 2 of 5

BMC Kaius 01 ONE gravel bike in Copper White / Thunder Blue, view 3 of 5

BMC Kaius 01 ONE gravel bike in Copper White / Thunder Blue, view 4 of 5

BMC Kaius 01 ONE gravel bike in Copper White / Thunder Blue, view 5 of 5

£9,999.00

Tax included.

This bike is available through the Cycle to Work Scheme

Unsure of your size?

Book a sizing appointment in our bike fit studio and get the right fit.

The Kaius 01 ONE is the flagship of BMC's second-generation gravel race bike, proof that a gravel bike can be aero, responsive and brutally fast on dirt. It's 7% more aerodynamic at 40km/h, the 01 Premium Carbon layup makes it more direct under power, and compliance, stability and clearance for 52mm tyres have all been refined.

The build matches the brief: full SRAM Red XPLR AXS with a power meter, the next-generation ICS Carbon Aero cockpit for a low, clean front end, and CG 39 SL carbon wheels with carbon spokes for a ride that's compliant yet super responsive.

Highlights

Kaius 01 Gen 2 frame and fork in 01 Premium Carbon
SRAM Red XPLR AXS 1x13 with integrated power meter
ICS Carbon Aero Gen 2 one-piece carbon cockpit
CG 39 SL Carbon wheels with Continental Terra Competition Race Rapid 45mm tubeless tyres
Clearance for 52mm tyres
7.6kg without pedals (size 54)

Sizes and fit

Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.

Colours

Copper White / Thunder Blue.

Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
Sized properly: book a bike fit in our Alderley Edge studio
Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
30-day returns (custom builds excluded)
★★★★★ 150+ five-star Google reviews

Frameset

Frame: Kaius 01 Gen 2, 01 Premium Carbon with Aerocore Design, ICS Technology Stealth Cable Routing, Full Mount - UDH, TCC Race Compliance Level, Flat Mount Disc, 12 x 142mm Thru-Axle
Fork: Kaius 01 Gen 2, 01 Premium Carbon, ICS Technology Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12 x 100mm Thru-Axle

Cockpit

Handlebar: ICS Carbon Aero Gen 2, One-Piece Full Carbon Cockpit, 135mm drop, 81mm reach, 12° flare
Bar tape: BMC Tacky 3mm

Seat

Seatpost: Teammachine SLR 01 Gen 5, 01 Premium Carbon Aero Shaped Seatpost, 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle: Fizik Vento Argo X1 Carbon, 140mm

Drivetrain

Crankset: SRAM Red XPLR AXS Wide (FC-RED-1WP-E1)
Chainring: 42T
Power meter: SRAM Red XPLR AXS Power Meter (FC-RED-1WP-E1)
Cassette: SRAM Red XPLR (CS-XG-1391-E1)
Cassette range: 10-46T
Chain: SRAM Red (CN-RED-E1)
Rear derailleur: SRAM Red XPLR AXS (RD-RED-1E-E1)
Shifters: SRAM Red AXS (ED-RED-E1)
Gearing: 1 x 13
Bottom bracket: SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1)

Brakes

Brakes: SRAM Red AXS (ED-RED-E1)
Rotors: SRAM Paceline X Rotor (RT-PLN-X-A1)
Rotor size: 160 / 160mm

Wheels and tyres

Rims: CG 39 SL Carbon, Tubeless Ready, 39mm
Hubs: CG 39 SL for Carbon Spokes, Star Ratchet Freehub, Center Lock
Tyres: Continental Terra Competition Race Rapid, Tubeless, 45mm

Accessories

In the box: Aerocore Bottle Cages, Computer mount for Garmin, Wahoo and GoPro mount

Additional information

Tyre clearance: 52mm measured tyre
Weight: 7.6kg, Size 54 as pictured with all accessories
System weight limit: 120kg

Size	47cm	51cm	54cm	56cm	58cm	61cm
Stack (mm)	521	541	561	581	606	631
Reach (mm)	385	392	396	400	405	409
Seat tube length (mm)	429	449	471	485	509	533
Top tube (effective) (mm)	531	544	559	569	587	598
Head tube length (mm)	88	109	126	147	173	199
Head tube angle (°)	70.8	70.8	70.8	71.6	71.6	71.6
Seat tube angle (°)	74.3	74.3	73.8	73.8	73.8	73.8
Chainstay length (mm)	425	425	425	425	425	425
BB drop (mm)	79	79	79	79	79	79
Wheelbase (mm)	1010	1024	1027	1032	1045	1058
Front centre (mm)	597	611	614	619	633	645
Fork length (mm)	397	397	397	397	397	397
Fork offset (mm)	50	50	50	45	45	45
Trail (mm)	72	72	72	72	72	72
Standover (mm)	739	758	779	795	815	838

Free UK shipping available on all orders, excluding bikes, wheelsets and packages over 10kg in weight e.g. turbo trainers.

Race-ready Geometry

Race day doesn't care what the surface is doing, so the geometry is designed to keep you fast across all of it.

It's sharper up front, calmer at speed and built around the wider tyres that make modern gravel racing what it is: chaotic, but fast.

Faster with More Control

As gravel racing progresses, so does tyre clearance. The Kaius 01 now takes tyres up to 52mm.

Bigger tyres mean more speed and more traction, giving you the confidence to hit corners and rough terrain flat out.

ICS Carbon Aero Cockpit

Developed with the Tudor Pro Cycling Team, the second-generation ICS Carbon Aero cockpit is built by racers, for racers.

It's stiffer, more aero and more comfortable than before, with more room to tune your position and a simpler build, and it looks every bit as fast as it is.

Tuned Compliance

Wider tyres, a slacker head angle and an optimised carbon layup all work together.

Whatever the terrain, you get just the right balance of stiffness and compliance to stay fast and in control from start to finish.
