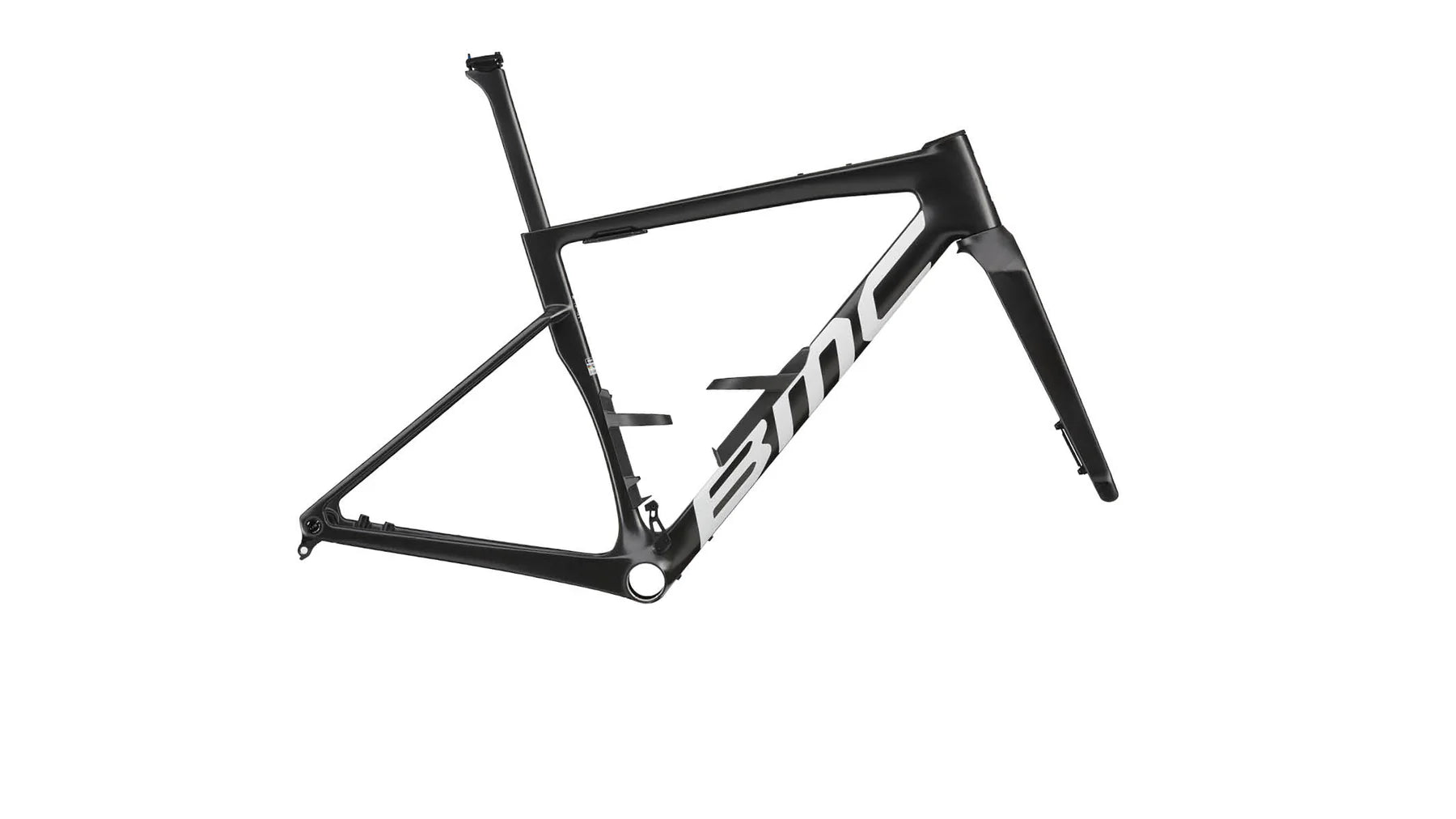

BMC Kaius 01 Gravel Frameset
BM30008128
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
Buying from outside the UK? We deliver bikes worldwide, fully boxed and insured. Prices are shown in your currency without UK VAT. See delivery rates
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
The ultimate blank canvas for building your fastest gravel race bike.
When generation 1 of Kaius launched, the gravel world stood up and took notice. Made with racing as its sole purpose, it defined what gravel speed looked like. Gen 2 raises the bar again. With a 7% aerodynamic gain at 40 km/h, improved stability at speed, and the unmistakable ride feel of our 01 Premium Carbon, the Kaius 01 frameset is engineered for riders who want to build without compromise. 51mm tire clearance, refined compliance, and race-ready geometry give you a platform that stays fast when the course turns rough and the pace stays high. Supplied with frame, fork, and seatpost, the VAR0 frameset features a future-proof Full Mount / UDH interface, giving you total freedom when it comes to drivetrain choice. Finished in raw carbon with a light lacquer and removable decals, it’s ready for custom paint or left as-is for a stripped-back race aesthetic.
Frameset
Frame:
Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Drivetrain
Rear Derailleur:
Full Mount - UDH
Bottom Bracket:
T47 85.5mm Road Wide
Brakes
Rotor Size (F/R):
Rotor compatibility: 160mm front | 160mm rear
Accessories
In the Box:
Aerocore Bottle Cages | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
52mm measured tire
Weight without Pedals:

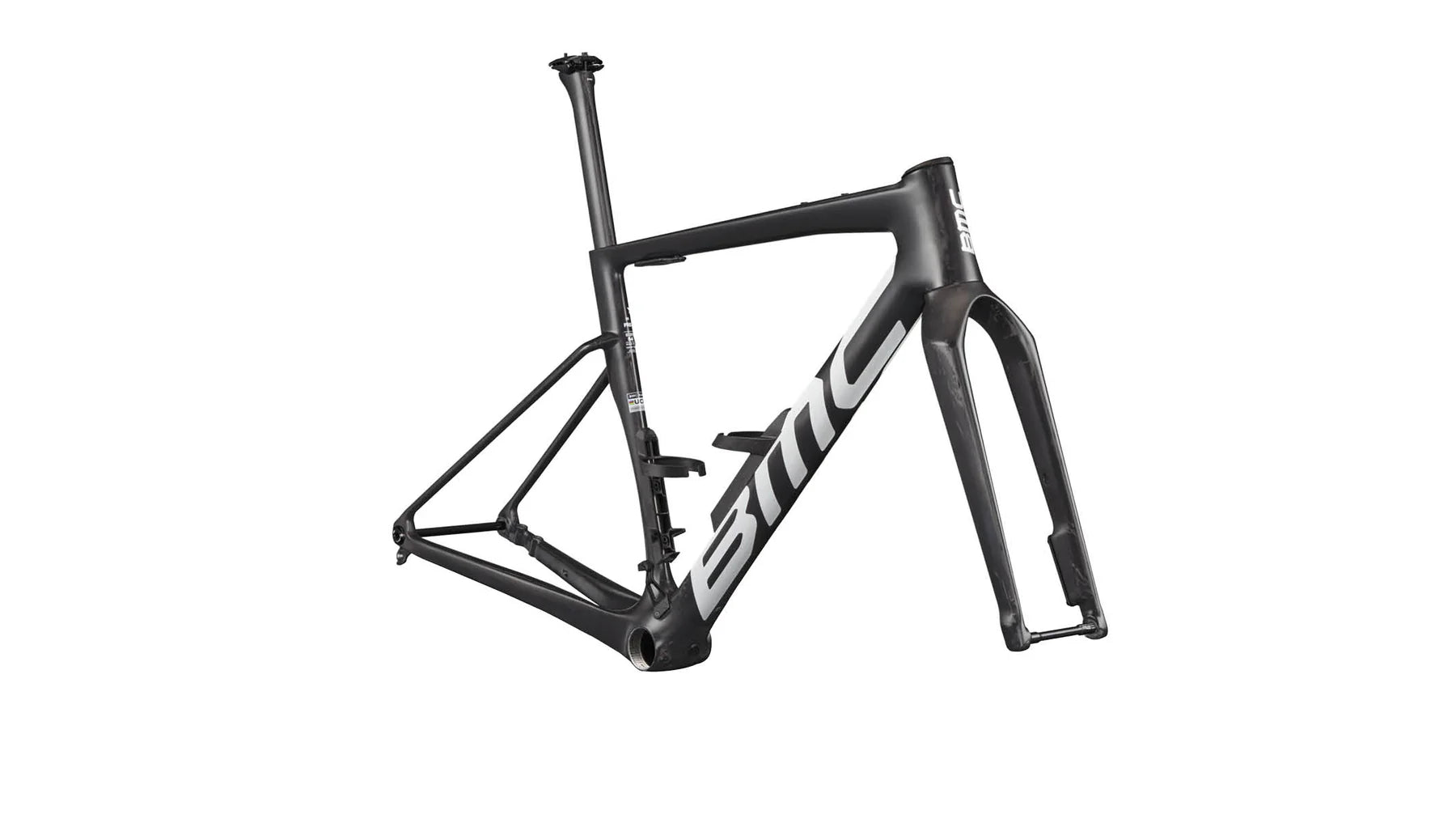

1855g | Size 54 as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
120kg
Color Reference
Color Code:
cbn 000 000
Marketing Color:
Lightweight Carbon VAR0
Paint Direction:
Cromax P2932
HEX Display:
#272626
LAB Color Scan:
15.17, 0.70, 0.35
Sizes and fit
Available in frame sizes 47cm, 51cm, 54cm, 56cm, 58cm and 61cm. The 01 Premium Carbon aero seatpost is supplied with 0mm offset in sizes 47-51 and 10mm offset in sizes 54-61. Tyre clearance is 52mm measured tyre.
Colours
Available in 2027 Lightweight Carbon VAR0 — raw carbon with a light lacquer and removable decals, ready for custom paint or to be left as-is.
Materials and construction
- Frame: Kaius 01 Gen 2, 01 Premium Carbon with Aerocore Design, ICS Technology stealth cable routing, Full Mount - UDH, TCC Race compliance level, flat mount disc, 12 x 142mm thru-axle
- Fork: Kaius 01 Gen 2, 01 Premium Carbon, ICS Technology stealth cable routing, TCC Race compliance level, stealth dropout design, flat mount disc, 12 x 100mm thru-axle
- Seatpost: Teammachine SLR 01 Gen 5, 01 Premium Carbon aero-shaped
- Bottom bracket: T47 85.5mm Road Wide; rotor compatibility 160mm front and 160mm rear
- Supplied with frame, fork and seatpost
- In the box: Aerocore bottle cages, SRAM UDH derailleur hanger, SHIMANO Direct Mount derailleur hanger, high and low ICS top cones, 3x10mm spacers, 2x3mm spacers
- Frameset weight 1855g without pedals (size 54 as pictured with all accessories)
- ASTM classification Level 2; system weight limit 120kg
Frameset
- Frame: Kaius 01 Gen 2, 01 Premium Carbon with Aerocore Design, ICS Technology Stealth Cable Routing, Full Mount - UDH, TCC Race Compliance Level, flat-mount disc, 12x142mm thru-axle
- Fork: Kaius 01 Gen 2, 01 Premium Carbon, ICS Technology Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, flat-mount disc, 12x100mm thru-axle
- Seatpost: Teammachine SLR 01 Gen 5, 01 Premium Carbon aero shaped, 0mm offset (sizes 47-51), 10mm offset (sizes 54-61)
- Bottom bracket: T47 85.5mm Road Wide
- Rotors: 160mm front and rear
- Tyre clearance: 52mm measured tyre
Extras
- Included: Aerocore bottle cages, SRAM UDH derailleur hanger, Shimano Direct Mount derailleur hanger, high and low ICS top cones, 3x10mm and 2x3mm spacers
- ASTM classification: Level 2
- System weight limit: 120kg
Weight
- Frameset weight: 1855g (size 54 with all accessories)
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 521 | 541 | 561 | 581 | 606 | 631 |
| Reach (mm) | 385 | 392 | 396 | 400 | 405 | 409 |
| Seat tube length (mm) | 429 | 449 | 471 | 485 | 509 | 533 |
| Top tube (effective) (mm) | 531 | 544 | 559 | 569 | 587 | 598 |
| Head tube length (mm) | 88 | 109 | 126 | 147 | 173 | 199 |
| Head tube angle (°) | 70.8 | 70.8 | 70.8 | 71.6 | 71.6 | 71.6 |
| Seat tube angle (°) | 74.3 | 74.3 | 73.8 | 73.8 | 73.8 | 73.8 |
| Chainstay length (mm) | 425 | 425 | 425 | 425 | 425 | 425 |
| BB drop (mm) | 79 | 79 | 79 | 79 | 79 | 79 |
| Wheelbase (mm) | 1010 | 1024 | 1027 | 1032 | 1045 | 1058 |
| Front centre (mm) | 597 | 611 | 614 | 619 | 633 | 645 |
| Fork length (mm) | 397 | 397 | 397 | 397 | 397 | 397 |
| Fork offset (mm) | 50 | 50 | 50 | 45 | 45 | 45 |
| Trail (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
| Standover (mm) | 739 | 758 | 779 | 795 | 815 | 838 |
