Argon 18 Krypton Pro Frameset
364A.FS
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
Buying from outside the UK? We deliver bikes worldwide, fully boxed and insured. Prices are shown in your currency without UK VAT. See delivery rates
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews

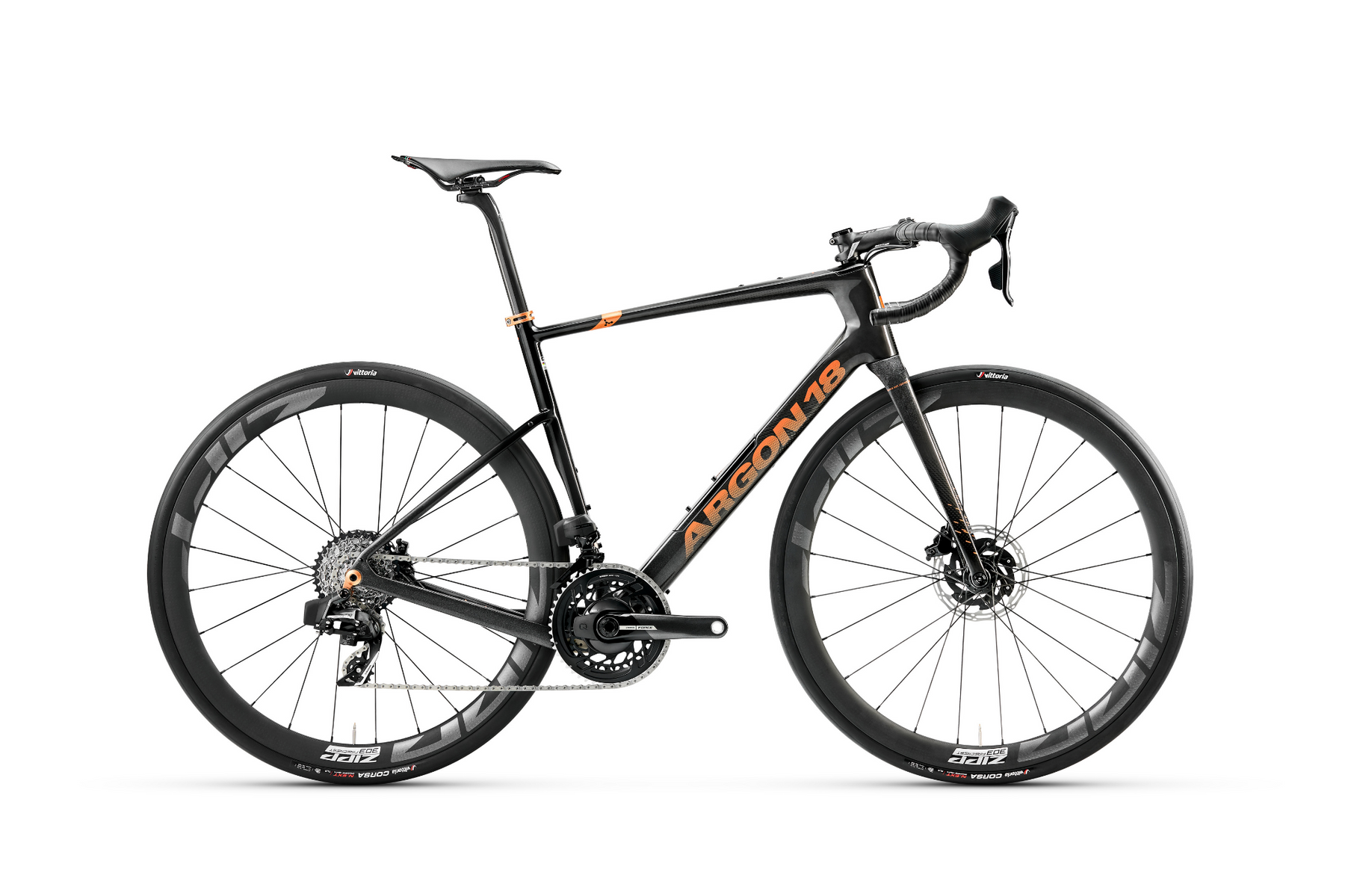

Build it your way. The Krypton Pro frameset is Argon 18's top-tier all-road platform — increased tyre clearance, in-frame storage and shorter chainstays for a more responsive ride.
Key features
- Pro Level Layup carbon
- Storage Optimization System with hidden downtube storage
- Up to 40c tyre clearance
- Shorter chainstays
- T47 bottom bracket

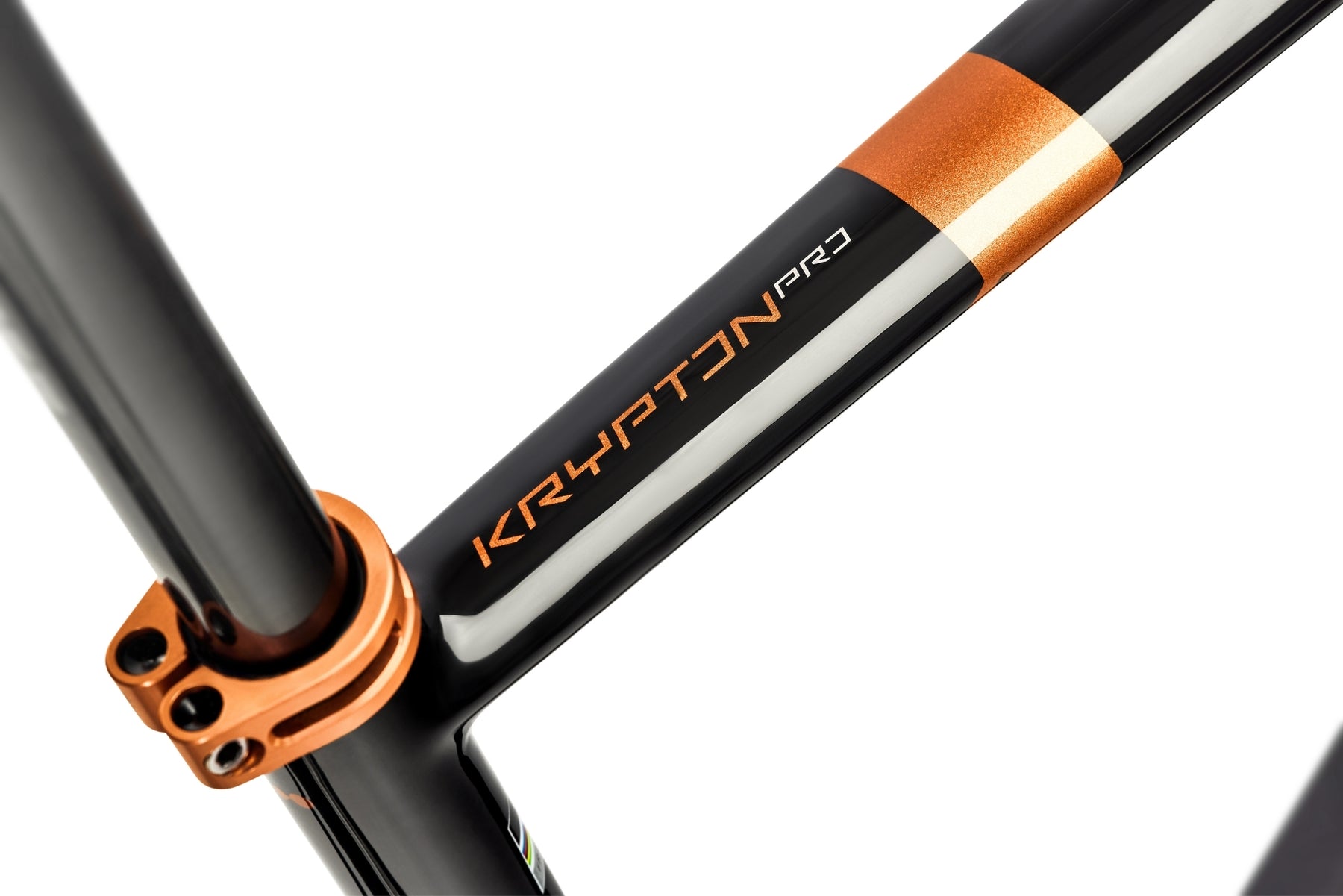

- 27.2 mm carbon seatpost and carbon clamp
- 3D System and Argon Fit System
Frame
| Layup | Pro Level Layup carbon |
|---|---|
| Seatpost | 27.2 mm carbon, carbon clamp |
| Max tyre clearance | Up to 40c |
| Bottom bracket | T47 |
| Geometry | Endurance |
Builds
- Frameset — £2,400
All sizes: XXS (44-46), XS (47-50), S (51-53), M (54-56), L (57-59), XL (60-62).
Frameset contents: Argon 18 do not publish a full frameset inclusions list on their GB site. Please confirm exact package contents with us before ordering.
Sizes and fit
Available in frame sizes XXS (44-46), XS (47-50), S (51-53), M (54-56), L (57-59) and XL (60-62). Each size has its own endurance geometry under the Argon Fit System, with the 3D System for fit adjustment.
Colours
Available in Crystal Black / Copper, Gloss.
Materials and construction
- Frame: Pro Level Layup carbon
- Seatpost: 27.2 mm carbon, with a carbon clamp
- Bottom bracket: T47
- Maximum tyre clearance up to 40c
- Storage Optimization System with hidden downtube storage
- Shorter chainstays
- Endurance geometry, 3D System and Argon Fit System
- Frameset contents: Argon 18 do not publish a full frameset inclusions list, so please confirm the exact package contents with us before ordering
Frameset
- Frame: Krypton Pro, Pro Level Layup carbon, Storage Optimisation System downtube storage
- Fork: Krypton Pro carbon
- Seatpost: 27.2mm carbon, carbon clamp
- Bottom bracket: T47
- Tyre clearance: 40mm
- Fit: 3D System and Argon Fit System
Extras
- Included: Toolkit
| Size | XXS (44-46) | XS (47-50) | S (51-53) | M (54-56) | L (57-59) | XL (60-62) |
|---|---|---|---|---|---|---|
| Stack (mm) | 523 | 543 | 563 | 584 | 605 | 628 |
| Reach (mm) | 357 | 367 | 377 | 386 | 395 | 406 |
| Seat tube length (mm) | 420 | 450 | 485 | 520 | 555 | 590 |
| Top tube (effective) (mm) | 496 | 516 | 537 | 558 | 580 | 604 |
| Head tube length (mm) | 106 | 123 | 142 | 164 | 186 | 208 |
| Head tube angle (°) | 70.6 | 71.5 | 72.3 | 72.3 | 72.3 | 72.8 |
| Seat tube angle (°) | 75.5 | 74.9 | 74.3 | 73.7 | 73.1 | 72.5 |
| Chainstay length (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| BB drop (mm) | 80 | 80 | 78 | 78 | 78 | 78 |
| Wheelbase (mm) | 975 | 984 | 989 | 1005 | 1020 | 1033 |
| Standover (mm) | 675 | 704 | 738 | 770 | 801 | 832 |
| Head tube length (25mm 3D spacer) (mm) | 131 | 148 | 167 | 189 | 211 | 233 |
| Stack (25mm 3D spacer) (mm) | 547 | 567 | 587 | 608 | 629 | 652 |
| Reach (25mm 3D spacer) (mm) | 349 | 359 | 370 | 379 | 388 | 398 |
Measurements from Argon 18's published geometry, converted from cm to mm. Stack, reach and head tube are shown with no 3D headset spacer; the extra rows show the taller 3D spacer options.
