Argon 18 E119 Frameset
368A.FS
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.

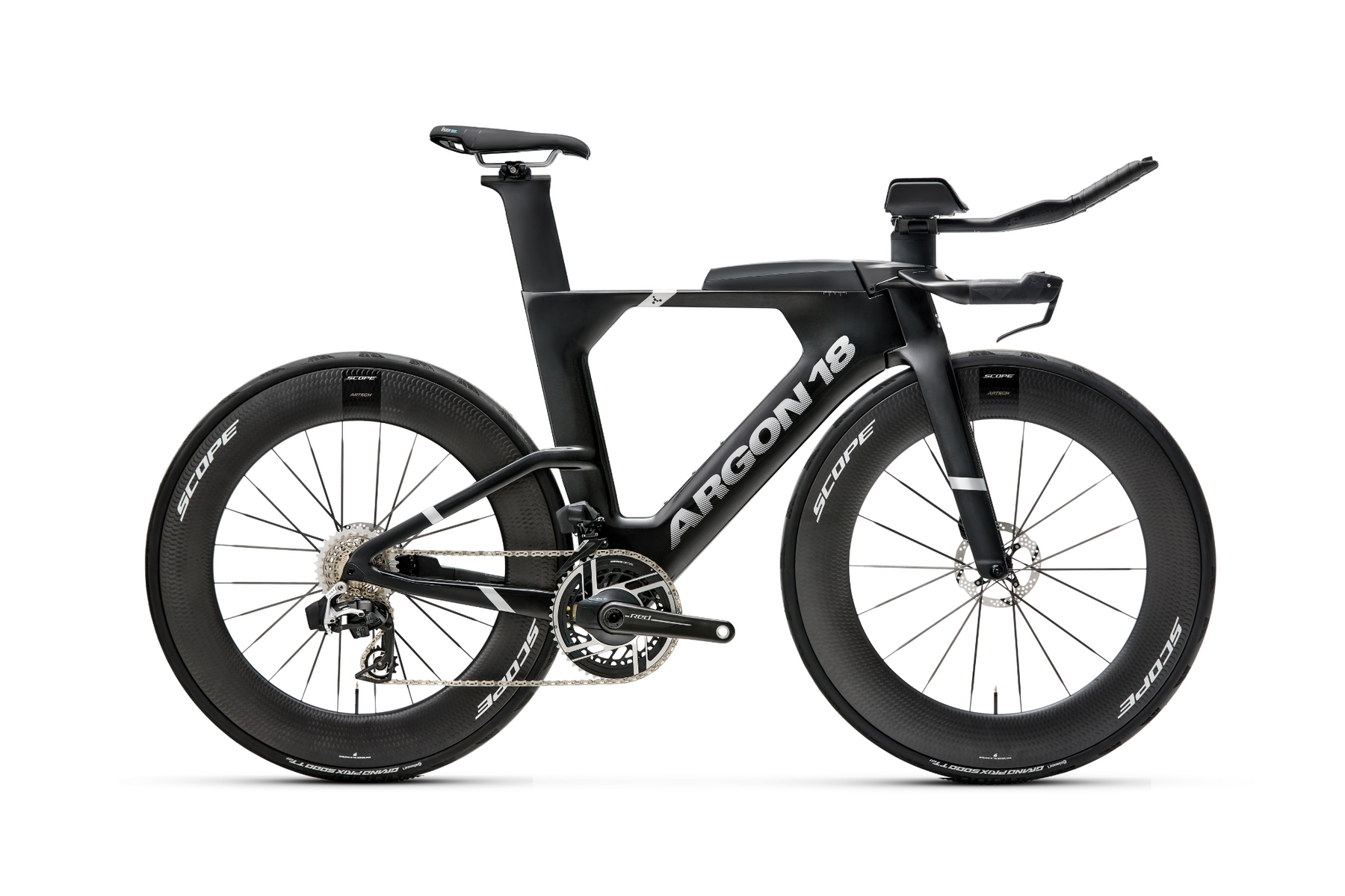

Every second, every watt, every advantage. The E-119 Tri+ Disc frameset is Argon 18's fastest triathlon platform, with their most advanced engineering and full integration for race-day performance — including an industry-first integration of the brake calipers into the frame.
Key features
- Industry-first frame-integrated brake calipers
- Fully redesigned integrated cockpit
- Aero-optimised tube shapes
- Deep integrated bento box for nutrition

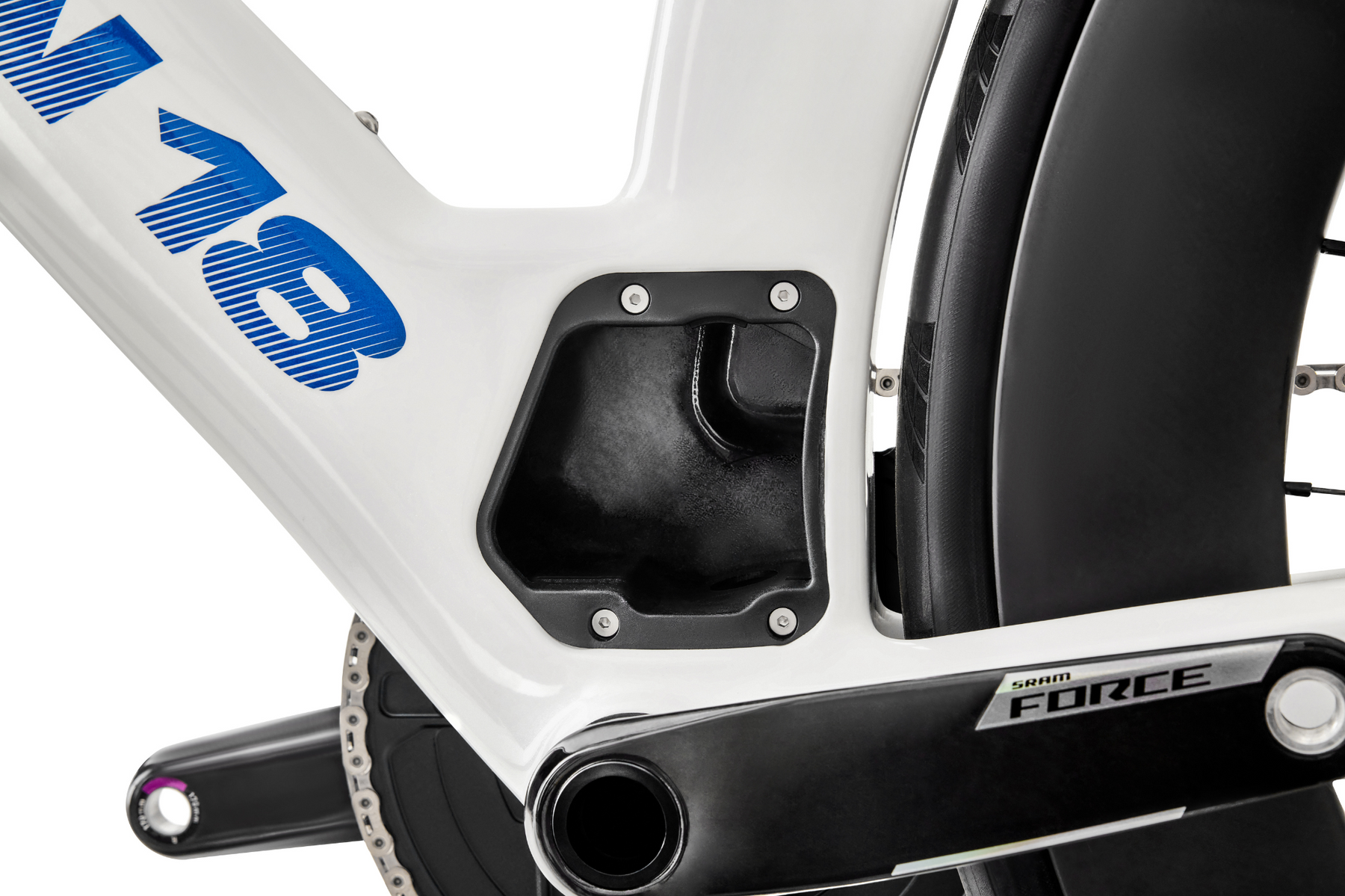

- Integrated toolkit hidden in the bottom bracket
- Up to a claimed 10W advantage over the previous-generation E-119
- Argon Oneness System for precise positioning and travel-friendly assembly
- Argon Fit System — size-specific tri/TT geometry
Frame
| Layup | Pro Level Layup carbon |
|---|---|
| Brakes | Argon 18 Integrated Brake System |
| Cockpit | Argon 18 Integrated Cockpit |
| Storage | Bento box and in-BB toolkit |
| Geometry | Triathlon / TT, Argon Fit System |
Builds
- Frameset — £6,000
All sizes: XXS (44-46), XS (47-50), S (51-53), M (54-56), L (57-59), XL (60-62).
Frameset contents: Argon 18 do not publish a full frameset inclusions list on their GB site. Please confirm exact package contents with us before ordering.
Sizes and fit
Available in frame sizes XXS (44-46), XS (47-50), S (51-53), M (54-56), L (57-59) and XL (60-62). Each size has its own triathlon/TT geometry under the Argon Fit System.
Colours
Available in Constellation Black and Titanium White / Purple Shift.
Materials and construction
- Frame: Pro Level Layup carbon
- Brakes: Argon 18 Integrated Brake System, with the calipers integrated into the frame
- Cockpit: Argon 18 Integrated Cockpit, fully redesigned
- Aero-optimised tube shapes, for up to a claimed 10W advantage over the previous-generation E-119
- Storage: deep integrated bento box plus a toolkit hidden in the bottom bracket
- Argon Oneness System for precise positioning and travel-friendly assembly
- Frameset contents: Argon 18 do not publish a full frameset inclusions list, so please confirm the exact package contents with us before ordering
Frameset
- Frame: E-119 Tri+ Disc, Pro Level Layup carbon, aero-optimised tube shapes
- Fork: E-119 Tri+ Disc specific
- Headset: E-119T+ Disc
- Brakes: Argon 18 Integrated Brake System, frame-integrated calipers
- Bottom bracket: BB86
Cockpit and contact points
- Cockpit: Argon 18 integrated cockpit
Extras
- Included: Integrated bento box, toolkit stored in the bottom bracket
- Fit: Argon Oneness System and Argon Fit System
| Size | XS (47-50) | S (51-53) | M (54-56) | L (57-59) | XL (60-62) |
|---|---|---|---|---|---|
| Seat tube length (mm) | 455 | 502 | 517 | 542 | 573 |
| Top tube (effective) (mm) | 491 | 505 | 518 | 533 | 549 |
| Head tube length (mm) | 60 | 70 | 86 | 113 | 144 |
| Head tube angle (°) | 72 | 72 | 72 | 72 | 72 |
| Seat tube angle (°) | 78 | 78 | 78 | 78 | 78 |
| Chainstay length (mm) | 413 | 413 | 413 | 413 | 413 |
| BB drop (mm) | 73 | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 974 | 988 | 1003 | 1021 | 1041 |
| Standover (mm) | 726 | 765 | 780 | 805 | 832 |
| Armpad stack (mm) | 573–663 | 583–673 | 598–688 | 623–713 | 653–743 |
| Armpad reach (mm) | 414–501 | 424–511 | 434–521 | 444–531 | 454–541 |
Measurements from Argon 18's published geometry, converted from cm to mm. Head tube is the minimum. Armpad stack and reach show the adjustment range.
