BMC Roadmachine TWO Road Build
BM30008041
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.

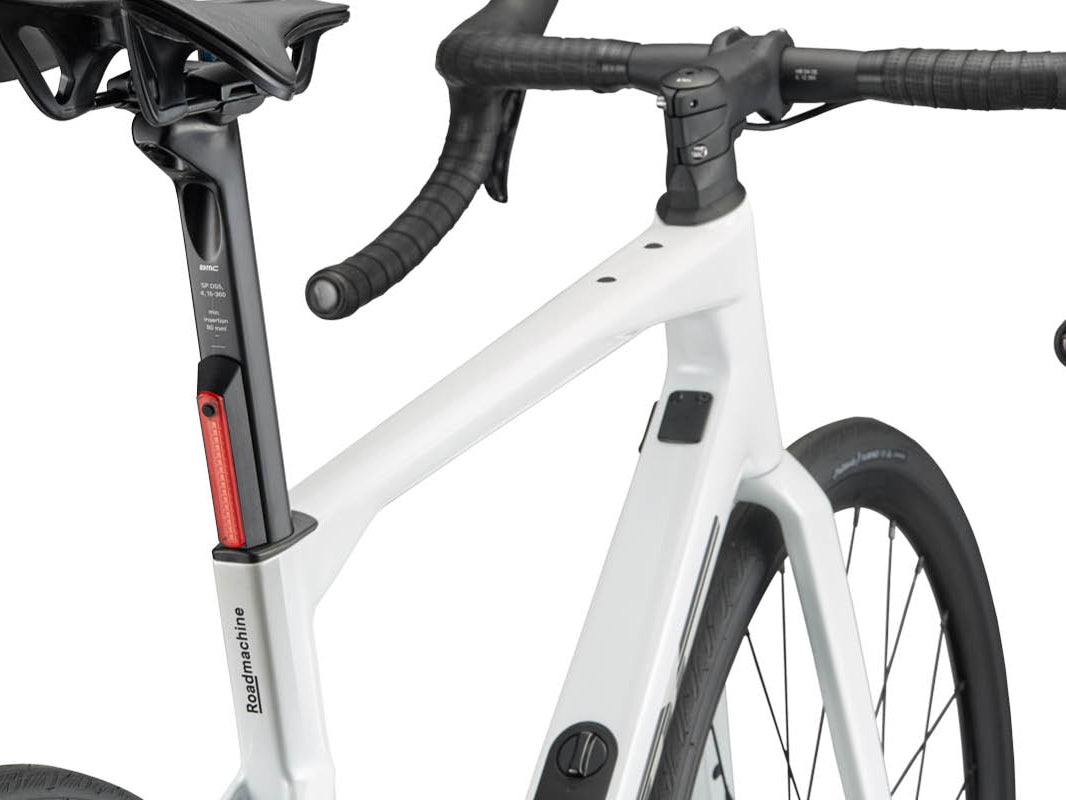

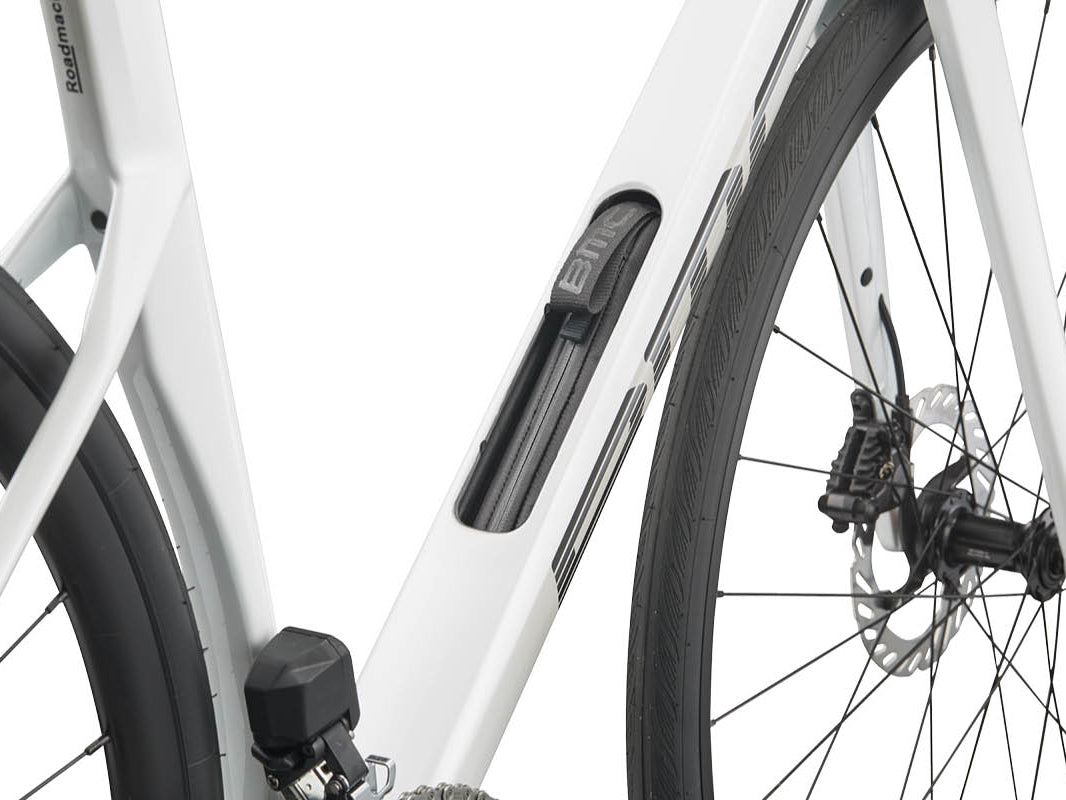

The Roadmachine TWO packages BMC's signature all-road versatility for riders who want smooth speed, long-distance comfort and everyday performance. The lightweight Advanced Carbon frame is compliant, responsive and comfortable over long days, with integrated cables, down tube storage and a rear light built in.
A complete Shimano 105 Di2 groupset delivers consistent, precise shifting and braking, PRD23 wheels with wide, fast-rolling tyres smooth out rough roads, and the integrated RSM01 stem with endurance alloy bars keeps you comfortable and in control.
Highlights
- Roadmachine Gen 3 frame and fork in Advanced Carbon
- Shimano 105 Di2 2x12
- BMC RSM01 integrated stem with alloy handlebar
- PRD23 wheels with Vittoria Rubino V 32mm tyres
- Frame clearance for 40mm tyres (34mm with a front derailleur fitted), plus mudguard mounts
- 9.0kg without pedals (size 54)
Sizes and fit
Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.
Colours
Metallic White.
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
Frameset

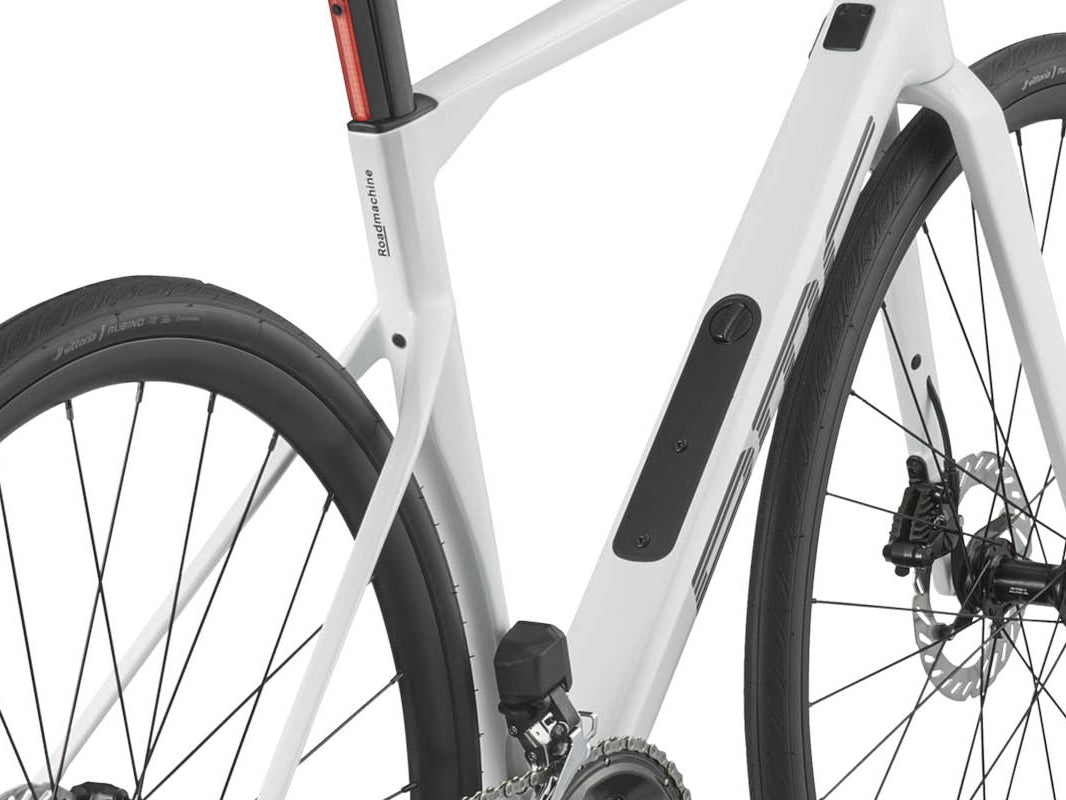

- Frame: Roadmachine Gen 3, Advanced Carbon with Tuned Compliance Concept Endurance, ICS Technology Stealth Cable Routing, Fender Mounts, Integrated Downtube Storage, Full Mount - UDH, 12 x 142mm Thru-Axle
- Fork: Roadmachine Gen 3, Advanced Carbon with Tuned Compliance Concept Endurance, Internal Cable Routing, Fender Mounts, Flat Mount Disc, 12 x 100mm Thru-Axle, 50mm offset Size 47-51, 45mm offset Size 54-61
Cockpit

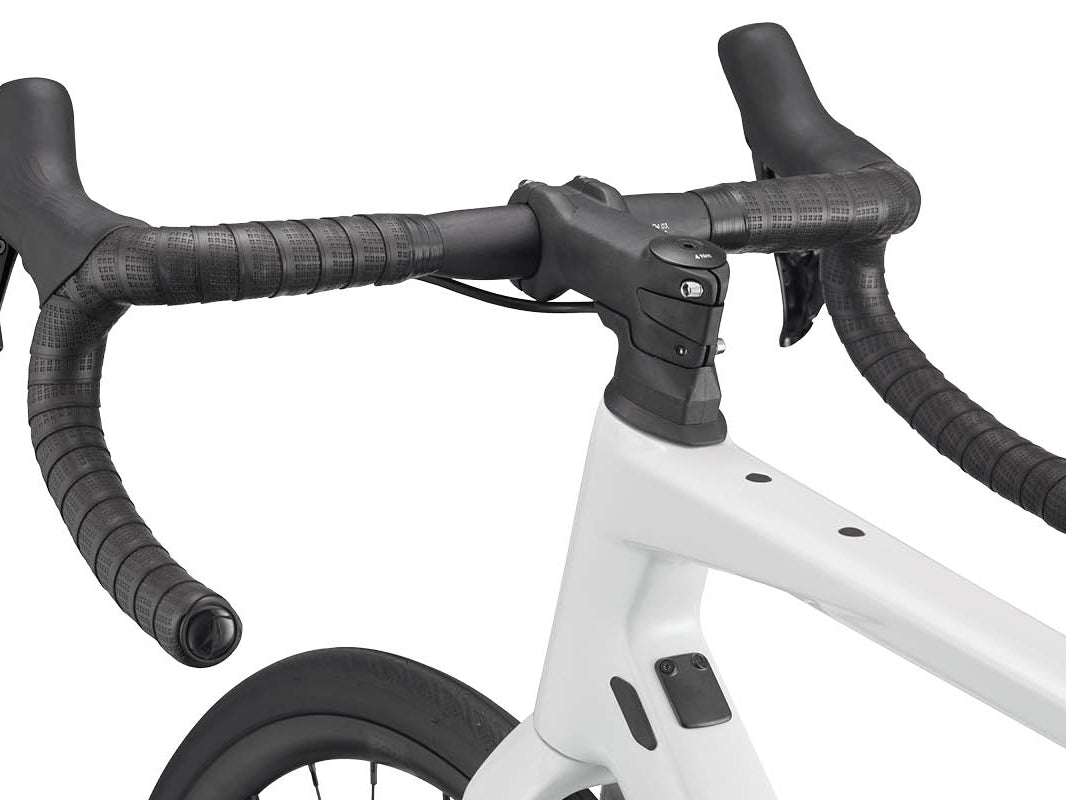

- Stem: BMC RSM01, Integrated Cockpit System Technology
- Handlebar: BMC HB D4 03, Alloy 6061, Endurance Geometry, 125mm drop, 70mm reach, 12° flare
- Bar tape: BMC Tacky 3mm
Seat
- Seatpost: Roadmachine Carbon D-Shaped Seatpost, 0mm Offset Size 47-51 and 15mm Offset Size 54-61, D-Fender Compatible
- Saddle: Selle Italia Model X Greentech, FeC Alloy Rail, 145mm
Drivetrain
- Crankset: Shimano 105 (FC-R7100)
- Chainrings: 50-34T
- Cassette: Shimano (CS-HG710)
- Cassette range: 11-36T
- Chain: Shimano CN-M6100
- Front derailleur: Shimano 105 Di2 (FD-R7150)
- Rear derailleur: Shimano 105 Di2 (RD-R7150)
- Shifters: Shimano 105 Di2 (ST-R7170)
- Gearing: 2 x 12
- Bottom bracket: Shimano Press-Fit Bottom Bracket (BB-RS500-PB)
Brakes
- Brakes: Shimano 105 (BR-R7170)
- Rotors: Shimano 105 (RT-CL700)
- Rotor size: 160 / 160mm
Wheels and tyres
- Rims: PRD23, 23mm
- Hubs: Shimano HB-TC500-12 & FH-TC500-HL, Center Lock, 28H
- Tyres: Vittoria Rubino V, Tube type, 32mm
Accessories
- In the box: Integrated Rear Light 25, Storage Pouch
Additional information
- Tyre clearance: Up to 40mm measured (frameset clearance), limited to 34mm measured by the front derailleur
- Weight: 9.0kg, Size 54 as pictured with all accessories
- System weight limit: 110kg
| Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
| Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
| Seat tube length (mm) | 414 | 461 | 488 | 508 | 529 | 550 |
| Top tube (effective) (mm) | 520 | 537 | 546 | 559 | 571 | 581 |
| Head tube length (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
| Head tube angle (°) | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
| Seat tube angle (°) | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Chainstay length (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| Wheelbase (mm) | 982 | 1000 | 997 | 1010 | 1023 | 1036 |
| Front centre (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
| Fork length (mm) | 379 | 379 | 379 | 379 | 379 | 379 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Standover (mm) | 726 | 762 | 786 | 807 | 828 | 849 |
Same frame geometry across Roadmachine 01 and Roadmachine models.
