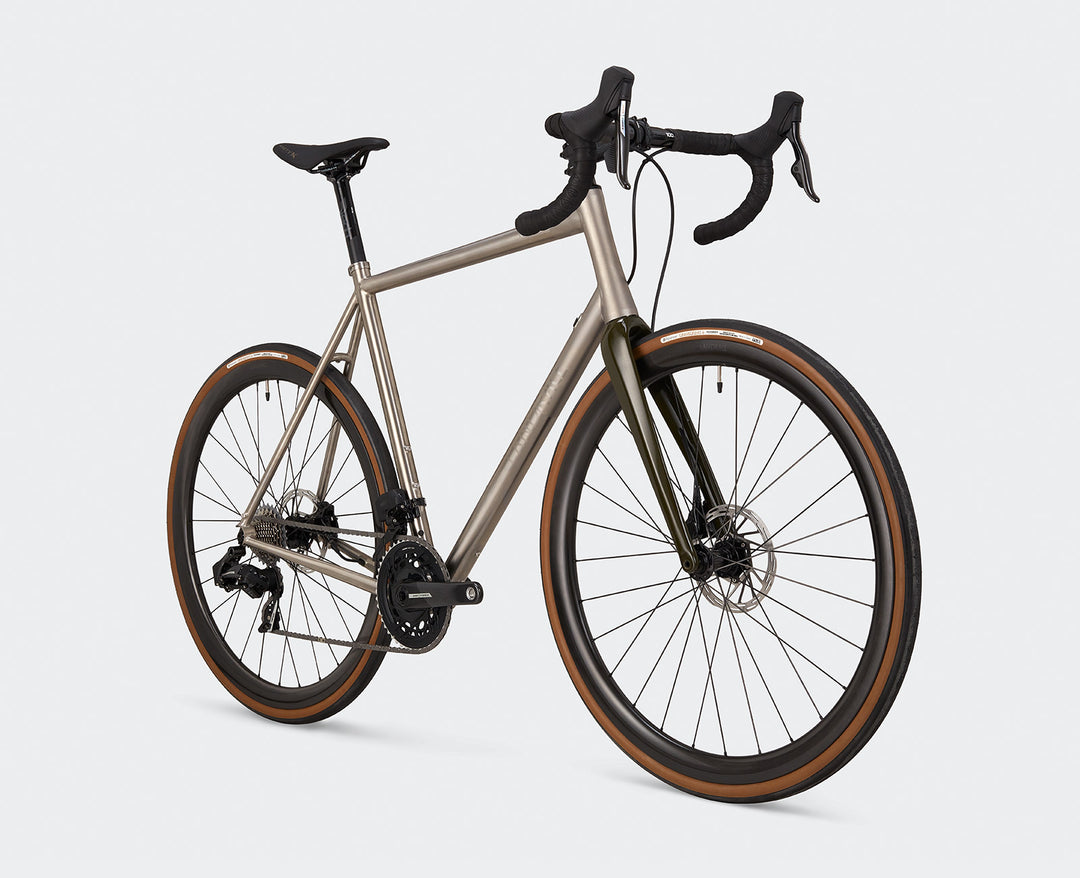

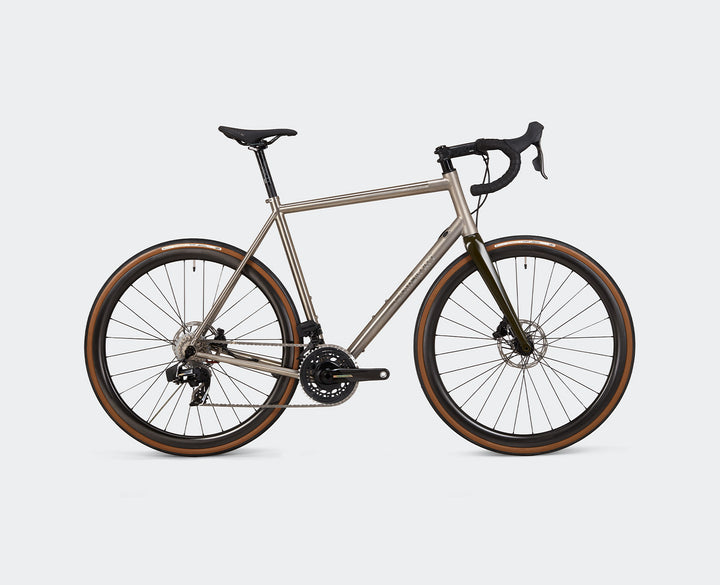

Landrace Tupelo Ti SRAM Force AXS
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
Landrace has decades of experience designing custom frames with some of the world's foremost titanium builders, including Seven, Serotta and Passoni. For its own debut model, the Tupelo, it returned to titanium for its blend of strength, comfort, lightness and longevity.
The frame is made from Titanium 3Al-2.5V, the gold-standard alloy for bicycle frames, with geometry designed to keep you comfortable and in control all day. This complete build is equipped with SRAM Force AXS.
Highlights
- Titanium 3Al-2.5V frame
- SRAM Force AXS groupset
- Sensible stack and reach for all-day comfort
- Low bottom bracket and steeper seat angle
- Clearance for 28mm+ road tyres or up to 38mm gravel tyres
- Multiple bottle cage mounts and mudguard eyelets
Sizes and fit
Available in Small, Medium, Large, XL and XXL.
Colours
Raw titanium.
- Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
- Sized properly: book a bike fit in our Alderley Edge studio
- Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
- 30-day returns (custom builds excluded)
- ★★★★★ 150+ five-star Google reviews
Frameset
- Frame: Landrace Tupelo, Titanium 3Al-2.5V
- Tyre clearance: 28mm+ road, up to 38mm gravel
Drivetrain

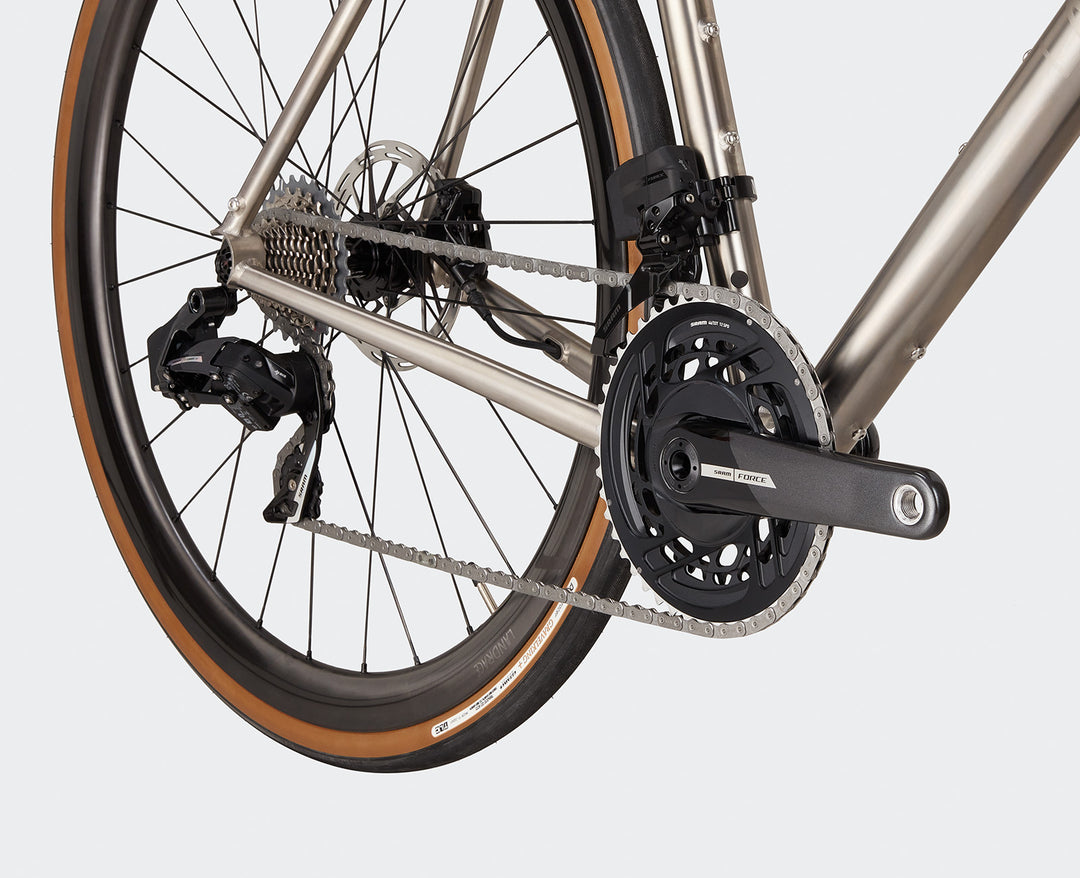

- Groupset: SRAM Force AXS
Extras
- Mounts: multiple bottle cage mounts and mudguard eyelets
| Size | Small | Medium | ML | Large | XL | XXL |
|---|---|---|---|---|---|---|
| Stack (mm) | 555 | 565 | 585 | 605 | 623 | 640 |
| Reach (mm) | 365 | 370 | 376 | 380 | 380 | 390 |
| Seat tube length (mm) | 460 | 480 | 500 | 520 | 535 | 550 |
| Top tube (effective) (mm) | 513 | 533 | 550 | 560 | 571 | 586 |
| Head tube length (mm) | 136 | 144 | 165 | 184 | 203 | 221 |
| Head tube angle (°) | 71 | 71.5 | 71.5 | 72 | 72 | 72 |
| Seat tube angle (°) | 75 | 74 | 73.5 | 73.5 | 73 | 73 |
| Chainstay length (mm) | 425 | 425 | 425 | 425 | 430 | 430 |
| BB drop (mm) | 80 | 80 | 80 | 80 | 80 | 80 |
| Fork length (mm) | 382 | 382 | 382 | 382 | 382 | 382 |
| Fork offset (mm) | 47 | 47 | 47 | 47 | 47 | 47 |
From Landrace's published Tupelo geometry. Sizes: Small 51cm, Medium 53cm, ML 55cm, Large 57cm, XL 59cm, XXL 61cm.
