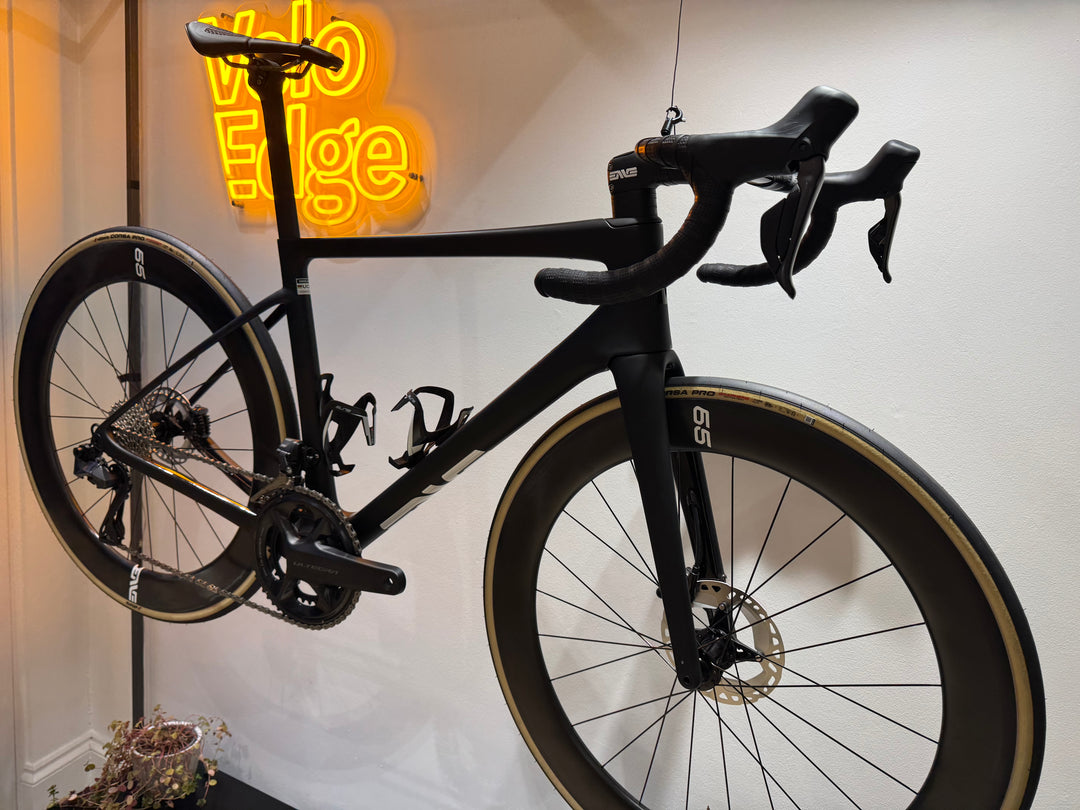

Name: ENVE MELEE Frameset 2024 with Custom White Decals
Brand: Velo Edge
Price: 4500.0 GBP
Availability: OutOfStock

ENVE MELEE Frameset 2024 with Custom White Decals

£5,500.00 £4,500.00 Save £1,000.00

Tax included.

This bike is available through the Cycle to Work Scheme

View in store today! Updated in-house with custom white decals.
The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, get in touch to discuss your bike fit and ideal specification.

From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Free UK shipping available on all orders, excluding bikes, wheelsets and packages over 10kg in weight e.g. turbo trainers.

{"id":54879498076535,"title":"ENVE Black \/ 54cm","option1":"ENVE Black","option2":"54cm","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":{"id":72694691168631,"product_id":14890021814647,"position":2,"created_at":"2025-01-14T16:26:01+00:00","updated_at":"2025-01-14T16:29:12+00:00","alt":null,"width":5712,"height":4284,"src":"\/\/veloedge.co.uk\/cdn\/shop\/files\/893BE15B-CF88-4790-8F9B-06F3D5C40FA9.jpg?v=1736872152","variant_ids":[54879498076535]},"available":true,"name":"ENVE MELEE Frameset 2024 with Custom White Decals - ENVE Black \/ 54cm","public_title":"ENVE Black \/ 54cm","options":["ENVE Black","54cm"],"price":450000,"weight":0,"compare_at_price":550000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":63710367089015,"position":3,"preview_image":{"aspect_ratio":1.333,"height":4284,"width":5712,"src":"\/\/veloedge.co.uk\/cdn\/shop\/files\/893BE15B-CF88-4790-8F9B-06F3D5C40FA9.jpg?v=1736872152"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Real-world Fast™

Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement ENVE’s SES™ rim shapes and deliver aerodynamic performance that is ready to battle with the fastest bikes on the road. Full front-end integration contributes to the Melee’s slippery design.

Integrated For Speed

The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the two-piece Integrated Aero Stem and SES AR Handlebar, the Melee capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

Personalise Your Chassis

An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback.

Drivetrain Compatibility

The Melee is compatible with most drivetrain brands, models, and configurations on the market. The Integrated Front-End provides internal brake hose, housing, and wire routing for 2x and 1x drivetrains alike.

Specifications

Frame	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal routing, Fender Compatible
Fork	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal routing, Fender Compatible

Frame - ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal routing, Fender Compatible
Fork - ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal routing, Fender Compatible
Targeted Application - Road Race/Performance
Sizes (cm) - 47,50,52,54,56,58,60
Fork Rake - 55,51,47,43,39
Frame Size/Fork Rake - 47 cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39
Frame Weight - 850g +/- 2% (Size 56, Painted, No
Hardware)
Headset - ENVE Integrated IS52/IS52 Internal Drop-in
Headset Bearing - 1.5" IS52 Upper and Lower
Seat Post Diameter - ENVE Aero
BB Type - T47 Inboard Bearing
Brake Mount - Flat Mount
Front Axle - 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle - 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tyre Size - 25c
Optimal Tyre Size - 27c-32c
Maximum Tyre Size - 35c
In-Frame Storage - N/A
Frame routing - Internal

A perfect fit on the ENVE MELEE Frameset 2024 with Custom White Decals

Not sure what size you need? Want to ensure this ENVE MELEE Frameset 2024 with Custom White Decals fits perfectly from your first pedal stroke?

Book a free sizing appointment in the Fit Studio at Velo Edge.

Book Now

Geometry

	47	50	52	54	56	58	60
Reach	370	376	381	386	394	400	408
Stack	509	509	525	539	552	571	589
609	506	522	536	547	563	578	598
Fork Rake	55	51	47	47	43	43	39
Seat Tube Length	417	434	452	466	490	508	531
Max Saddle Rail Height (W/ 350mm post)	692	709	727	741	765	783	806
Max Saddle Height (w/ ENVE SLR Saddle)	728	745	763	777	801	819	842
Seat tube angle	75.1	74.5	74	73.8	73.5	73.2	72.7
head tube angle	71.1	714.5	72.2	72.4	73.3	73.3	73.6
head tube length	105	120	130	145	160	180	200
BB Drop	75	75	75	73	73	71	71
Chainstay Length	410	410	410	410	410	412	412
Wheel Base	980	983	983	991	992	1006	1013
Front Centre	582	585	584	592	593	605	611
Standover	693	710	728	744	768	787	809
BB Height (29mm Tire)	268	268	268	270	270	272	272
Trail (27mm tyre)	58.1	59.3	59.1	57.9	56.8	56.5	58.1
Trail (29mm Tire)	58.8	59.8	59.7	57.9	56.8	56.5	58.1
Trail (31mm Tire)	59.4	60.4	60.2	59	57.8	57.5	59.2
Trail (33mm tire)	60.2	61.2	61	59.7	58.5	58.2	59.9
Trail (35mm Tire)	60.9	62	61.7	60.4	59.2	58.9	60.5

ENVE MELEE Frameset 2024 with Custom White Decals
