Real-world Fast™

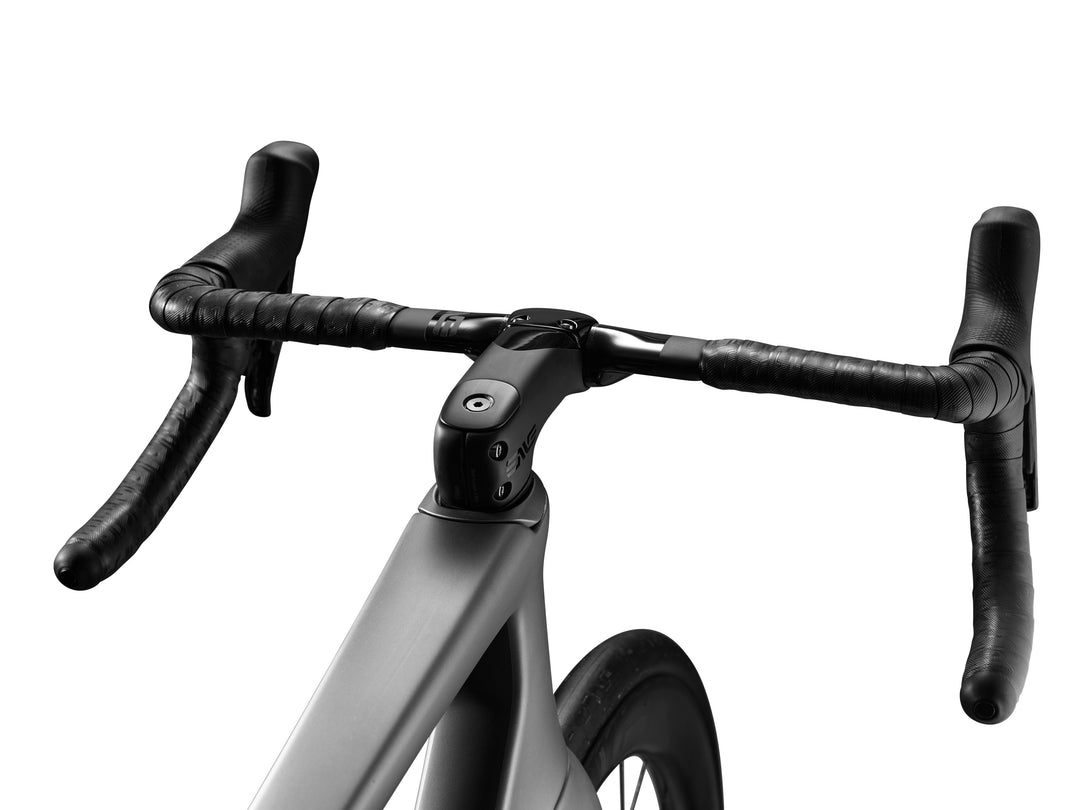

Integrated For Speed
Personalise Your Chassis
Drivetrain Compatibility
Specifications

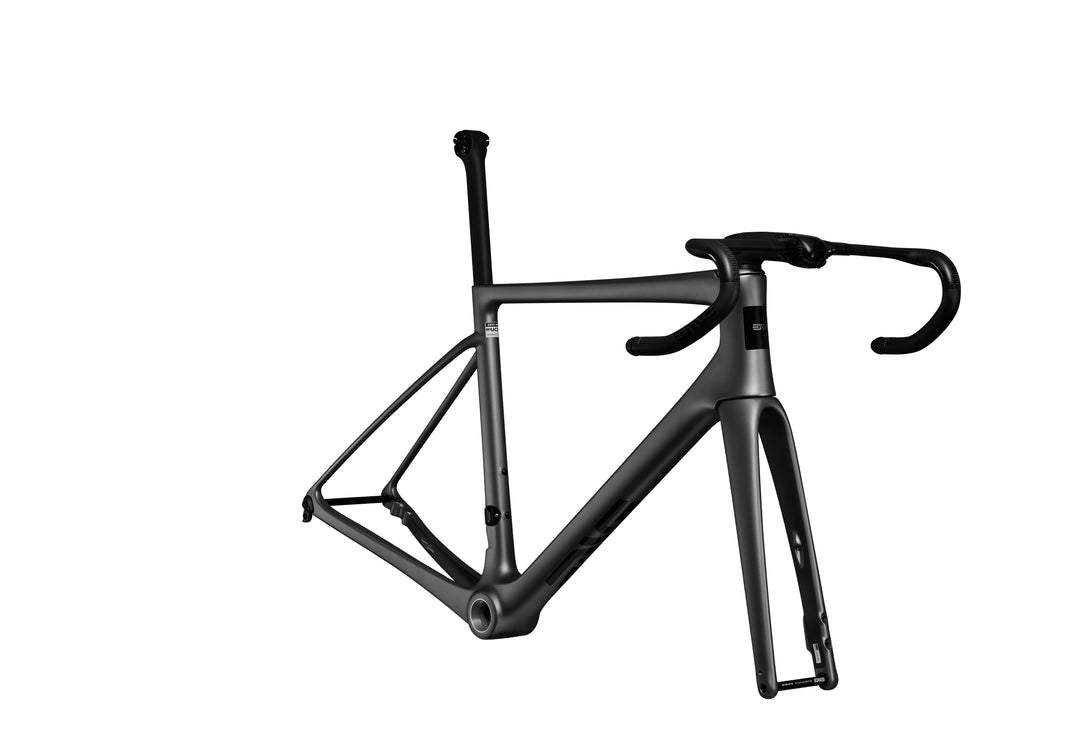

Frame | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal routing, Fender Compatible |
Fork | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal routing, Fender Compatible |
- Frame - ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal routing, Fender Compatible

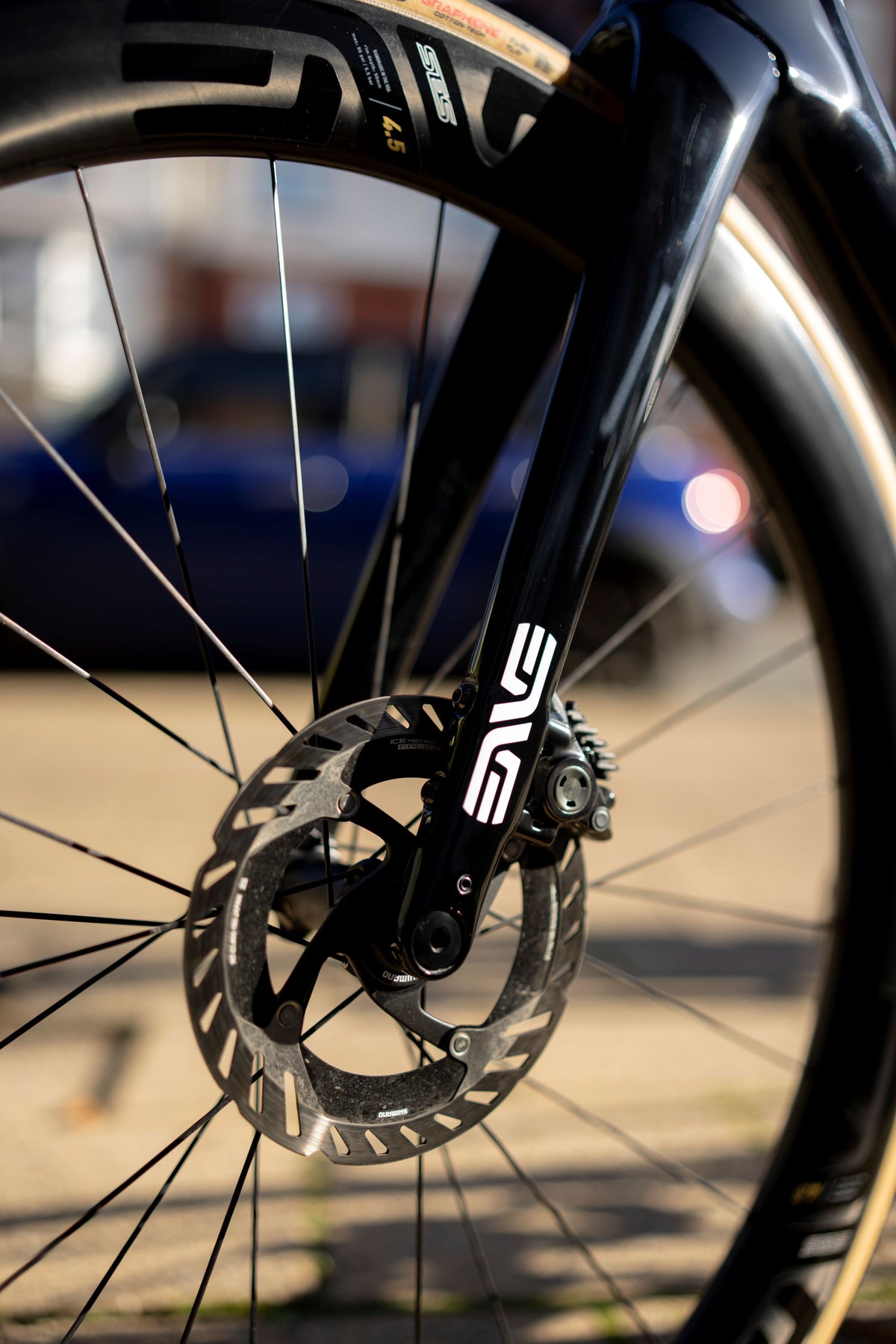

- Fork - ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal routing, Fender Compatible
- Targeted Application - Road Race/Performance
- Sizes (cm) - 47,50,52,54,56,58,60
- Fork Rake - 55,51,47,43,39
- Frame Size/Fork Rake - 47 cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39
- Frame Weight - 850g +/- 2% (Size 56, Painted, No
- Hardware)
- Headset - ENVE Integrated IS52/IS52 Internal Drop-in
- Headset Bearing - 1.5" IS52 Upper and Lower
- Seat Post Diameter - ENVE Aero
- BB Type - T47 Inboard Bearing
- Brake Mount - Flat Mount
- Front Axle - 12x100 (Total Length: 122, TP:1.5, TL:15)
- Rear Axle - 12x142 (Total Length: 168, TP:1.0, TL:14)
- Minimum Tyre Size - 25c
- Optimal Tyre Size - 27c-32c
- Maximum Tyre Size - 35c
- In-Frame Storage - N/A
- Frame routing - Internal
A perfect fit on the ENVE Melee Frameset
Not sure what size you need? Want to ensure this ENVE Melee Frameset fits perfectly from your first pedal stroke?
Book a free sizing appointment in the Fit Studio at Velo Edge.

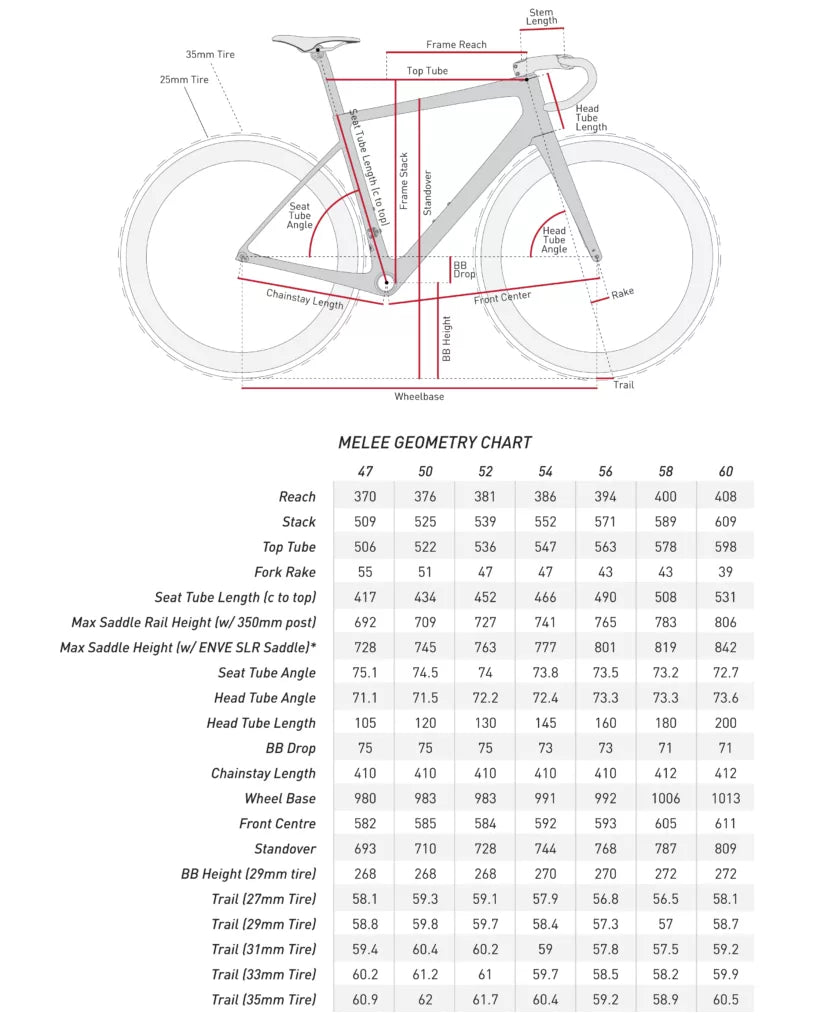

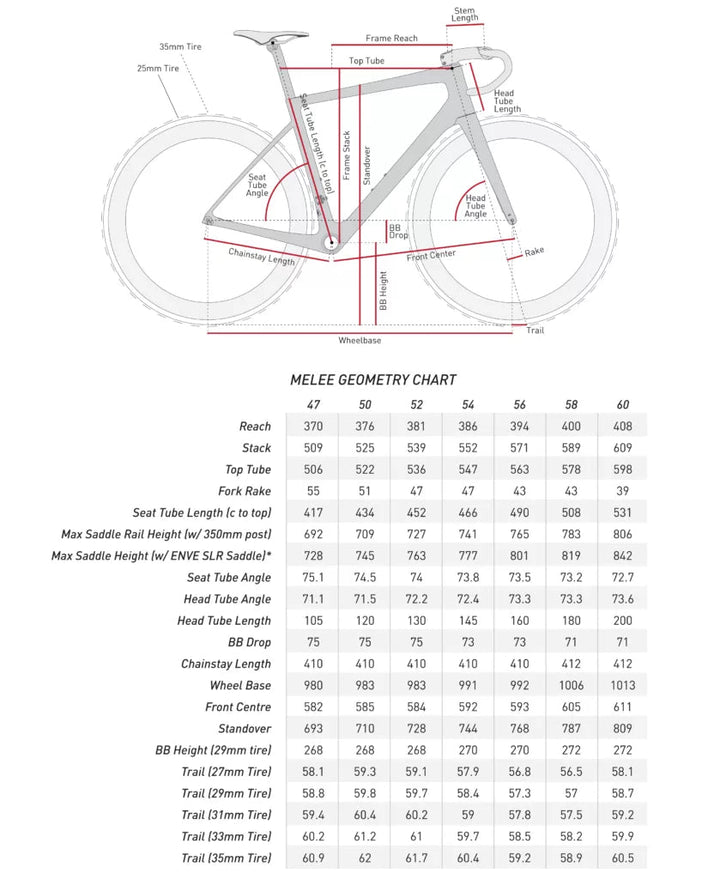

Geometry
47 | 50 | 52 | 54 | 56 | 58 | 60 | |
Reach | 370 | 376 | 381 | 386 | 394 | 400 | 408 |
Stack | 509 | 509 | 525 | 539 | 552 | 571 | 589 |
609 | 506 | 522 | 536 | 547 | 563 | 578 | 598 |
Fork Rake | 55 | 51 | 47 | 47 | 43 | 43 | 39 |
Seat Tube Length | 417 | 434 | 452 | 466 | 490 | 508 | 531 |
Max Saddle Rail Height (W/ 350mm post) | 692 | 709 | 727 | 741 | 765 | 783 | 806 |
Max Saddle Height (w/ ENVE SLR Saddle) | 728 | 745 | 763 | 777 | 801 | 819 | 842 |
Seat tube angle | 75.1 | 74.5 | 74 | 73.8 | 73.5 | 73.2 | 72.7 |
head tube angle | 71.1 | 714.5 | 72.2 | 72.4 | 73.3 | 73.3 | 73.6 |
head tube length | 105 | 120 | 130 | 145 | 160 | 180 | 200 |
BB Drop | 75 | 75 | 75 | 73 | 73 | 71 | 71 |
Chainstay Length | 410 | 410 | 410 | 410 | 410 | 412 | 412 |
Wheel Base | 980 | 983 | 983 | 991 | 992 | 1006 | 1013 |
Front Centre | 582 | 585 | 584 | 592 | 593 | 605 | 611 |
Standover | 693 | 710 | 728 | 744 | 768 | 787 | 809 |
BB Height (29mm Tire) | 268 | 268 | 268 | 270 | 270 | 272 | 272 |
Trail (27mm tyre) | 58.1 | 59.3 | 59.1 | 57.9 | 56.8 | 56.5 | 58.1 |
Trail (29mm Tire) | 58.8 | 59.8 | 59.7 | 57.9 | 56.8 | 56.5 | 58.1 |
Trail (31mm Tire) | 59.4 | 60.4 | 60.2 | 59 | 57.8 | 57.5 | 59.2 |
Trail (33mm tire) | 60.2 | 61.2 | 61 | 59.7 | 58.5 | 58.2 | 59.9 |
Trail (35mm Tire) | 60.9 | 62 | 61.7 | 60.4 | 59.2 | 58.9 | 60.5 |
