Cannondale SuperSix EVO 1 SL
CANC1118GU1048
This bike is available through the Cycle to Work Scheme
Unsure of your size?
Book a sizing appointment in our bike fit studio and get the right fit.
If the high mountains are where you like to play, this is your race bike. The superlight Gen 5 SuperSix EVO Hi-MOD frame goes all-in on weight saving with the featherweight SystemBar Road SL cockpit and Reserve 34|37 carbon climbing wheels.
Shimano Ultegra Di2 delivers seamless electronic shifting, while a 4iiii PRECISION 3+ PRO power meter keeps you in your target zone until it's time to go. Tuned to give gravity the slip.
Highlights
- Superlight, low-drag Gen 5 SuperSix EVO frameset in Hi-MOD carbon
- Cannondale SystemBar Road SL – ultralight, one-piece carbon bar and stem
- Reserve 34|37 carbon climbing wheels with a no-fault lifetime warranty
- Shimano Ultegra Di2 12-speed electronic groupset
- 4iiii PRECISION 3+ PRO power meter
- Fizik Vento Antares R1 saddle with carbon rails
Sizes and fit
Available in 44cm, 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 61cm.
Colours
Black.
Frameset
- Frame: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
- Fork: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
- Headset: Integrated, 1-1/8" - 1-1/4"
Drivetrain

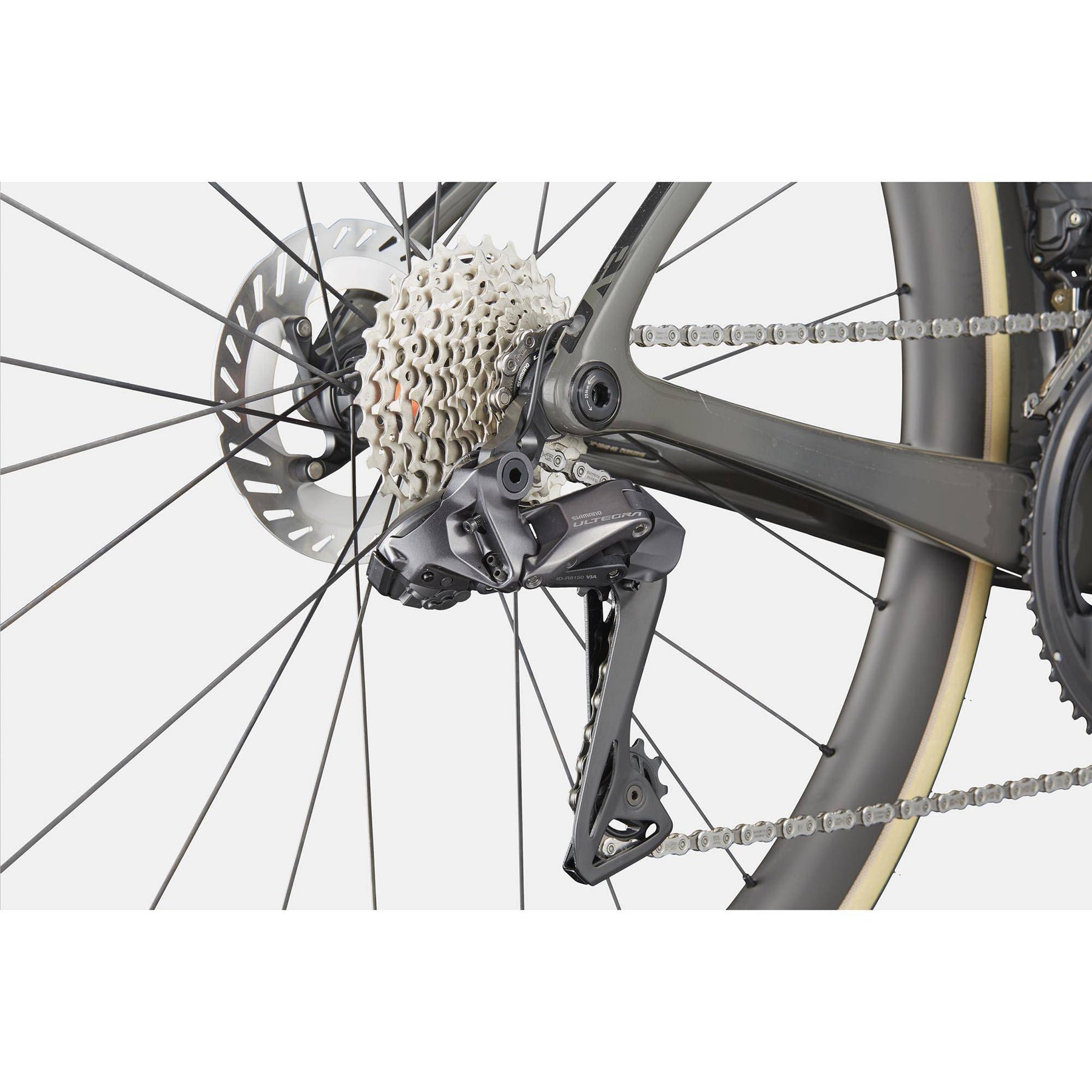

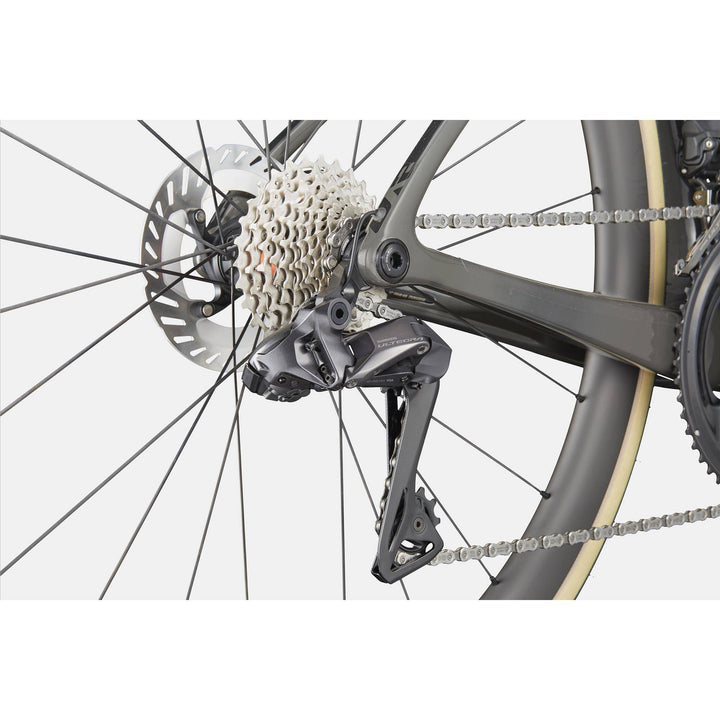

- Rear derailleur: Shimano Ultegra Di2 R8150, 12-speed
- Front derailleur: Shimano Ultegra Di2 R8150
- Shifters: Shimano Ultegra Di2 R8170, wireless, 2x12-speed
- Chain: Shimano Ultegra, 12-speed

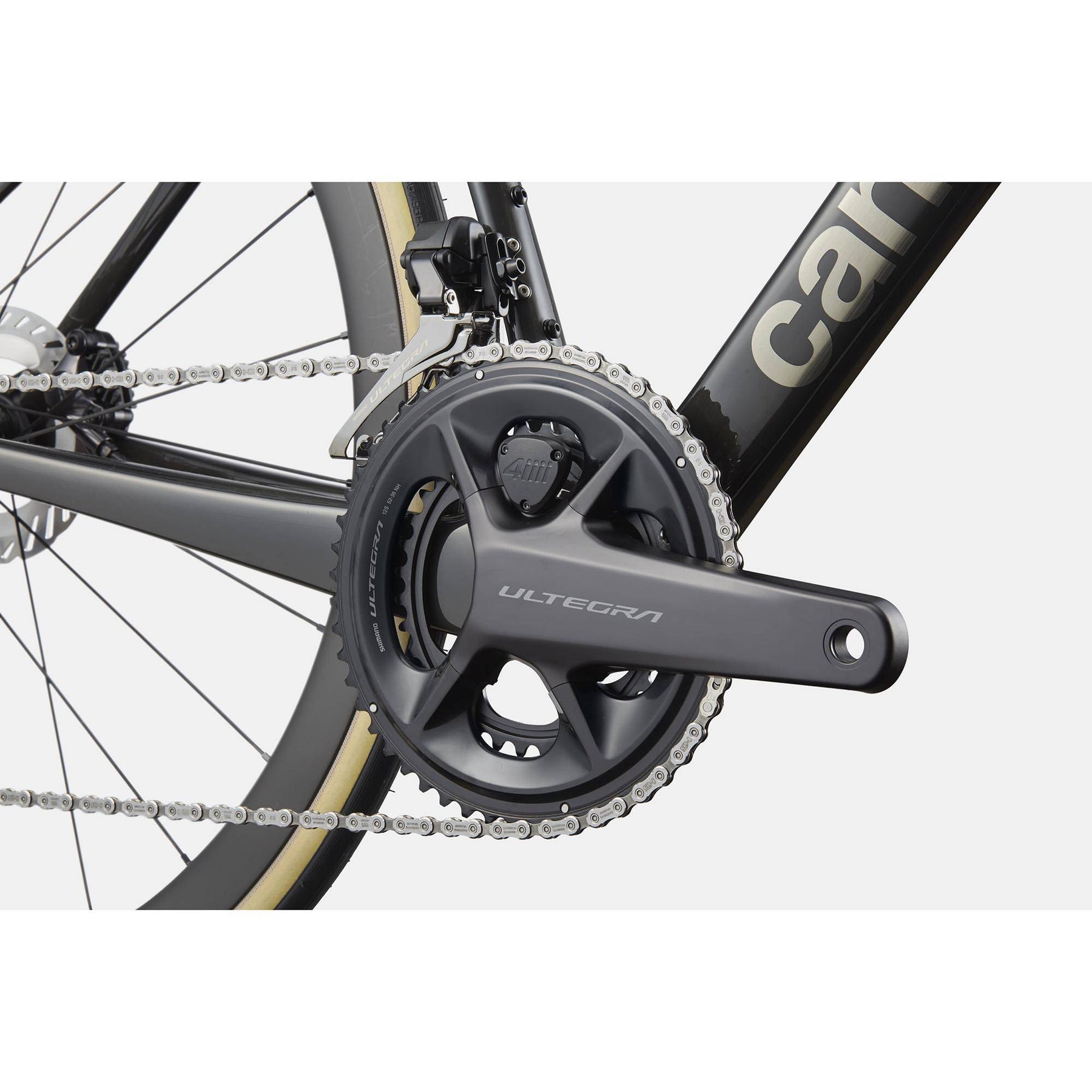

- Crankset: Shimano Ultegra R8100, 52/36, 4iiii PRECISION 3+ PRO Power Meter: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
- Cassette: Shimano Ultegra R8100, 11-30, 12-speed
- Bottom bracket: Shimano BB-R60, BSA 68
- Brakes: Shimano Ultegra R8170 hydraulic disc, 160/140mm CL800 rotors

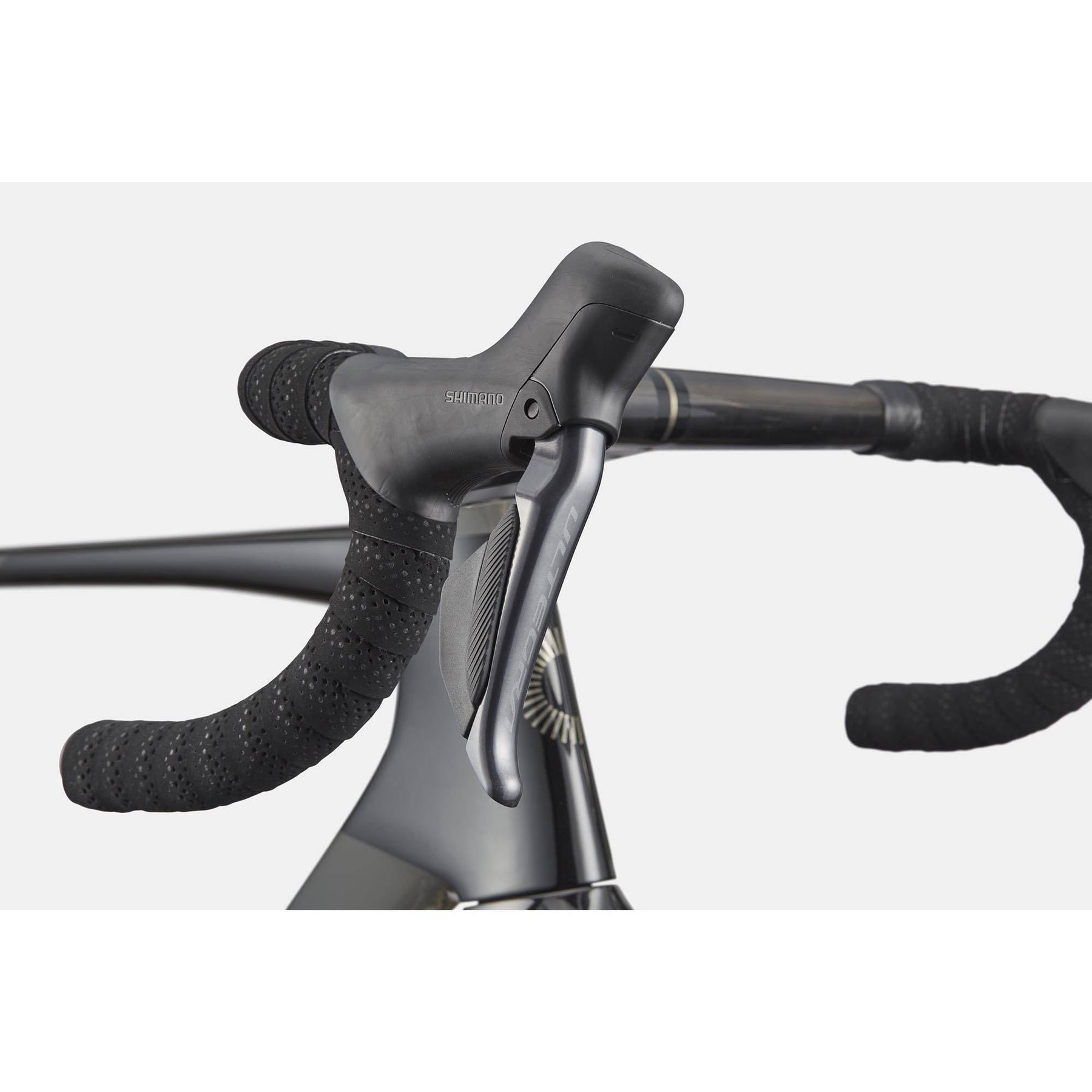

- Brake levers: Shimano Ultegra Di2 R8170 hydraulic disc
Wheels and tyres
- Rims: Reserve 34|37 Carbon, Turbulent Aero, tubeless ready
- Spokes: Sapim CX-Ray Aero straight pull
- Hubs: DT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
- Tyres: Vittoria Corsa Pro, 700x28c, tubeless ready
Cockpit and contact points

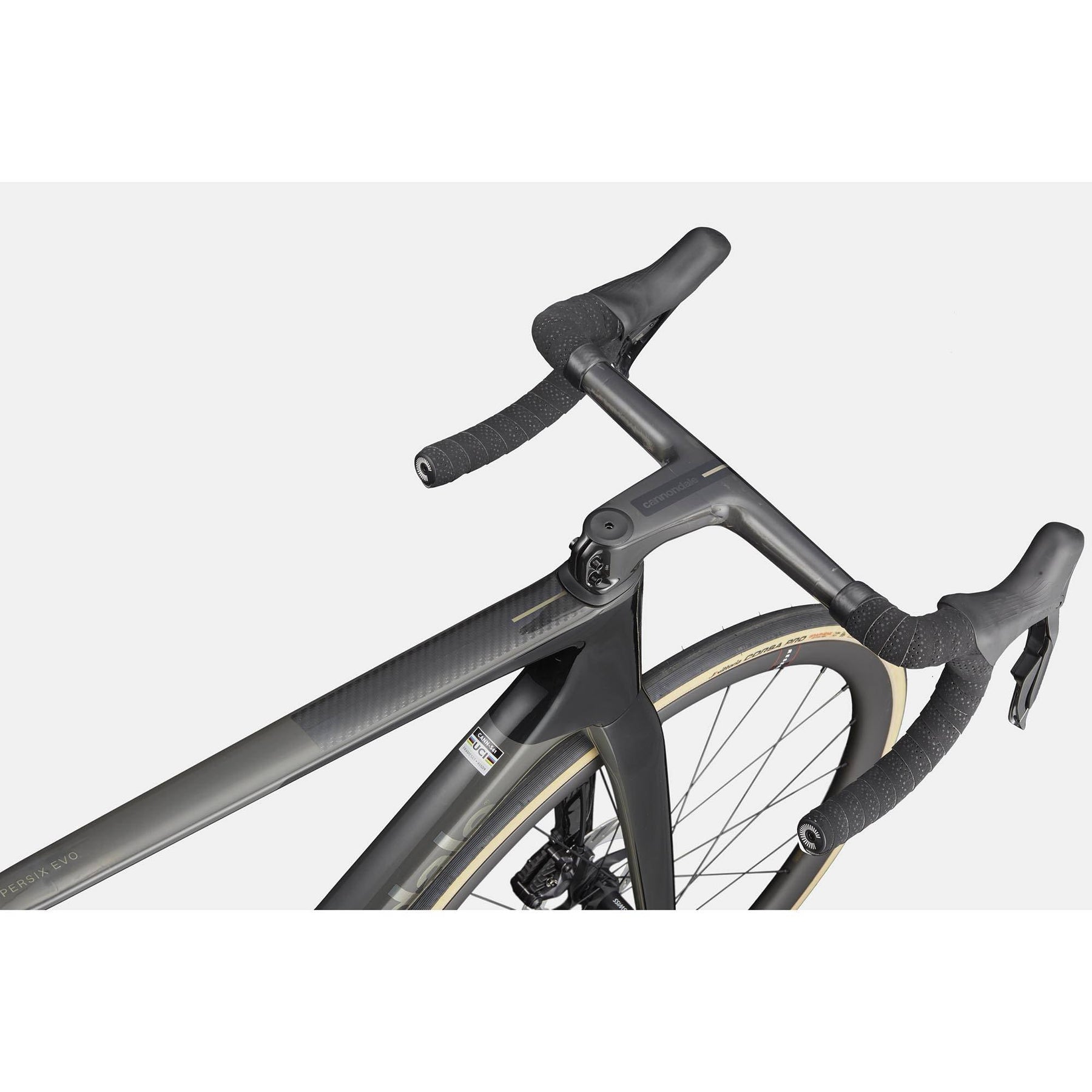

- Handlebar: Cannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem: 90x380mm (44-52cm), 100x380mm (54-56cm), 110x380mm (58cm), 110x400mm (61cm)
- Stem: Cannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem
- Bar tape: Fizik Tempo Bondcush Soft, 3mm
- Saddle: Fizik Vento Antares R1, carbon rails, 140mm
- Seatpost: Cannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extras
- Included: Cannondale Gripper Aero Bottles & CarbonGrip Aero Cages, Fillmore tubeless valves, SystemBar SL Garmin/Wahoo computer mount, Shimano EC300 charging connector
| Size | 44cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack (mm) | 495 | 508 | 520 | 532 | 545 | 565 | 585 | 615 |
| Reach (mm) | 373 | 376 | 379 | 383 | 387 | 393 | 398 | 406 |
| Seat tube length (mm) | 400 | 429 | 448 | 467 | 490 | 510 | 532 | 570 |
| Top tube (effective) (mm) | 510 | 522 | 529 | 536 | 544 | 560 | 577 | 600 |
| Head tube length (mm) | 89 | 101 | 114 | 130 | 143 | 154 | 178 | 209 |
| Head tube angle (°) | 70.9 | 71.2 | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 |
| Seat tube angle (°) | 74.5 | 74 | 74 | 74 | 74 | 73.5 | 73 | 72.5 |
| Chainstay length (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| BB drop (mm) | 74 | 74 | 74 | 72 | 72 | 72 | 69 | 69 |
| BB height (mm) | 269 | 269 | 269 | 271 | 271 | 271 | 274 | 274 |
| Wheelbase (mm) | 980 | 985 | 993 | 1002 | 1010 | 995 | 1007 | 1024 |
| Front centre (mm) | 582 | 586 | 594 | 602 | 611 | 595 | 607 | 624 |
| Fork length (mm) | 376 | 376 | 376 | 376 | 376 | 376 | 376 | 376 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 55 | 45 | 45 | 45 |
| Trail (mm) | 60 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
| Standover (mm) | 694 | 717 | 733 | 752 | 770 | 790 | 812 | 846 |
Transcribed from Cannondale's published geometry chart (shown above) and converted from cm to mm. Applies to all SuperSix EVO Gen 5 carbon models, including SL and LAB71.
