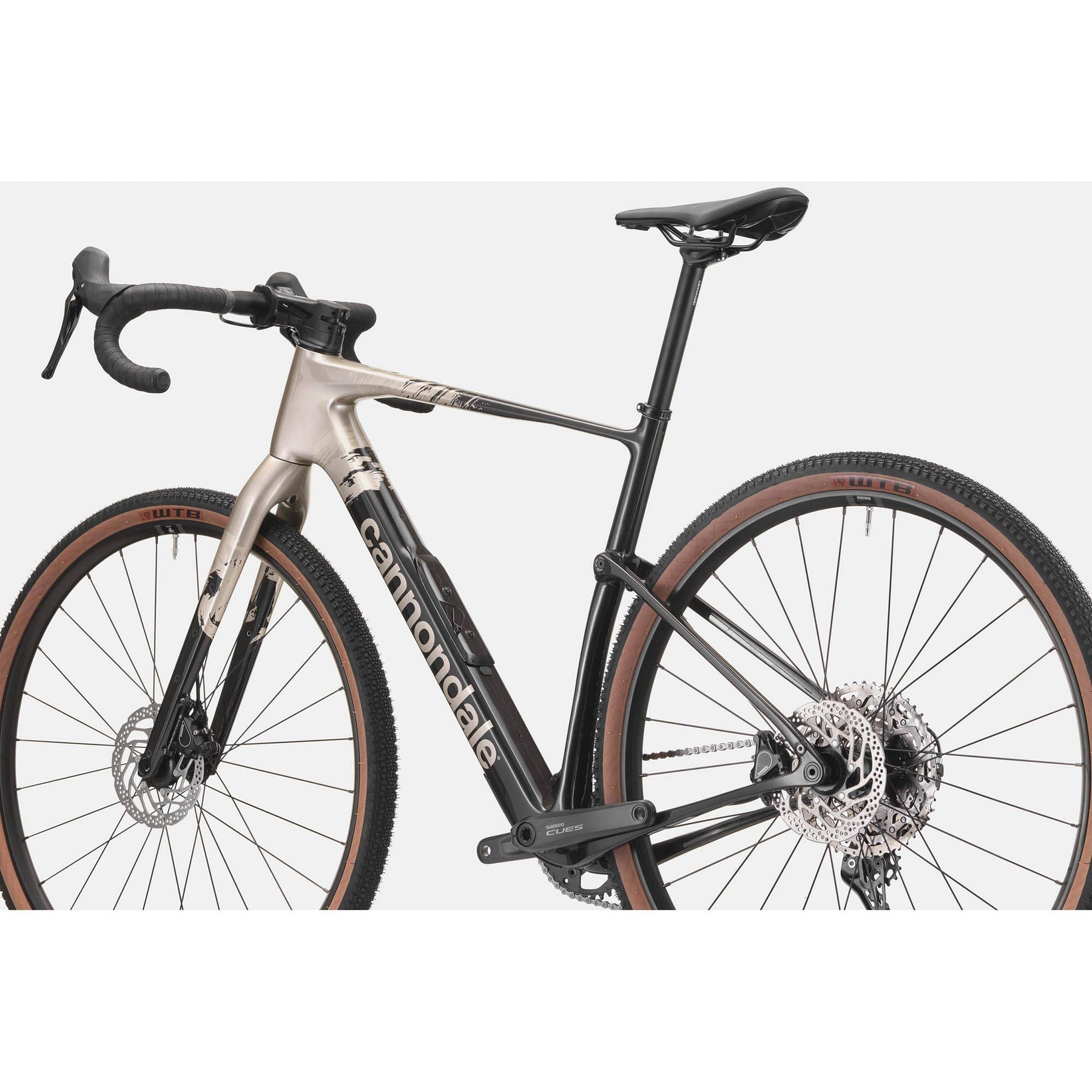

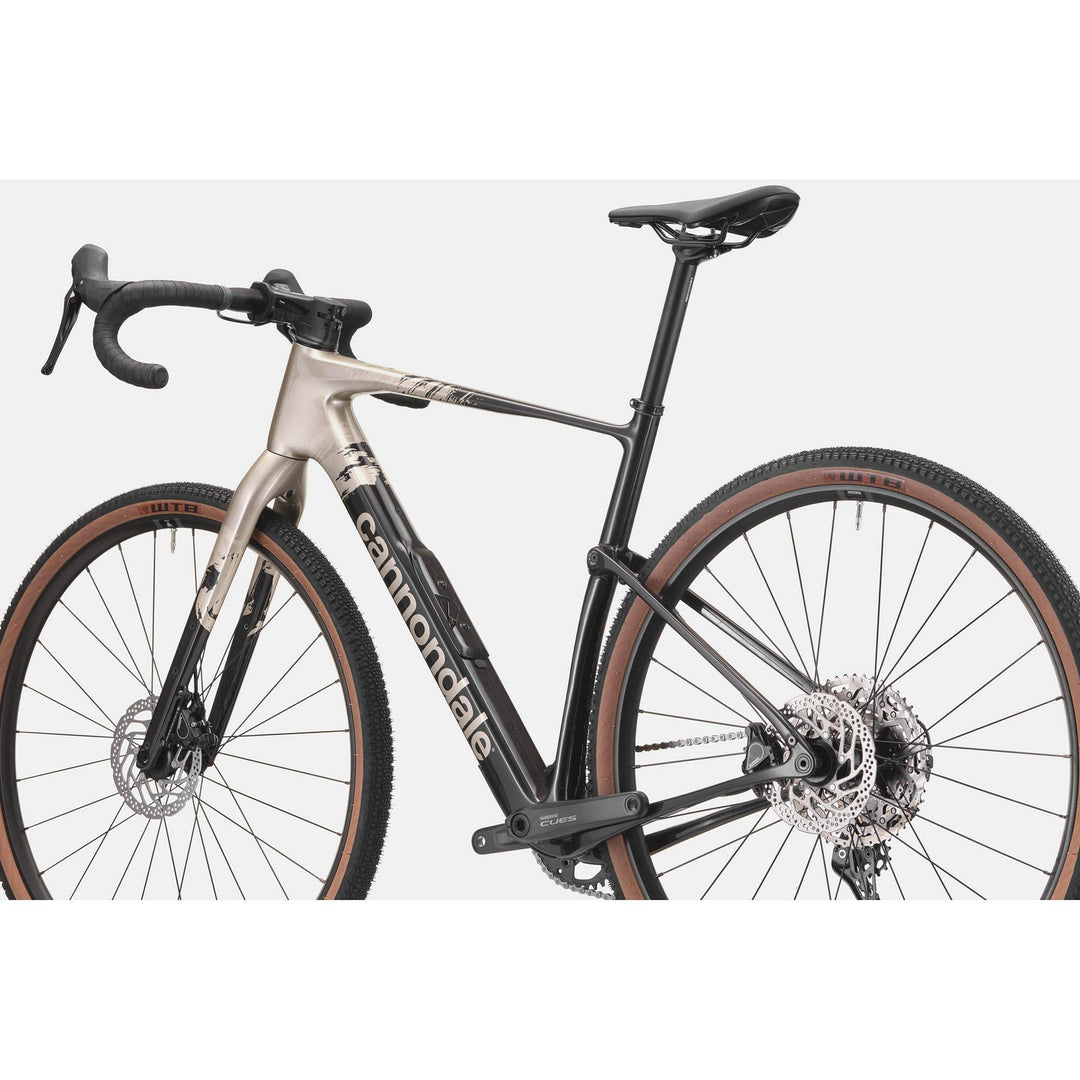

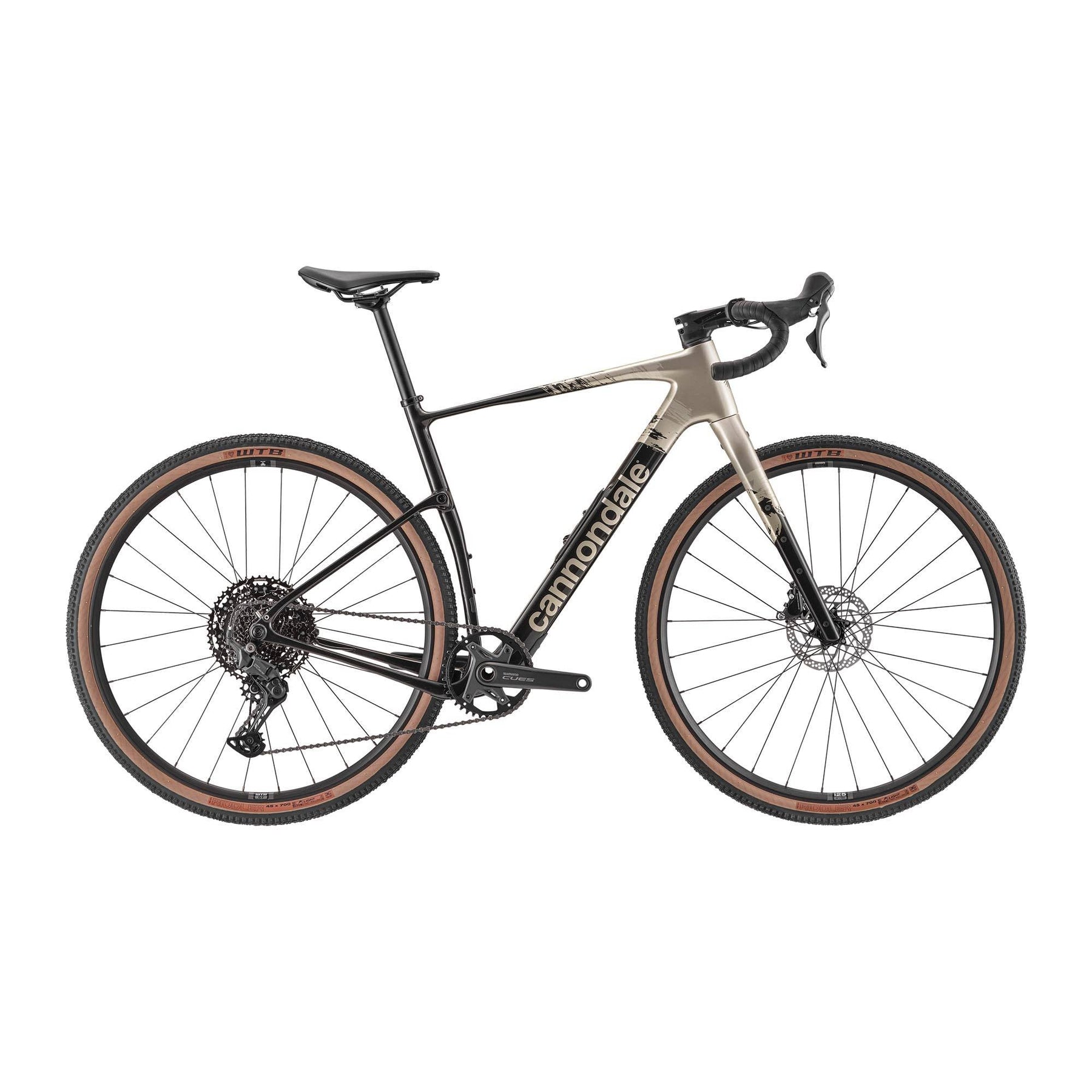

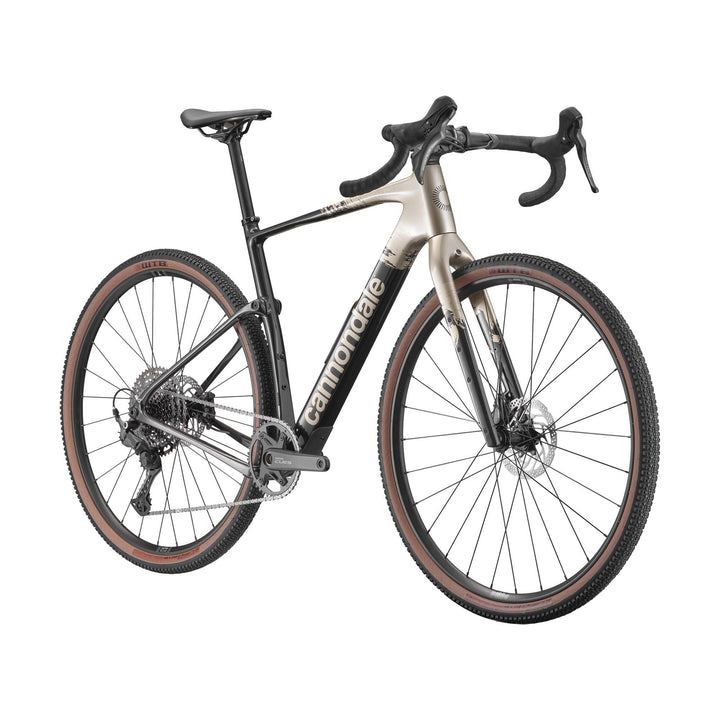

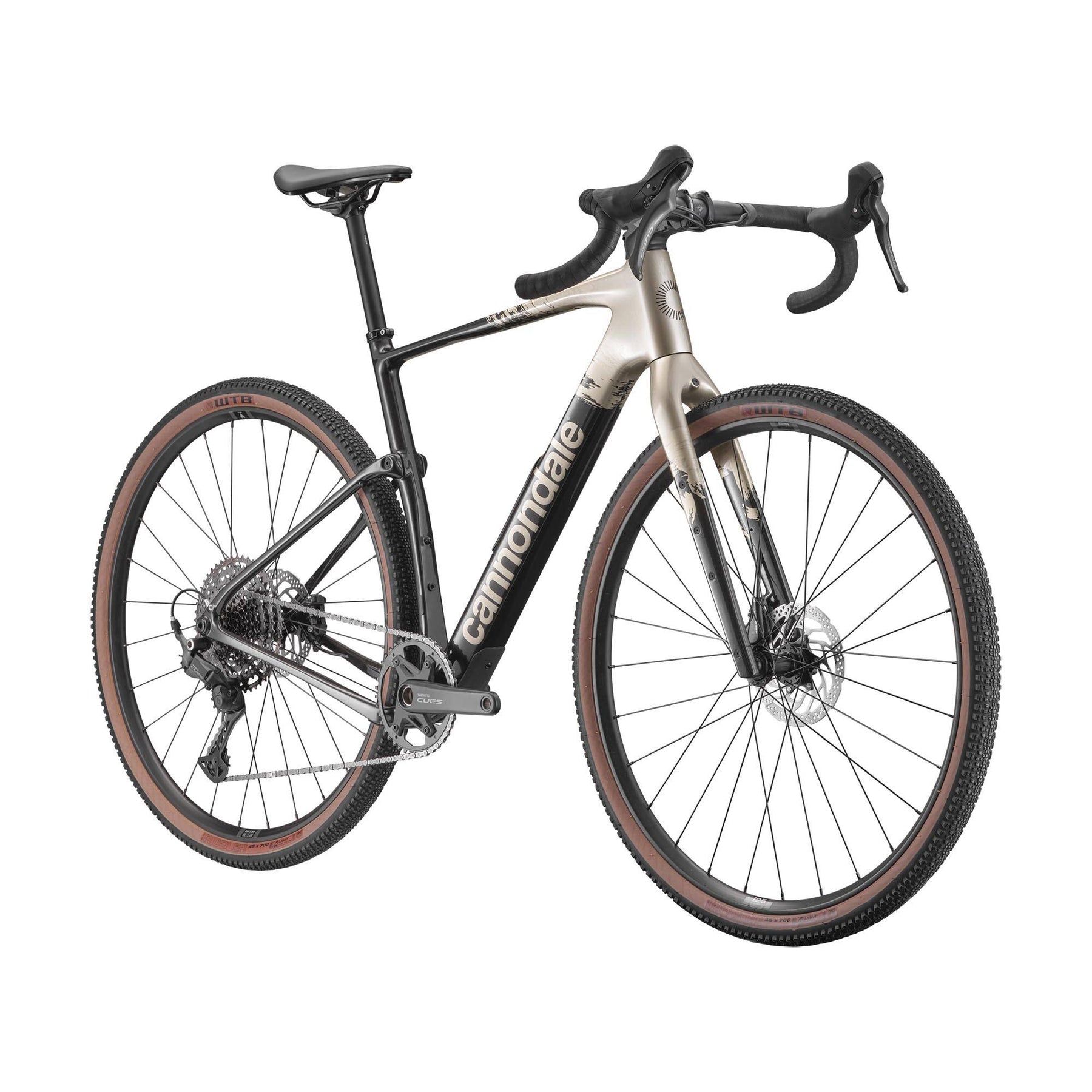

Cannondale Topstone Carbon 4 CUES 1x Gravel Bike

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 3 of 8

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 4 of 8

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 5 of 8

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 6 of 8

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 7 of 8

Cannondale Topstone Carbon 4 CUES 1x gravel bike in Platinum, view 8 of 8

£2,500.00

Tax included.

This bike is available through the Cycle to Work Scheme

Unsure of your size?

Book a sizing appointment in our bike fit studio and get the right fit.

Cue up some serious gravel performance. Topstone Carbon 4 CUES pairs the bump-smoothing KingPin carbon frame with Shimano CUES U6000 1x11-speed shifting and CUES hydraulic disc brakes.

With plenty of gear mounts, StashPort downtube storage and 45mm tyres, it's ready for gravel riding, bikepacking or exploring the back roads. Confidence comes as standard.

Highlights

Lightweight carbon frameset with KingPin rear suspension, Proportional Response size-specific construction and StashPort downtube storage
Shimano CUES U6000 1x11-speed – durable, reliable, wide-range shifting
Powerful, controllable Shimano CUES hydraulic disc brakes
WTB ST i25 rims with Shimano hubs and tubeless-ready WTB Riddler 45mm tyres
Cannondale 3 flared handlebar for comfortable, gravel-friendly hand positions

Sizes and fit

Available in 47cm, 51cm, 54cm, 56cm, 58cm and 61cm.

Colours

Platinum.

Questions on size or spec? Call 01625 403803 or visit us at 48a London Road, Alderley Edge
Sized properly: book a bike fit in our Alderley Edge studio
Not in the shop? Supplier stock reaches us in 4–5 days, then we post it or it's ready to collect
30-day returns (custom builds excluded)
★★★★★ 150+ five-star Google reviews

Frameset

Frame: Topstone Carbon, KingPin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable mudguard bridge, multiple gear/bottle mounts
Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, mudguard mounts
Headset: Acros IS52/40 ICR

Drivetrain

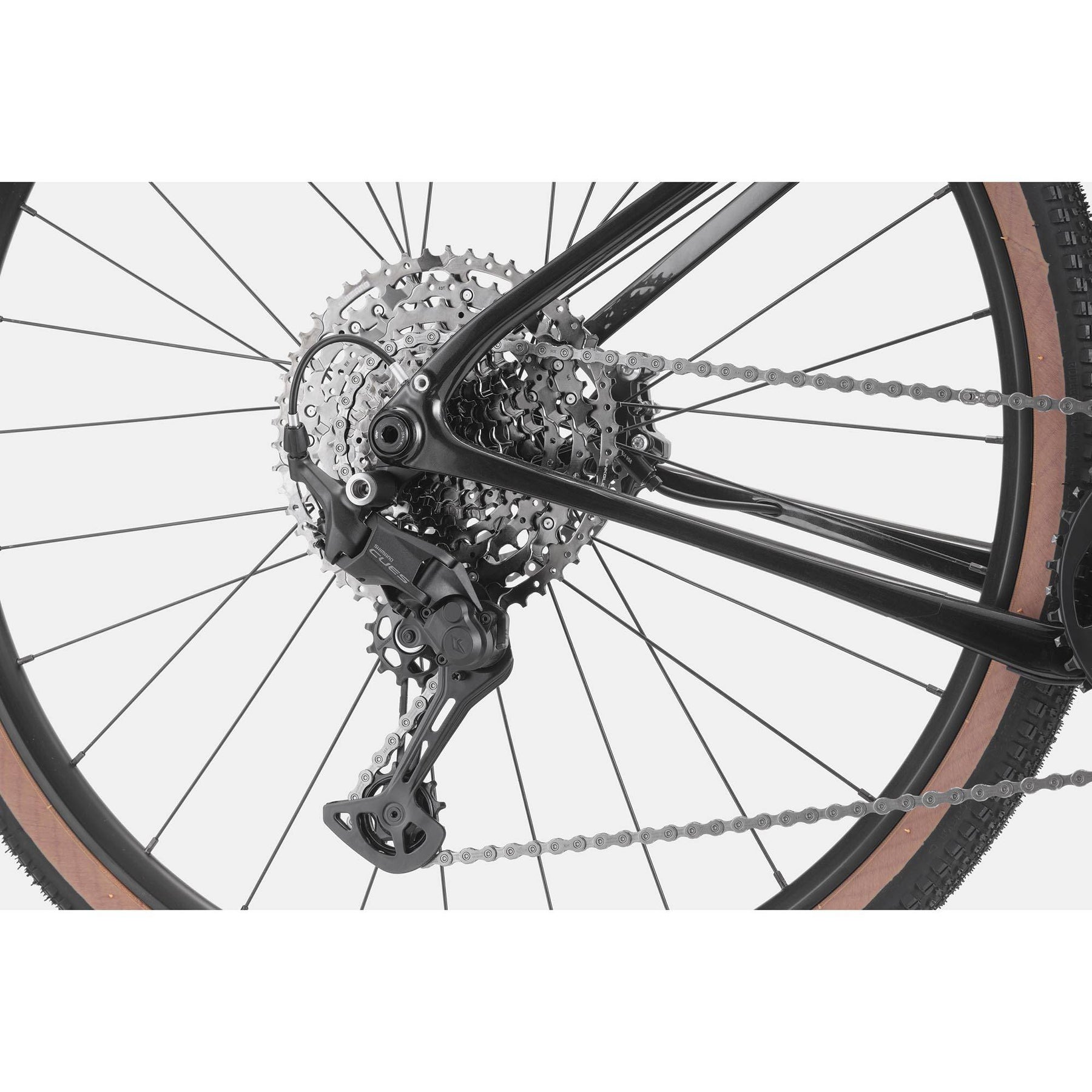

Rear derailleur: Shimano CUES U6000, Shadow RD+, 11-speed

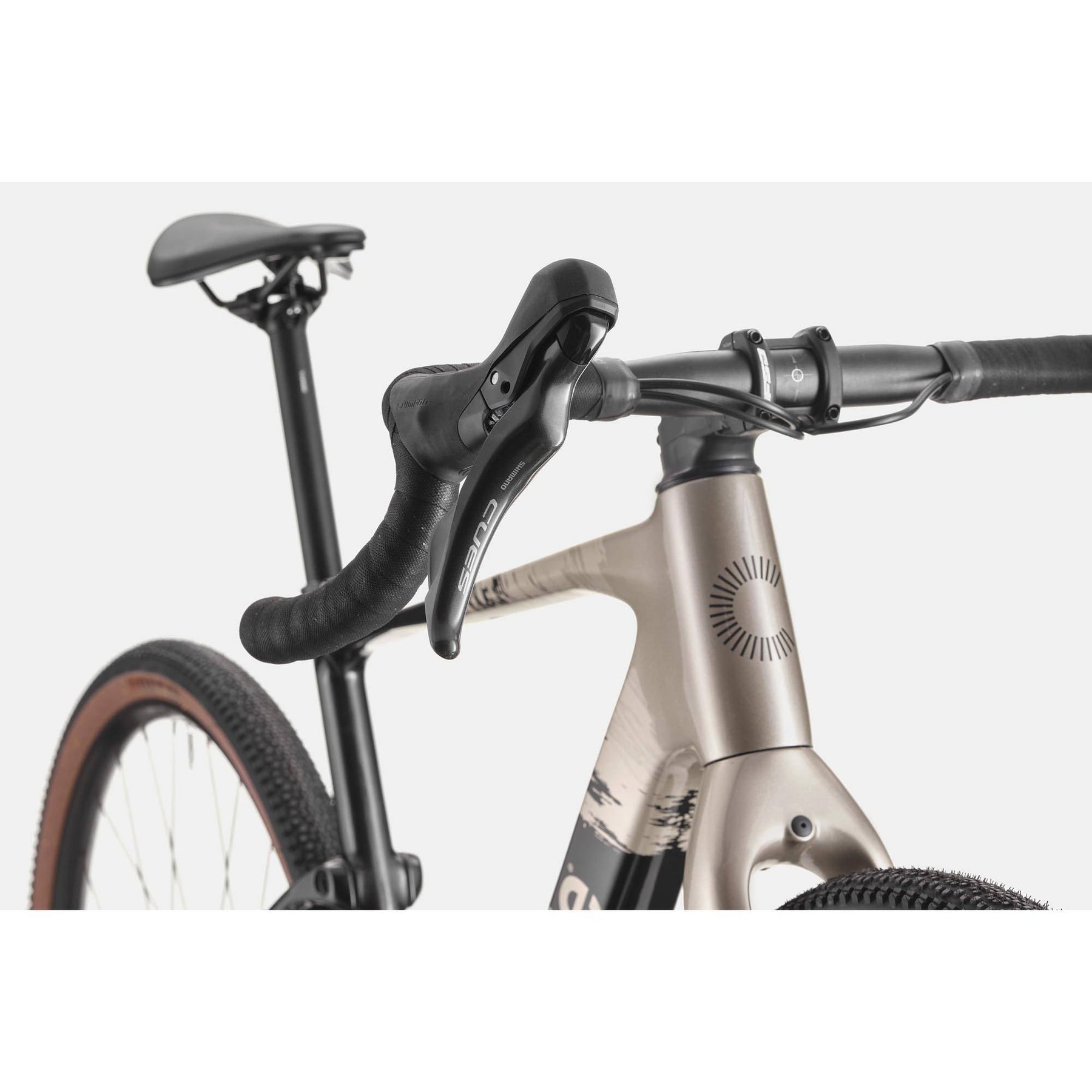

Shifters: Shimano CUES U6030, 11-speed
Chain: Shimano LG500, LinkGlide, 11-speed

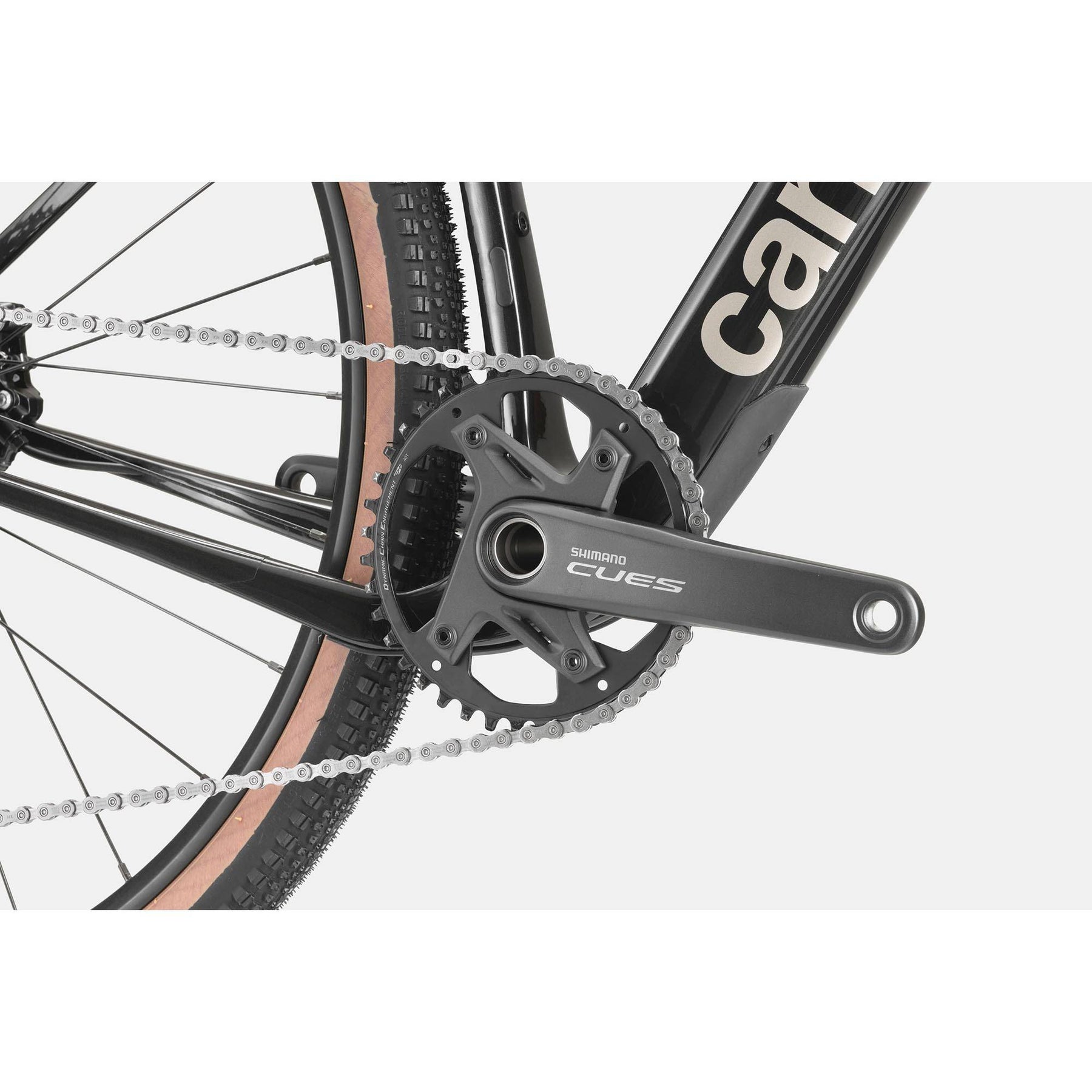

Crankset: Shimano CUES 6030, 40T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
Cassette: Shimano CUES LG400, 11-50, 11-speed
Bottom bracket: Shimano BSA 68
Brakes: Shimano CUES RS405 hydraulic disc, 160/160mm RT30 rotors
Brake levers: Shimano CUES U6030 hydraulic disc

Wheels and tyres

Rims: WTB ST i25 TCS, 28h, tubeless ready
Spokes: Stainless Steel, 14g
Hubs: Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
Tyres: WTB Riddler TCS Light, 700x45c, tubeless ready

Cockpit and contact points

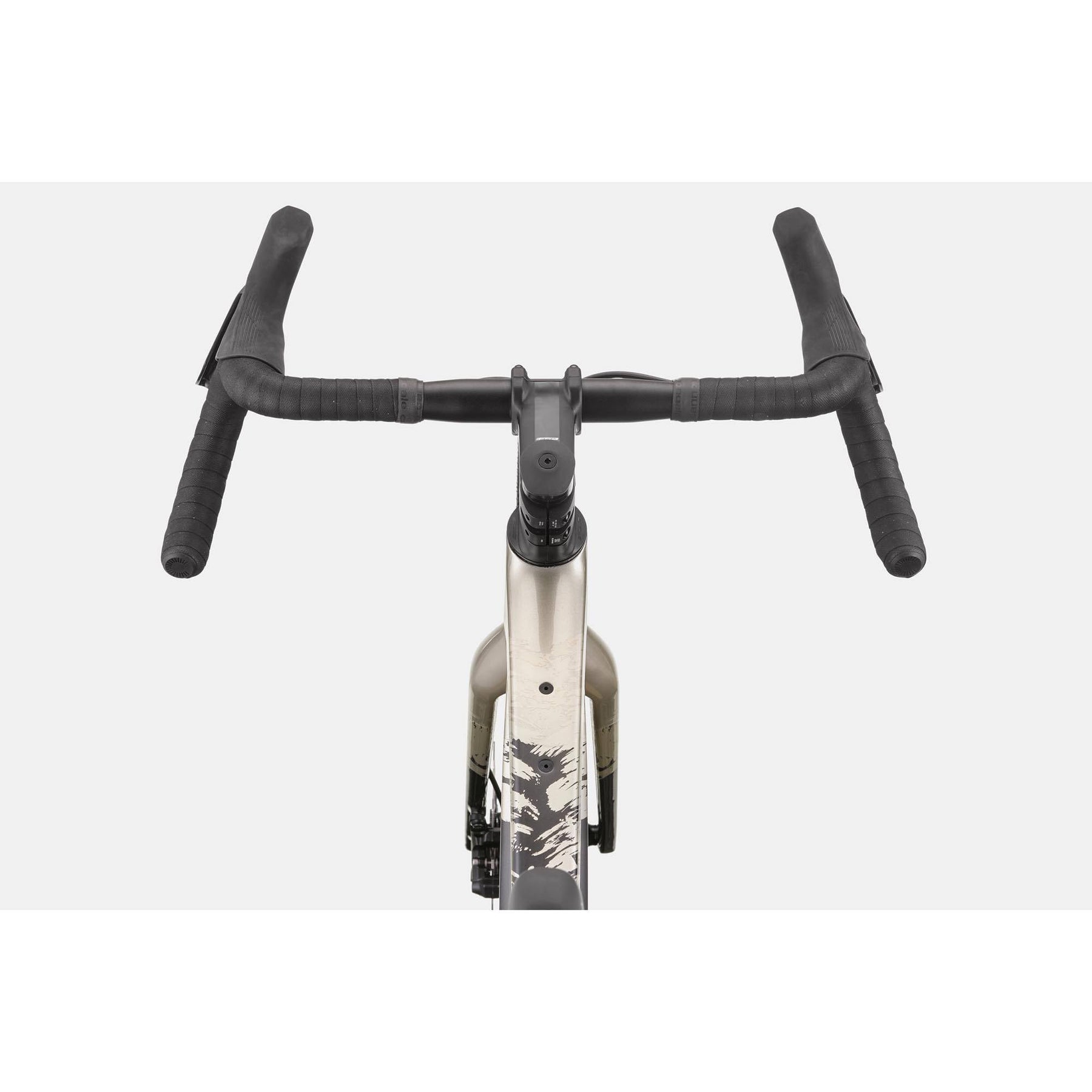

Handlebar: Cannondale 3, butted 6061 Alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54cm), 440mm (56-61cm)
Stem: Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51cm), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
Bar tape: Cannondale KnurlCork, 2.7mm
Saddle: Selle Royal SRX Open, 148mm
Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm

Extras

Included: Large StashBag downtube storage bag, tubeless valves

Cannondale Topstone Carbon geometry diagram

Size	47cm	51cm	54cm	56cm	58cm	61cm
Stack (mm)	554	561	579	597	615	646
Reach (mm)	364	373	378	383	389	397
Seat tube length (mm)	410	446	482	518	554	590
Top tube (effective) (mm)	532	543	554	564	576	593
Head tube length (mm)	97	101	123	142	164	196
Head tube angle (°)	69.9	70.7	70.7	70.7	70.7	70.7
Seat tube angle (°)	73.1	73.1	73.1	73.1	73.1	73.1
Chainstay length (mm)	420	420	420	420	420	420
BB drop (mm)	79	79	76	76	74	74
BB height (mm)	280	280	283	283	285	285
Wheelbase (mm)	1009	1012	1026	1036	1050	1069
Front centre (mm)	601	605	617	628	641	659
Fork length (mm)	429	429	429	429	429	429
Fork offset (mm)	55	55	55	55	55	55
Trail (mm)	73	67	67	67	67	67
Standover (mm)	716	741	772	800	831	864

Transcribed from Cannondale's published geometry chart (shown above) and converted from cm to mm.

Free UK shipping available on all orders, excluding bikes, wheelsets and packages over 10kg in weight e.g. turbo trainers.

Rider on a Cannondale Topstone Carbon on a rough gravel track

Smoother Ride, Swifter Pace

KingPin rear suspension brings rough-stuff-smoothing comfort to gravel like nothing else, taking the sting out of ruts, roots and rocks.

More confidence and more control mean getting somewhere new a whole lot quicker. If you thought suspension was just for mountain bikes, think again.

Rider on a Cannondale Topstone Carbon on a cypress-lined gravel road

Easy to Live With

Everything on Topstone Carbon is there for simplicity and compatibility: a threaded bottom bracket, a standard external seat binder and low-maintenance suspension.

Less time in the workshop, more time riding.

Rider with a bikepacking-loaded Cannondale Topstone Carbon

Bring It All

Designed to move and built to carry. StashPort downtube storage keeps tools and essentials secure inside the frame.

Multiple mounting points for bags, bottles and racks make Topstone Carbon a superb bikepacking rig.

Cannondale Topstone Carbon ridden through autumn leaves

Guaranteed Awesomeness

Cannondale torture-tests Topstone Carbon and hands it to its pro athletes to use, abuse and critique.

Only then is it ready – and it comes with a lifetime frame warranty for complete peace of mind.
